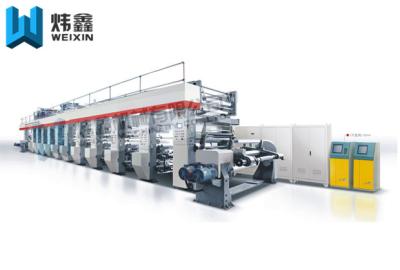

Web Video Option Rotogravure Printing Machine Computerized Multi Colors
Web Video Option Rotogravure Printing Machine Computerized Multi Colors
Specifications
Brand Name :
WEIXIN
Model Number :
WX
Certification :
CE/ISO9001
Place of Origin :
Zhejiang,China(Mainland)
MOQ :
1 SET
Price :
Negotiation
Supply Ability :
20 Set/Sets Per Month
Delivery Time :
50 Working Days
Packaging Details :
Wooden Case
Usage :
film and paper in roll
Automatic grade :
automatic
Color & Page :
multicolor
Unwind & Rewind :
Non-stop
Plate Type :
gravure
Gross Power :
109KW/136KW/160.5KW
Motors :
seven motors control
Touch Screen :
Taiwan
Warranty :
12 month
After-sales Service :
engineers available to service machinery overseas
Description

BOPP Film Roll Computerized Multi Color Register Rotogravure Press

Application

Our WX-E gravure printing machine has the longest drying oven of all Weixin series presses. The maximum speed is 230m/min, allowing this printing press to handle large print runs. Better yet, this product is installed with 7 motors. Its gear can offer extremely good rigidity and ultra high rotation accuracy.

Product Feature

1. Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of
color register quickly and accurately.
2. Main motor with inverter speed control.
3. Turret un/rewinding section, non-stop material splicing.
4. Unwinding and in-feed section with inverter speed control system and close loop tension control system.
5. Rewinding and out-feed section with inverter speed control system and close loop tension control system.
6. Closed oven and independent heating hot air blowing system, automatic constant temperature system.
7. Pneumatic impressing system and pneumatic doctor blade system
8. Diaphragm-type pneumatic ink auto circulating system
9. Inflatable air shaft for unwinding / rewinding material loading
10. Printing linear speed and meter counting display
11. Shaft less printing cylinder loading device, printing cylinder is fixed by shaft-less air chuck.
12. Option: Web video
Technical Parameters
Model WX-8850E WX-81050E WX-81250E
Max. Width of Substrate 850mm 1050mm 1250mm
Max. Printing Speed 250m/min 250m/min 250m/min
Max. Unwind-Rewind Diameter 800mm 800mm 800mm
Internal Diameter of Roll Core of Substrate 76mm 76mm 76mm
Diameter of Gravure Cylinder 180-380mm 180-380mm 180-380mm
Register Accuracy ±0.1mm ±0.1mm ±0.1mm
Tension Range 3-25kg 3-25kg 3-25kg
Heating Power of Drying Oven 216kW 243kW 270kW
Total Power 304kW 335kW 365kW
Weight Approx. 40500kg Approx. 42000kg Approx. 43500kg
Overall Dimension (L*W*H) 21000*4600*4200mm 21200*4800*4200mm 21200*4500*4200mm
