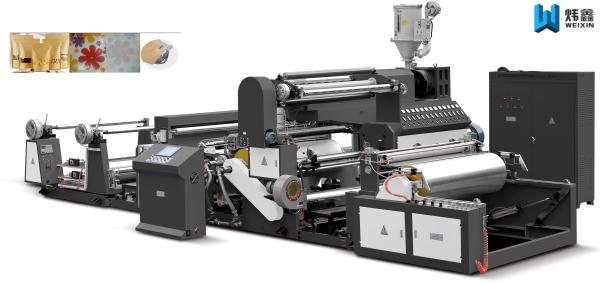

PLC Control Woven Sack Lamination Machine For Non Woven Fabric PE / PP
PLC Control Woven Sack Lamination Machine For Non Woven Fabric PE / PP
PLC Control Woven Sack Lamination Machine For Non Woven Fabric PE / PP
PLC Control Woven Sack Lamination Machine For Non Woven Fabric PE / PP
PLC Control Woven Sack Lamination Machine For Non Woven Fabric PE / PP
PLC Control Woven Sack Lamination Machine For Non Woven Fabric PE / PP
Specifications
Brand Name :
WEIXIN
Model Number :
WX-M1300
Certification :
CE/ISO9001
Place of Origin :
Zhejiang,China（Mainland）
MOQ :
1 SET
Price :
Negotiation
Supply Ability :
20 Set/Sets Per Month
Delivery Time :
45 Working Days
Packaging Details :
Wooden Case
Product Name :
Non woven coating and lamination machine
Automatic Grade :
Automatic
Extrusion Die Width :
1200mm
Unwinding Roller Diameter :
1200mm
Max.Coating Speed :
150m/min
Max.Web Width :
1300mm
L/D ratio for screw :
32:1
Max extrusion :
260kg/h
Total Power :
130 KW
Working Power :
70-80 KW
Chiling Roller :
Matt /Glossy /Embossing roller
Control Mode :
PLC Control
Description

High Quality Non Woven Fabric PE / PP Coating Laminating Machine

Machine Procedure

Raw material feeding -> Automatic tension -> Corona equipment -> Composite extruding -> Compounding processing -> Cooling -> Rewinding

Product Sample

PLC Control Woven Sack Lamination Machine For Non Woven Fabric PE / PP

Features

Product features Of Extrusion laminating machine :
1.EPC STSTEM
2.CORONA TREATMENT
3.CHILLING ROLLER
4.PLC TOUCH SCREEN
5.TRIMING
6. AUTOMAT HYDRAULIC FILTER SCREEN CHANG DEVICE

Machine Technical Data

Applicable coating film resin
Coating grade like LDPE ,PP ,EVA,EAA etc
Based material
paper (35~425g/m2 ) , textile fibre ,non-woven fabric, Knited mesh, BOPP. BOPET .
Max working speed
100~150m/min
Max width of coating film
1200mm
Thickness of coating film
0.01–0.11mm
Inaccuracy thickness of coating film
±6%
Setting range of Auto-tension
10-200kg/entire width (constant tension)
Max extrusion
200KGS/H
Compound cooling roller
Φ510×1300mm (can choose)
Total power:
about 110 kw
Max rewinding diameter
Φ1300mm
Inside diameter of base material
Φ76
Machine total weight
about 15000kg
Overall dimension
9600mm×8000×3250mm(L×W×H)

Description of Units

1. Feeding equipment

(1) Double work-station bearing feeding frame

(2). Air expansion feeding shaft

(3). Effective width: 1250mm

(4). Max feeding diameter: Φ1300mm

(5). Inside diameter of base material : 3inch Φ76mm

(6). Max weight air-expansion shaft support: 2000kg

(7).Tension setting: 10-200kg

(8).Tension control accuracy: ±0.2kg

(9). Magnetic powder clutch

2. Extrusion and compounding equipment

(1). Three roller compounding mechanism, back pressing roller makes compounding roller to force evenly and compounding firmly.

(2). Peeling off silicone roller: compounding products peels off from cooling roller easily.

(3). Preheating inside before compounding to guarantee fastness and intensity of film compounding effectively.

(4). Compounding and filling regulating roller can overcome defects such as uneven of film thickness.

(5). Dise slitting knife edge-cutter: sharp knife edge

(6). High pressure blower sucks scrap edge quickly.

(7). Compounding and discharging eliciting roller.

(8). Compounding roller be drived by transducing electric motor independently.

(9). The motor drived compounding roller be controled by frequecy changer.

(10). Rewinding equipment adopts cylinder to switch automatic.
