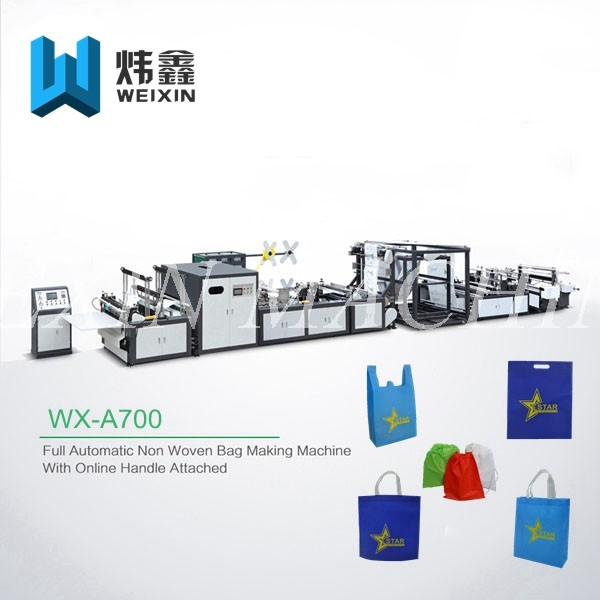

Multifunction Non Woven Loop Handle Bag Making Machine Full Automatic
Multifunction Non Woven Loop Handle Bag Making Machine Full Automatic
Multifunction Non Woven Loop Handle Bag Making Machine Full Automatic
Multifunction Non Woven Loop Handle Bag Making Machine Full Automatic
Specifications
Brand Name :
WEIXIN
Model Number :
WX-B800
Certification :
CE/ISO9001
Place of Origin :
Zhejiang,China(Mainland)
MOQ :
1 SET
Price :
Negotiation
Supply Ability :
30 Sets/Month
Delivery Time :
30 working days
Packaging Details :
Shrink film and wooden case packing
Bag height :
200-680mm
Bag width :
100-800mm
Power supply :
220V 50Hz
Total power :
13KW
Overall size :
L 10000* W 2700* H 2000mm
Handle length :
380-600mm
Max Gusset :
180mm
After Sales Service :
Engineers Available to Service Machinery Overseas
Description

Multifunction Full Automatic Non Woven Loop Handle Bag Making Machine

Machine Technical Data

SN Item Specification
1 Roller width 1450mm
2 Bag making speed 40-100pcs/min
3 Bag length 100-800mm
4 Bag Height 200-680mm
5 Max Gusset 180mm
6 Power supply 220V 50Hz
7 Total power 13KW
8 Rated power 13KW
9 Overall size L 10000* W 2700* H 2000mm
10 Weight of Machine 3800KGS (40HQ*1)
11 Handle length 380-600mm
12 Handle width 25-30mm

Properties

1. It can produce difficult kinds of bags with loops online by automatic.

It can greatly save the labor, but improving production efficiency.


2. handle bags, D-cut bag, box bag, rope bag, t-shirt bag.

It is the latest muti-machine at present market!


3. This non-woven bag making machine is a collection with mechanical and electrical,

using LCD touch screen operation.


4. Match with stepping type length setting, adopting two Taiwan brand stepping motors for feeding and pulling,

Make the bags more exactly, photoelectric tracking, computer automatic positioning,


5. Computer automatic struggle edge, automatic counting and setting automatic alarm, with automatic punching.

This is your High quality environmental protection bag making machine.
