Eco-Friendly Automatic Non Woven Bag Making Machine /CE Standard And High Speed

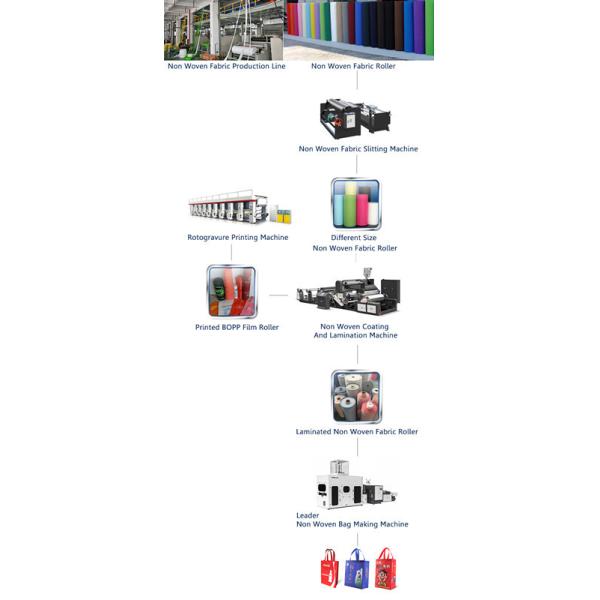

We are involved in offering Non Woven Bag Making Machine that is mainly used for the non woven of loop handle bags ,box bags,d cut bag and Vest bags;We delicated in supply the turnkey solution in nonwoven packing project, from nonwoven fabric making machine to nonwoven bag making machine. We keep making improvement and innovation to our machine targeting to make top nonwoven packing material.Wenzhou Wexin Machinery is a manufacturer and suppier integrated with development,production,marketing and provide one-stop service ,we collect all the knowledge and resource to service our customer with complete solutions.
We are looking forward to become your partner in non woven bag & fabric making project,for any questions, we are at your disposal.
1.Leader is newly researched and developed on 2014, patent No.: 201420080547.2
2.Leader is concentrated in Non woven box bag manufacturing,use nonwoven fabric and nonwoven laminated fabric as raw material.
3.Leader can perform good with few labour,higher efficient&lower cost, it’s the most competitive machine in nonwoven bag making.
4.Nonwoven bag have more advantages when compare with nonwoven sewing bag and paper bag.
1.Ultrasonics own production,72 hrs destructive inspection.
2. Independent R&D Centre and CNC production
3. Automatic feeding deviation rectifying device. Machine adopts motor for stable feeding and photocell for deviation rectifying. It will stop automatically without fabric.
4. Tracking & Creasing Device for color tracking and side creasing.
5. Operation Panel. Computer control,automatic feeding and counting.
6. Double Servo Motor(Delta Taiwan) Material Drawing Device. Double servo motor can adjust the level of fabric and die, in order to control the uniformity of bag mouth and increase machine speed.
SN | Item | Specification |
1 | Roller width | 50-1150mm |
2 | Bag making speed | 60pcs/min |
3 | Bag length | 180-450mm |
4 | Bag width | 240-500mm |
5 | Gusset | 90-200mm |
6 | Power supply | 380V |
7 | Total power | 40KW-60KW |
8 | Rated power | 8KW-10KW |
9 | Overall size | L 9000* W 4000* H 2500mm |
10 | Weight of Machine | 9000KGS (40HQ*1) |
