Automatic Multi-function Non Woven Fabric Handle Bag Making Machine Project Report

Use and Features

This machine is focused on the production of the laminated, coated and uncoated three-dimensional box bags with handle attachment.

Leader directly forms Non Woven Box Bag with loop handle automatically in one shot, no need to reverse to get finished box bag.

It is a fully automatic bag making machine, which can take place of 50 workers’ work. These bags are highly economical with very low production cost. It only needs two person, thus the labour force cost is largely saved.

Leader alone can serve with box bag making machine, bag making machine with handle and also laminated box bag making machine itself. It can produce over 50GSM non woven fabric and laminated fabric bags, such as food & beverage bags, wine bags, commodity bags, sweets bag, garment bags, shoes & hats bags, gift bags, etc.

This non-woven bag producing machine with the best competitive advantage in the market. The bag manufactured through this machine can take weight up-to 20 kg.

Main Advantage

1. Main motor with frequency conversion(made in Shanghai), speed can be adjusted

2. Micro-computer controlled stepping motor

3. Pneumatic shaft axis

4. EPC(edge position control) controls material running

5. Side-folding,heating with electrical temperature-controlled

6. Material half-fold,with EPC control

7. Tachometer shows as the material runs

8. Adjusted lever with air cylinder tension control

9. Ultrasonic made in own factory

10. Photocell tracks the printing material

Technical Specification

• Speed: 50-70 PCS/MIN
• Bag size and handle: Bag gusset 80-200mm,Bag width 210-500mm,Bag height 220-450mm,Handle length 370-550mm
• Fabric requirement: Handle thickness 60-120 gsm, Bag thickness 80-120 gsm
• Total power and voltage requirement: Air power 1.2m3/min, 1.0Mpa Voltage 380V, 50Hz,3Phase
• Total power: 38KW
• Overall Size 8500x6500x2600mm

Free Spare Parts

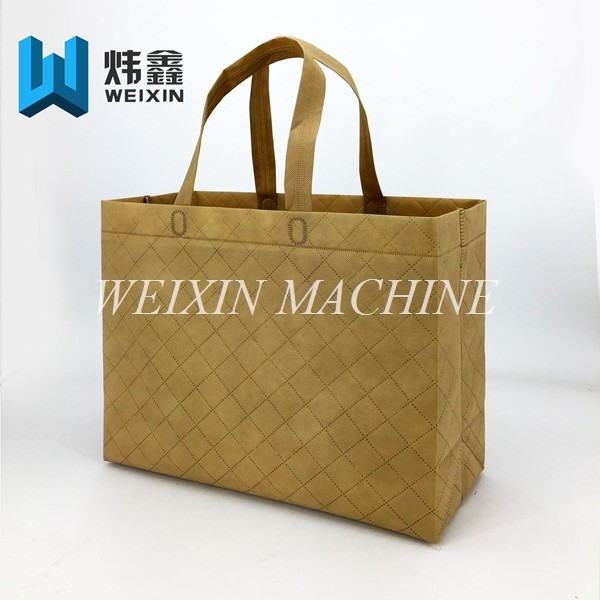

Bag Sample
