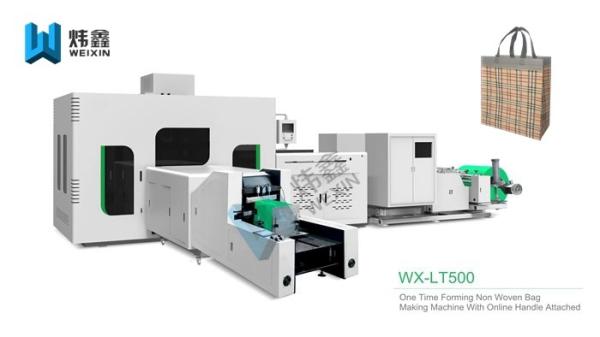

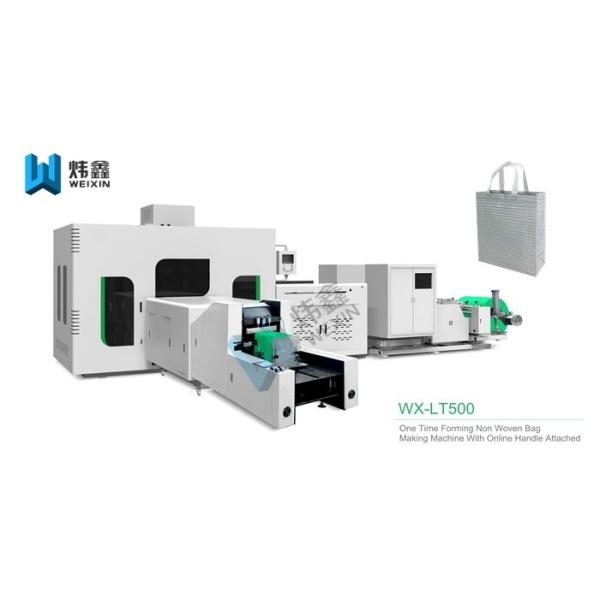

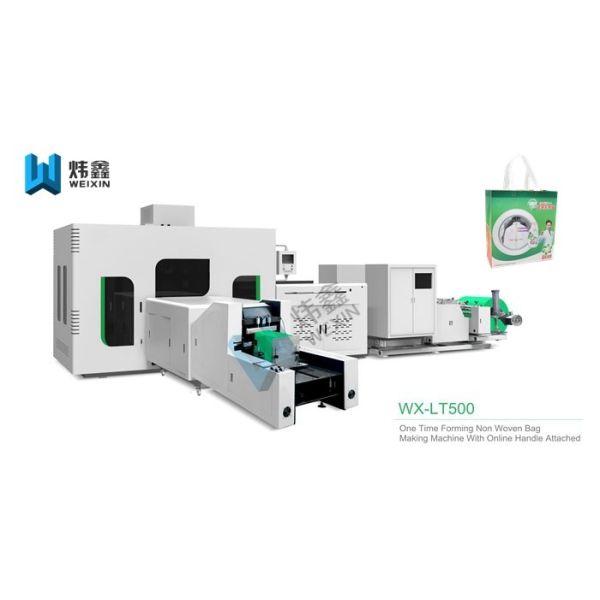

Ultrasonic Non Woven Carry Bags Manufacturing Machine With Online Handle Attach
Ultrasonic Non Woven Carry Bags Manufacturing Machine With Online Handle Attach
Ultrasonic Non Woven Carry Bags Manufacturing Machine With Online Handle Attach
Ultrasonic Non Woven Carry Bags Manufacturing Machine With Online Handle Attach
Ultrasonic Non Woven Carry Bags Manufacturing Machine With Online Handle Attach
Ultrasonic Non Woven Carry Bags Manufacturing Machine With Online Handle Attach
Specifications
Brand Name :
WEIXIN
Model Number :
WX-LT500
Certification :
CE
Place of Origin :
Zhejiang,China(Mainland)
MOQ :
1 SET
Price :
Negotiation
Supply Ability :
30 Set/Sets Per Month
Delivery Time :
30 working days
Packaging Details :
wooden case, package,skrink film packing
Bag Process :
One Time Forming Ultrasonics
Warranty :
one year
After Sales Service :
Engineer Available to Service
Weight :
9500 Kgs
Speed :
70 PCS/MIN
MACHINE :
New Automatic Bag Collect
Mould :
New Smart Mould
bag tension :
20kg
Main motor :
frequency conversion, speed can be adjusted
Description

non woven carry bag ultrasonic non woven bag making machine/High production speed and eco-friendly

Main Specification of The Machine

  • Bag size and handle: Bag gusset 8-20 cm,Bag length 21-50 cm,Bag height 22-45cm,Handle length 37-55 cm
  • Fabric requirement: Handle thickness 60-120 gsm, Bag thickness 80-120 gsm
  • Total power and voltage requirement: Air power 1.2m3/min, 1.0Mpa Voltage 380V, 50Hz, 3Phase
  • Total power: 38KW
  • Motor : 7 sets servo motor delta Taiwan
  • PLC : Delta ,Taiwan
  • Host Motion Controller TRIO ,BRITAIN

Use and Features

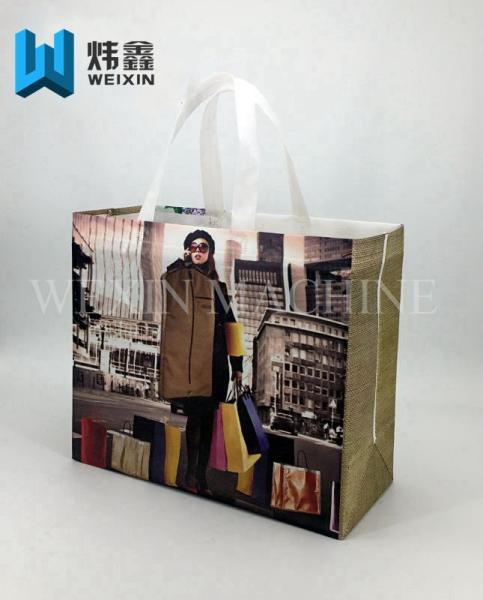

This machine is focused on the production of the laminated, coated and uncoated three-dimensional box bags with handle attachment.

Leader directly forms Non Woven Box Bag with loop handle automatically in one shot, no need to reverse to get finished box bag.

It is a fully automatic bag making machine, which can take place of 50 workers’ work. These bags are highly economical with very low production cost. It only needs two person, thus the labour force cost is largely saved.

Leader alone can serve with box bag making machine, bag making machine with handle and also laminated box bag making machine itself. It can produce over 50GSM non woven fabric and laminated fabric bags, such as food & beverage bags, wine bags, commodity bags, sweets bag, garment bags, shoes & hats bags, gift bags, etc.

Main Advantage

1. Micro-computer controlled stepping motor

2. Pneumatic shaft axis

3. EPC(edge position control) controls material running

4. Side-folding,heating with electrical temperature-controlled

5. Material half-fold,with EPC control

6. Tachometer shows as the material runs

7. Adjusted lever with air cylinder tension control

8. Ultrasonic made in own factory


Ultrasonic Non Woven Carry Bags Manufacturing Machine With Online Handle AttachUltrasonic Non Woven Carry Bags Manufacturing Machine With Online Handle Attach

Ultrasonic Non Woven Carry Bags Manufacturing Machine With Online Handle AttachUltrasonic Non Woven Carry Bags Manufacturing Machine With Online Handle Attach
