Plastic Laminated Non Woven Box Bag Making Machine With Online Handle Attach
Plastic Laminated Non Woven Box Bag Making Machine With Online Handle Attach
Plastic Laminated Non Woven Box Bag Making Machine With Online Handle Attach
Plastic Laminated Non Woven Box Bag Making Machine With Online Handle Attach
Plastic Laminated Non Woven Box Bag Making Machine With Online Handle Attach
Plastic Laminated Non Woven Box Bag Making Machine With Online Handle Attach
Plastic Laminated Non Woven Box Bag Making Machine With Online Handle Attach
Plastic Laminated Non Woven Box Bag Making Machine With Online Handle Attach
Specifications
Brand Name :
WEIXIN
Model Number :
WX-LT500
Certification :
CE
Place of Origin :
Zhejiang,China(Mainland)
MOQ :
1 SET
Price :
Negotiation
Supply Ability :
30 Set/Sets per month
Delivery Time :
30 working days
Packaging Details :
Wooden case
Product name :
Non woven box bag making machine
Plc control :
Delta,Taiwan
Bag side tear :
0.305KN
Bag vertical Tear :
0.300KN
Bag width :
210-500mm
Bag height :
220-450mm
Bag Gusset :
80-200mm
Operation mode :
LCD Touch screen
Description

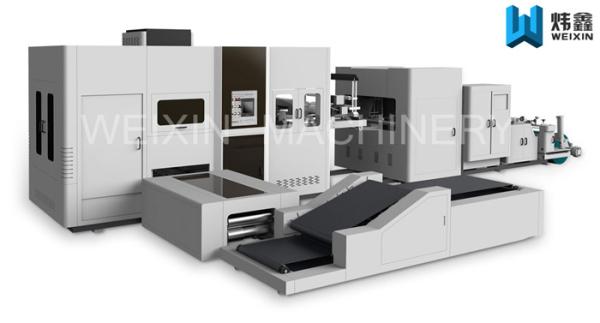

High Quality Automatic Non Woven Box Bag Making Machine

Advantage

The 11th One Time Forming Non Woven Box Bag Making Machine is our 2018 new design, is suitable for Laminated PP non woven fabric, Non-laminated PP non woven fabric, Aluminum film non woven fabric, Glitter film non woven fabric, Laser film non woven fabric, etc. It using non woven fabric roller to produce non woven box bag automaticlly.

11th Latest design Non woven box bag making machine advantage
1 Photoelectric Eye for correcting deviation automatic adjust
2 Bag Mouth Sealing Device Automatic Adjust
3 Online Creasing Device Position & Creasing Distance Automatic Adjust
4
Bag Width Adjusting Shelf DeviceAutomatic Adjust
5

Strike-slip Dislocation Cutter each cut save 6mm fabric
6

Independent Ultrasonic Hot Sealing Double Push Device
7 Photoelectric Eye for correcting deviation automatic adjust (after cutting)

Main Technical Parameters

Type
Standard
Bag Capacity
50-70 pcs/min
Speed depends on bag size
Bag Length
210-500 mm
Bag Height
220-450 mm
There is a one-to-one mapping between Bag Height and Bag Gusset
Bag Gusset
80-200 mm
Power Supply
380V 50HZ
Total Power
38KW
Machine Size
8500X6600X2600MM

Professional Pre-Sales Service & After Sales Service

Pre-Sales Service After Sales Service
Inquiry and Consulting support Independant Service with 24 Senior Engineers
latest industry trends 12 month warranty
Provide bag making machine whole solution Machine test video and packing picture before loading
Sample testing support or send sample by courier English Manual ,Electric Diagram
Invite View our factory Customer engineer training in our factory within one month
Suggest factory layout support Engineers Available to service machinery overseas
Provide professional final solution whatsapp & Wechat group take care service by 24 hrs
Engineers Available to Maintance machine after one year
Sales People Service door to door after installation

Bag Sample

Plastic Laminated Non Woven Box Bag Making Machine With Online Handle Attach
