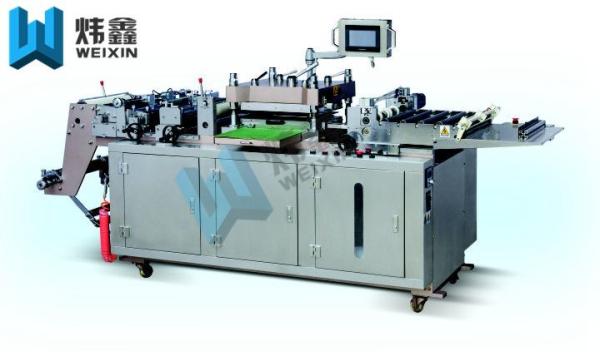

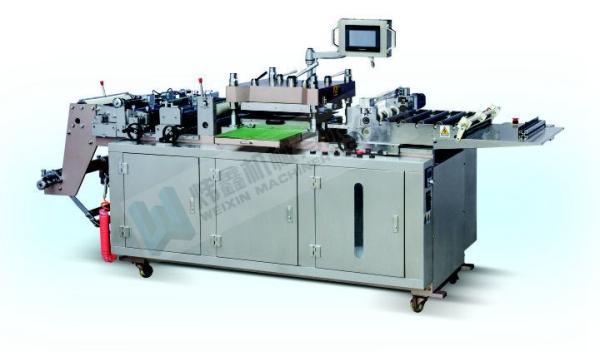

Paper Adhesive Label Roller Die Cutting Machine High Speed 3040×1200×1500mm
Paper Adhesive Label Roller Die Cutting Machine High Speed 3040×1200×1500mm
Paper Adhesive Label Roller Die Cutting Machine High Speed 3040×1200×1500mm
Paper Adhesive Label Roller Die Cutting Machine High Speed 3040×1200×1500mm
Specifications
Brand Name :
WEIXIN
Model Number :
WXM
Certification :
CE/ISO9001
Place of Origin :
Zhejiang,China(Mainland)
MOQ :
1 SET
Price :
Negotiation
Supply Ability :
30 Set per month
Delivery Time :
40 Working days
Packaging Details :
Wooden case
Type :
Rotary Die cutting machine
Max.Cutting Speed :
30-150 Pcs/min
Max.Web.Width :
420mm
Max.Die Cutting Width :
400mm
Max.Die Cutting length :
400mm
Voltage :
380v+10%
Weight :
1900kg
Overall Dimension :
3040×1200×1500mm
Description

High Speed Paper Rotary Adhesive Label Roll Die Cutting Machine

Technical Parameters

Model 420
Cutting Speed 30-150/Min
Max Unwind Diameter 700mm
Max Web Width 420mm
Min Full cut product 35mm
Max die Cutting width 400mm
Max die cutting Length 400mm
Positioning Precision +0.10m
Total Power 4kw
Supply Voltage Three Phase 380v+10%
Weight 1900kg
Overall Dimension 3040×1200×1500mm

Specification

Name Quantity Model Remarks
frequency converter 1 Schneider 4kw
Servo motor 1 Yaskawa Japanese
Touch Screen 1 Weinview 7 inch Taiwan
PLC 1 Mitsubishi Japanese
photoelectric tracking 1 Baideli
Photoelectric correction 2 Baideli
Actuators 1 Huaguang 2.5
Cluth 1 Huaguang 1.5
adjustable-speed motor 1 Maili
DC motor 1 SOK

Description


Die cutting machine, die cutter machine, die cutter.

Label die cutting machine, die cutter, punching machine

Die cutting machine

Die cutter

Die cutting machine

Flat die cutting machine

Die mould machine

Hot stamping

Feature

This machine is applicable to die cut through platenwith high precision, while the computer controls the slices and conveyor. The sides of trademarks and longitudinal route are tracked through three photoelectric eyes to position, while the die cutting, discarded delivery or auto trademark labeling can be finished in the processing of one web. The machine is applicable to die cut paper self adhesive trademark, Dacron film trademark and laser anti-false trademark. It is an ideal complete set of soft printing machine, continuous thread printing machine, relief printing machine and die compress machine for anti-false trademarks.

Product tags

sticker printer cutter machine

,

cutter sticker printer machine

,

rotary label die cutting machine
