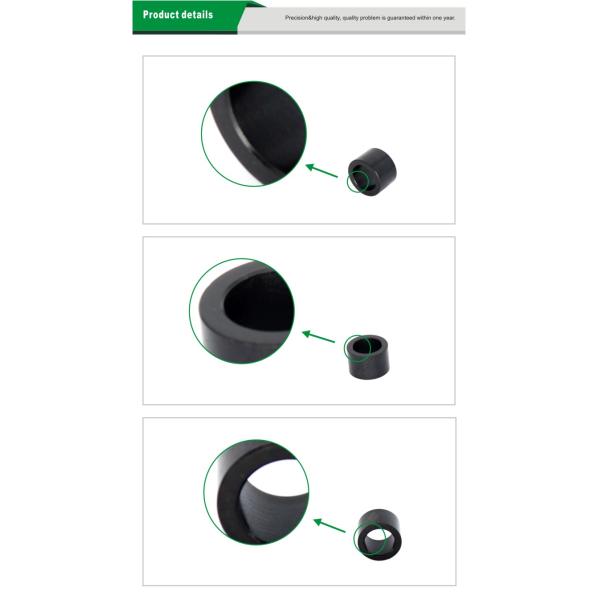

High Precision Non Metallic Fasteners , Small Tolerance Plastic Bushing Sleeve
High Precision Non Metallic Fasteners , Small Tolerance Plastic Bushing Sleeve
High Precision Non Metallic Fasteners , Small Tolerance Plastic Bushing Sleeve
High Precision Non Metallic Fasteners , Small Tolerance Plastic Bushing Sleeve
High Precision Non Metallic Fasteners , Small Tolerance Plastic Bushing Sleeve
High Precision Non Metallic Fasteners , Small Tolerance Plastic Bushing Sleeve
Specifications
Brand Name :
JESENTECH
Model Number :
Non Standard Customization
Certification :
IATF 16949:2016
Place of Origin :
Shenzhen CHINA
MOQ :
1-5 PIECES
Price :
Negotiated price
Payment Terms :
T/T, L/C, Western Union,Paypal etc.
Supply Ability :
3750000 pieces/Month
Delivery Time :
3-7 days
Packaging Details :
General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)
Application :
automation equipment
Material :
customized
Finishing :
Electroless nickel plating
Standard :
IATF16949:2016
Size :
as your request
MOQ :
1-5 Pieces
Lead Time :
3-7 days
Description

High precision Small tolerance Non metallic Bushing sleeve fasteners for automation equipment

Function of bushing

The flexibility of the bush is more flexible, and it can do a lot of work, and in general, the bushing is a kind of component that protects the device. The use of bushing can reduce the wear, vibration and noise of the equipment, and has the effect of corrosion prevention. The use of bushing can also facilitate the maintenance of mechanical equipment, simplify the structure and manufacturing process of the equipment.

In the moving parts, because of friction and the wear and tear parts for a long time, when the clearance between the shaft and hole wear by a certain amount of time must be replacement parts, so the designers choose in design of low hardness, good abrasion resistance material for collar or bushing, thus reducing shaft and seat wear and tear, when the bushing or replace bushing wear to a certain extent, so that we can save for the cost of replacement of shaft or housing.

TypeMaterialSurface finishHardness
D size P6D size m6
BACFPKRBACFMKRSKS3/58~61HRC
BACFPKRNBACFMKRNSKS3Electroless nickel plating58~61HRC
BACFPCRBACFMCRSUS440C/50~55HRC
BACFPSBACFMSPU//

High Precision Non Metallic Fasteners , Small Tolerance Plastic Bushing Sleeve

TypeD toleranceP
designated unit is 0.01mm		L
designated unit is 0.1mm		Thickness(E)R
TypeD(p6)(m6)
<p6>5+0.02
+0.012		+0.012
+0.004		2.00~2.505.0~6.01.25~1.500.8
BACFPKR7+0.024
+0.015		+0.015
+0.006		2.00~3.505.0~8.01.75~2.50
BACFPKRN83.00~4.505.0~13.01
BACFPCR104.00~6.505.0~20.01.75~3.00
BACFPS12+0.029
+0.018		+0.018
+0.007		6.00~8.502.0
<m6>158.00～10.505.0~40.02.25~3.50
BACFMKR1810.00～12.502.75~4.00
BACFMKRN20+0.035
+0.022		 12.00～13.503.25~4.00
BACFMCR224.25~5.00
BACFMS2513.00～15.504.75~6.00
2615.00～16.504.75~5.50
3016.00～20.505.0~60.04.75~7.003
35+0.042
+0.026		+0.025
+0.009		20.00～25.005.00~7.50

High Precision Non Metallic Fasteners , Small Tolerance Plastic Bushing Sleeve
