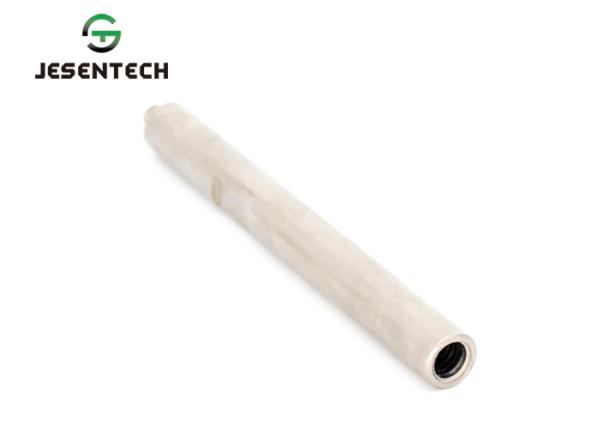

Industrial Automation Equipment Linear Motion Shaft , Small Tolerance Metal Fasteners
Industrial Automation Equipment Linear Motion Shaft , Small Tolerance Metal Fasteners
Industrial Automation Equipment Linear Motion Shaft , Small Tolerance Metal Fasteners
Industrial Automation Equipment Linear Motion Shaft , Small Tolerance Metal Fasteners
Specifications
Brand Name :
JESENTECH
Model Number :
Non standard customization
Certification :
IATF 16949:2016
Place of Origin :
Shenzhen CHINA
MOQ :
1-5 pieces
Price :
Negotiated price
Payment Terms :
T/T, L/C, Western Union,Paypal etc.
Supply Ability :
3850000 pieces/Month
Delivery Time :
3-7 days
Packaging Details :
General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)
Certifications :
IATF16949:2016
QC Control :
raw material incoming inspection and factory inspection before delivery
Size :
diameter 0.5mm-150mm ,length 0.5-2400mm
MOQ :
1 Piece acceptable
Lead time :
3-5 days or according your quantity
Tolerance :
customized
Hardness :
customized
Package :
PVC Bags+Shockproof cushion+Carton Box+Wood pallet
Material :
Stainless Steel/Carbon Steel or customized
Surface finish :
customized
Quality control :
incoming inspection and factory inspection during and after production
Description

Small tolerance Linear Motion Shaft easy to install for Industrial automation equipment

The precision classification of the guide shaft:
The guide axes are mainly divided into two categories according to their accuracy: ordinary level and precision level:
The difference between the normal grade and the precision grade is the difference in the perpendicularity of the thread and the end face and the reference plane; the processing equipment and the measuring equipment are different. Verticality: is the position tolerance, which is indicated by a symbol. Meaning: The percentage of tolerance that is produced when the theoretical correct angle is 90 degrees from the reference plane is called the perpendicularity tolerance. The actual shape of the part's surface is the variable allowed for its ideal position.

One end of the thread. One end internal thread with wrench grooves
Type Material Hardness Surface Treatment
Wrench groove type
PWPCR SUS440C
SUS440C high-frequency quenching 53HRC~~		 /
PWPCRG SUS440C hard chrome plating
Coating hardness HV750~
Coating thickness Above 3μm

Industrial Automation Equipment Linear Motion Shaft , Small Tolerance Metal Fasteners

Type D(g6) L Designated unit 1mm
Wrench groove type L F B
PWPCR
PWPCRG		 6 -0.004
-0.012		 25~598 2≤F≤Px5 (When P≤6)
B≤F-2
(When P=8 Or 10)
B≤F-3
(When P≥12)
B≤F-5
(Without thread)
B=0
B≥Thread pitch x3
8 -0.005
-0.014		 25~798
10
12 -0.006
-0.017		 25~998
13
15
16 25~1198
20 -0.007
-0.020

M(Coarse thread) N(Coarse thread) Wrench slot size R C (Y)
Max.
BS W e1
3,4,5,6 3

BS=Designated unit 1mm
BS+e1≤L
BS≥0

 5 8 0.3 0.5 600
3,4,5,6,8 3,4,5 7 800
4,5,6,8,10 3,4,5,6 8 800
5,6,8,10,12 4,5,6,8 10 10 1000
5,6,8,10,12 4,5,6,8 11 1000
5,6,8,10,12 4,5,6,8,10 13 1000
5,6,8,10,12,16 4,5,6,8,10 14 1.0 1200
6,8,10,12,16,20 4,5,6,8,10,12 17 1200

What is a guide shaft?

In the process of linear motion, its main function is to guide.

1. Precision classification of guide shaft

According to its precision, the guide shaft can be divided into two categories: ordinary and precision:

The difference between ordinary and precision grades is the difference between the verticality of the thread and the end face and the datum;The processing equipment and measuring equipment are different.

Perpendicularity: is the position tolerance, represented by the symbol perpendicular.

Definition: the percentage of tolerance that occurs when the theoretical correct Angle is 90 degrees from the datum level, is called the perpendicularity tolerance.The actual shape of the part surface is the variable allowed for its ideal position.

Industrial Automation Equipment Linear Motion Shaft , Small Tolerance Metal Fasteners
