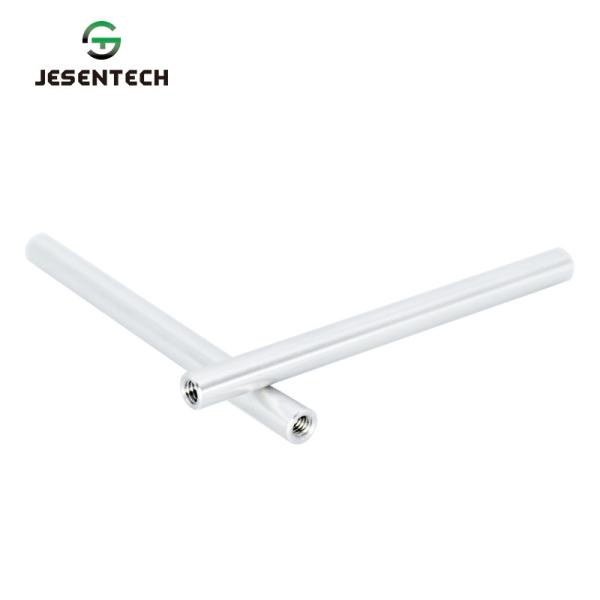

CNC Turning Machining Linear Motion Shaft For Industrial Automation Equipment
CNC Turning Machining Linear Motion Shaft For Industrial Automation Equipment
CNC Turning Machining Linear Motion Shaft For Industrial Automation Equipment
CNC Turning Machining Linear Motion Shaft For Industrial Automation Equipment
Specifications
Brand Name :
JESENTECH
Model Number :
Non standard customization
Certification :
IATF 16949:2016
Place of Origin :
Shenzhen CHINA
MOQ :
1-5 pieces
Price :
Negotiated price
Payment Terms :
T/T, L/C, Western Union,Paypal etc.
Supply Ability :
4200000 pieces/Month
Delivery Time :
3-5 days
Packaging Details :
General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)
Material :
Stainless Steel/Brass/Copper/Aluminum/Carbon Steel etc.
Surface treatment :
as your request
OEM :
acceptable
Certifications :
IATF16949:2016
QC Control :
100% inspection on critical dimension
Size :
As your drawing or samples
MOQ :
1-5 Pieces
Lead time :
3-5 days
Supply ability :
4200000pcs per month
Description

CNC turning machining Eco-friendly material low MOQ Linear Motion Shafts for Industrial automation equipment

What is a guide shaft?

In the process of linear motion, its main function is to guide.

The use of the guide shaft classification:

The guide shaft can be divided into a linear guide shaft for linear motion use, a rotary shaft for rotary use, and a bar for use as a support depending on the application.

1. The shaft used for linear motion is shown in the following figure. It is often used together with linear bearings, guide shaft bearings, and oil-free bushings. The linear guide shaft and the linear bearing are used to form a linear motion mechanism. When used in conjunction with a linear bearing, the heat treatment guide shaft with g6, h8, and h5 tolerances can be used. An unheated guide shaft with f8 tolerance can be used with oil-free bushings.

2. The shaft used for rotating purposes is shown below, mainly with bearings. Suitable for timing pulleys, couplings, etc.

Type Material Hardness
PESCR SUS440C
SUS440C high-frequency quenching 53HRC~~
PESCRG SUS440C

CNC Turning Machining Linear Motion Shaft For Industrial Automation Equipment

Type D(g6) L Designated unit type 1mm M,N coarse thread C
PESCR
PESCRG		 4 -0.004
-0.012		 25~200 2 0.2
5 25~300 2.6,3
6 3 0.5
8 -0.005
-0.014		 3,4,5
10 25~350 3,4,5,6
12 -0.006
-0.017		 4,5,6,8
13 4,5,6,8
15 4,5,6,8,10
16 4,5,6,8,10
20 -0.007
-0.020		 30~450 4,5,6,8,10,12 1

CNC Turning Machining Linear Motion Shaft For Industrial Automation EquipmentCNC Turning Machining Linear Motion Shaft For Industrial Automation Equipment
