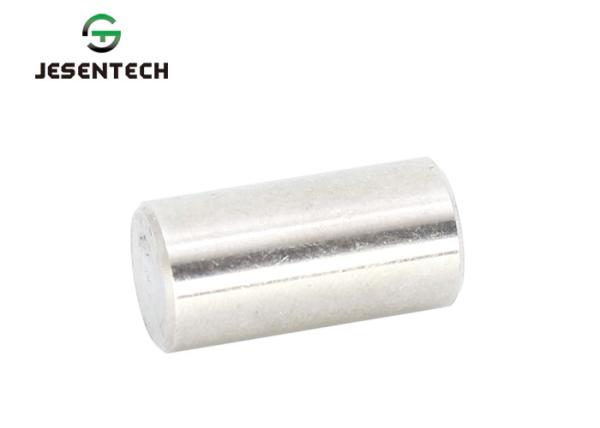

C Chamfered Cylindrical Dowel Pin , Custom 316 Stainless Steel Dowel Pins
C Chamfered Cylindrical Dowel Pin , Custom 316 Stainless Steel Dowel Pins
C Chamfered Cylindrical Dowel Pin , Custom 316 Stainless Steel Dowel Pins
C Chamfered Cylindrical Dowel Pin , Custom 316 Stainless Steel Dowel Pins
C Chamfered Cylindrical Dowel Pin , Custom 316 Stainless Steel Dowel Pins
C Chamfered Cylindrical Dowel Pin , Custom 316 Stainless Steel Dowel Pins
Specifications
Brand Name :
JESENTECH
Model Number :
Custom service
Certification :
IATF16949:2016
Place of Origin :
CHINA
MOQ :
1-5 pieces
Price :
Negotiated price
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
5000000 pieces/Month
Delivery Time :
3-5days
Packaging Details :
General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)
Material :
Materials can be customized & Eco-friendly material
Hardness :
customized
MOQ :
1-5 Pieces
Service :
Customization
Tolerance :
±0.002mm or customized
Application :
automation equipment
Lead Time :
3-5days
Size :
as your request
Main processing equipment: :
Automatic Lathe, CNC and BNC machine
Certificate: :
IATF16949:2016 & ROHS
Supply ability :
5000000pcs per month
Description

Custom service low MOQ SUS316 stainless steel cylindrical dowel pin both end C chamfered for automatic equipment

The locating pin is mainly used to fasten the screws between the two parts to ensure the position accuracy.Mainly used for assembly positioning, also can be used for connection, release level safety device overload shear connection.The basic forms are cylindrical and conical pins.

Locating pin is divided into cylindrical pin and circular pin

1, Different processing.Cylindrical pin can be pre machined, conical pin is usually prepared.

2, cylindrical pin is often used to accurately locate the state (processing), taper pin is often used for frequent disassembly.

3, cylindrical pin can play a role in anti-shear, conical pin is often used for positioning.

Two sided C chamfered straight rod type
Type Material Hardness
AICCR SUS440C 53HRC~
AICS SUS303 /

C Chamfered Cylindrical Dowel Pin , Custom 316 Stainless Steel Dowel Pins

MODEL D-Tolerance selection D L
Designated unit-1mm		 C
h7
0
-0.010		 2 6,8,10,12,15 Below 0.3
( h7 Tolerance ) 3 6,8,10,12,15,20
AICCR 0
-0.012		 4 8,10,12,15,20
AICS 5 8,10,12,15,20
6 10,12,15,20 0.5
0
-0.015		 8 15,20

C Chamfered Cylindrical Dowel Pin , Custom 316 Stainless Steel Dowel Pins
