Mold Making Use 304 Stainless Steel Dowel Pins Custom Service Available
Mold Making Use 304 Stainless Steel Dowel Pins Custom Service Available
Mold Making Use 304 Stainless Steel Dowel Pins Custom Service Available
Mold Making Use 304 Stainless Steel Dowel Pins Custom Service Available
Mold Making Use 304 Stainless Steel Dowel Pins Custom Service Available
Mold Making Use 304 Stainless Steel Dowel Pins Custom Service Available
Specifications
Brand Name :
JESENTECH
Model Number :
Non-standard custom service
Certification :
IATF16949:2016
Place of Origin :
Shenzhen CHINA
MOQ :
1-5 pieces
Price :
negotiated price
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
1000000 pieces/Month
Delivery Time :
3-10days
Packaging Details :
General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)
Material :
SUS303/304/316Stainless Steel,SKD11 etc.
Hardness :
35~40HRC or 55HRC~
MOQ :
1-5
Service :
Customized
Tolerance :
as your requirements
Product Name :
precision Locating Pins
Application :
Welding Jigs & Fixtures
Lead Time :
3-7days
Size :
as your need
Main processing equipment: :
Automatic Lathe, CNC Machine and BNC machine
Certificate: :
IATF16949:2016,ROHS
Description

SUS304 Stainless Steel Custom service High precision Locating Pins for Mold making

Locating Pins-Alignment Concerns:

When working with and designing jigs or fixtures with locating pins, proper alignment is crucial to ensuring smooth operation and repeatable results. This episode will address a few of the most common solutions to alignment concerns for locating pins.
One of the biggest issues a new fixture designer encounters is binding of a part, where the way it is placed or removed from a pair of locating pins causes it to become stuck and out of alignment. This can lead to production line slow-downs, or in worse cases, “reject parts” due to improperly assembled or machined components.

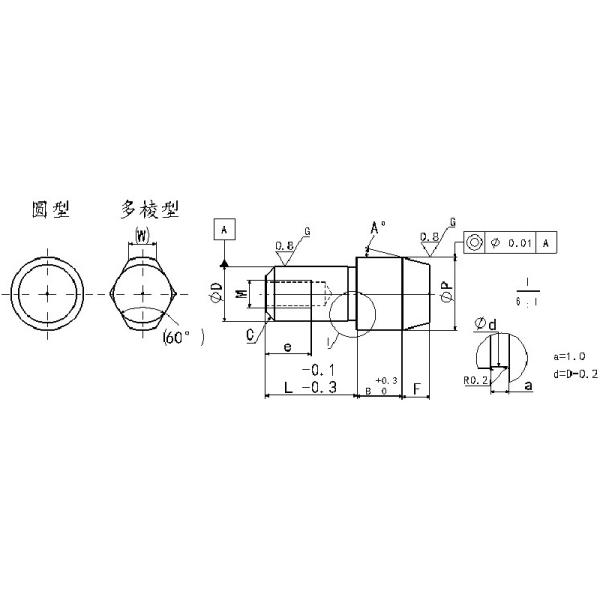

Type Material Finish Hardness
Round Type Row Type
JAUKR JAVKR SKS3 / 58~61HRC
JAUKRG JAVKRG SKS3 hard chrome plating 58~61HRC/coating hardness750HV
JAUCR JAVCR SUS440C / 53HRC~
JAUS JAVS SUS303 / /

Mold Making Use 304 Stainless Steel Dowel Pins Custom Service Available

D or P D,P tolerance choice
M P G H S
m6 p6 g6 h7 /
2.00-3.00 +0.008
+0.002		 +0.012
+0.006		 -0.002
-0.008		 0
-0.010		 0
-0.01
3.01-6.00 +0.012
+0.004		 +0.02
+0.012		 -0.004
-0.012		 0
-0.012
6.01-10.00 +0.015
+0.006		 +0.024
+0.015		 -0.005
-0.014		 0
-0.015
10.01-18.00 +0.018
+0.007		 +0.029
+0.018		 -0.006
-0.017		 0
-0.018
18.01-30.00 +0.021
+0.008		 +0.035
+0.022		 -0.007
-0.020		 0
-0.021

Type D
tolerance choice		 P
tolerance choice		 D P
designated unit 0.01mm		 L
designated unit 1mm		 B
designated unit 0.1mm		 F
designated unit 0.1mm		 A D M
coarse thread		 e (W)
Round Type Row Type Round Type Row Type
JAQKR JAQKRG JAQCR JAQS JAWKR JAWKRG JAWCR JAWS M
P
G
H		 M
P
G
H
S		 6 6.00~10.00 6~12 9~12 2.0~12.0 0.5~10.0 15
30
45
60		 6 M3 5 3
8 8.00~13.00 8~16 12~16 2.0~15.0 8 M5 8 3.5
8Z 6~16 8 M4 6 3.5
10 10.00~15.00 10~20 12~20 3.0~20.0 10 M5 8 4
10Z 6~16 12~16 10 M4 6 4
12 12.00~16.00 12~24 12~24 12 M5 8 5
12Z 8~18 12~18 12 M4 6 5
13 13.00~18.00 13~26 14~26 5.0~20.0 13 M8 10 5.5
13Z 8~20 14~20 13 M6 9 5.5
16 16.00~25.00 16~32 16~32 16 M8 12 7
16Z 10~24 14~24 16 M6 9 7
20 20.00~30.00 20~40 20~40 20 M8 12 9
20Z 12~30 18~30 20 M6 9 9
