Internal Threaded Precision Locating Pins , Custom 316 Stainless Steel Dowel Pins
Internal Threaded Precision Locating Pins , Custom 316 Stainless Steel Dowel Pins
Internal Threaded Precision Locating Pins , Custom 316 Stainless Steel Dowel Pins
Internal Threaded Precision Locating Pins , Custom 316 Stainless Steel Dowel Pins
Internal Threaded Precision Locating Pins , Custom 316 Stainless Steel Dowel Pins
Internal Threaded Precision Locating Pins , Custom 316 Stainless Steel Dowel Pins
Specifications
Brand Name :
JESENTECH
Model Number :
Custom service
Certification :
IATF16949:2016
Place of Origin :
CHINA
MOQ :
1-5 pieces
Price :
Negotiated price
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
2800000 pieces/Month
Delivery Time :
3-7days
Packaging Details :
General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)
Material :
SUS316F/SUS304/316L Stainless Steel,SKD11 etc.
Hardness :
35~40HRC or 55HRC~Or meet your needs
MOQ :
NO NEED
Service :
Customized
Tolerance :
Clients' requirements
Application :
automation equipment
Lead Time :
3-5days
Size :
According to your requirements
Main processing equipment: :
Automatic Lathe, CNC Machine and BNC machine
Certificate: :
IATF16949:2016 ROHS
Tolerance: :
±0.003mm
Description

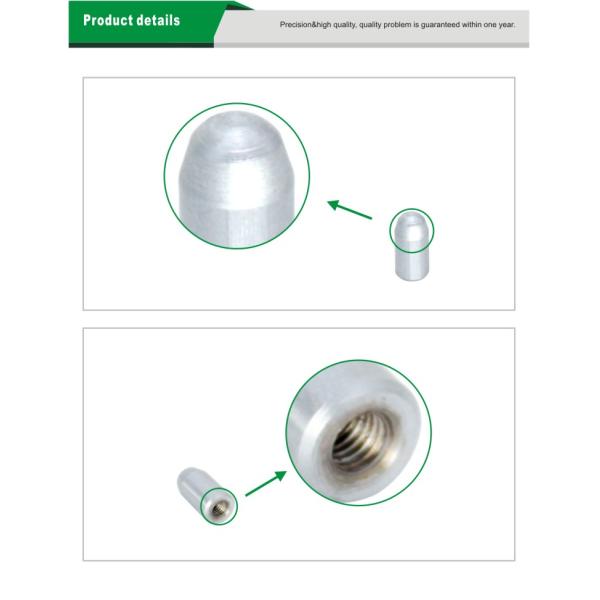

Customization of SUS316F Stainless Steel Round head internal thread type Locating Pins for Plastic Injection Mold

Introduction:

One of the most common ways of workholding is by location with reference to an external surface. This is also known as locating to a datum surface. Flat surfaces are commonly used for locating. However, there can be various types of locators depending on the application.

Locating Pin Method:

The most common method used for locating is with the help of locating pins. Locating pins are available in a variety of standard sizes and shapes depending on the application they are to be used in. For example a “diamond” head pin is used as a feature to help with the locating operation in situations with machining inaccuracies while a flat face with chamfered head style pin is used in applications with short strokes. The different kinds of pins available can be seen in the figure below.

Internal Threaded Precision Locating Pins , Custom 316 Stainless Steel Dowel Pins

When working with and designing jigs or fixtures with locating pins, proper alignment is crucial to ensuring smooth operation and repeatable results. This episode will address a few of the most common solutions to alignment concerns for locating pins.

One of the biggest issues a new fixture designer encounters is binding of a part, where the way it is placed or removed from a pair of locating pins causes it to become stuck and out of alignment. This can lead to production line slow-downs, or in worse cases, “reject parts” due to improperly assembled or machined components.

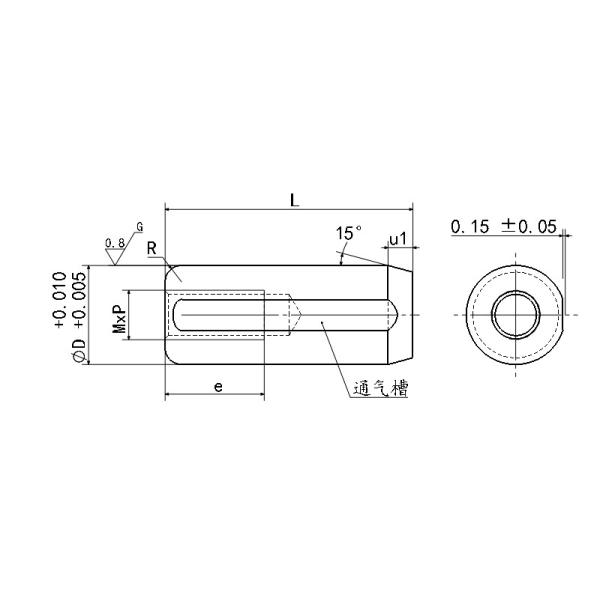

Type Material Hardness
AVBJR SUJ2 45~50HRC
AVBS SUS303 /

Internal Threaded Precision Locating Pins , Custom 316 Stainless Steel Dowel Pins

Type u1 L
designated unit 1mm		 M
coarse thread		 e
Model D
AVBJR 5 1.5 10,15,20,25,30 3X0.5 6
6 2 10,15,20,25,30,35,40,50 4X0.7 *8
8 15,20,25,30,35,40,45,50,60,70,80 5X0.8 10
10 2.5 15,20,25,30,35,40,45,50,60,70,80 6X1.0
12 20,30,40,50,60,70,80
13 40,50,60,70,80 8X1.25 15
16 3 40,50,60,70,80

Type u1 L
designated unit 1mm		 M
coarse thread		 e
Model D
AVBS 5 1.5 10,15,20 3X0.5 6
6 2 15,20,25,30 4X0.7 *8
8 15,20,25,30,35,40 5X0.8 10
10 2.5 20,25,30,35,40,45,50,60 6X1.0
12 30,40,50,60
13 30,40,50,60 8X1.25 15
