High Precision SUS304 Stainless Steel Dowel Pins Step Cone Type For Test Equipment
High Precision SUS304 Stainless Steel Dowel Pins Step Cone Type For Test Equipment
High Precision SUS304 Stainless Steel Dowel Pins Step Cone Type For Test Equipment
High Precision SUS304 Stainless Steel Dowel Pins Step Cone Type For Test Equipment
High Precision SUS304 Stainless Steel Dowel Pins Step Cone Type For Test Equipment
High Precision SUS304 Stainless Steel Dowel Pins Step Cone Type For Test Equipment
Specifications
Brand Name :
JESENTECH
Model Number :
customized
Certification :
IATF16949:2016
Place of Origin :
Shenzhen,CHINA
MOQ :
1-10 pieces
Price :
Negotiated price
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
1500000 pieces/Month
Delivery Time :
3-5days
Packaging Details :
General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)
Material :
SUS316F/304/303 Stainless Steel SKD11 etc.
Hardness :
According to your requirements
MOQ :
NONE
Service :
Customized
Tolerance :
Clients' requirements
Application :
Welding Jigs and Fixtures and Automation equipment
Lead Time :
3-5days
Size :
Customized
Main processing equipment: :
Automatic Lathe, CNC Machine and BNC machine
Certificate: :
IATF16949/ROHS
Tolerance: :
±0.002mm
Description

High precision of SUS304 Stainless Steel Step cone type Locating Pins for test equipment

Introduction of Locating Pins

Typically, locating pins are used for controlled, fine tolerance positioning of a work piece. For example, a pallet that is moved along one axis, where the drive mechanism is not accurate and stable enough to place it in a position sufficiently accurate to execute a particular process, the use of locating pins may be the best solution. Usually two locating pins are enough to properly locate the work piece on one plane. There are dozens of styles of locating pins that can be utilized in a design. We will explain the structure and show an example of how each style can be applied. One of the most common pins is a stepped pin with either small or large head.

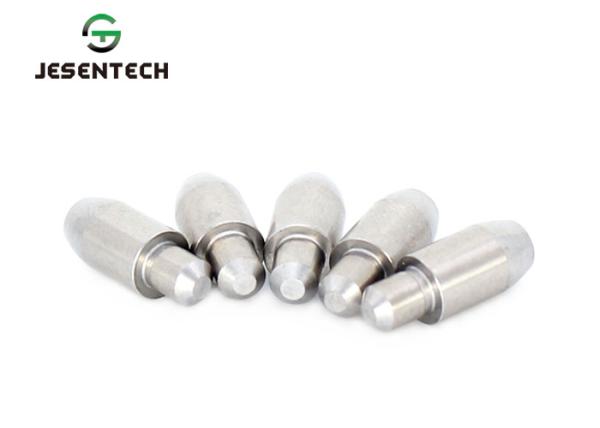

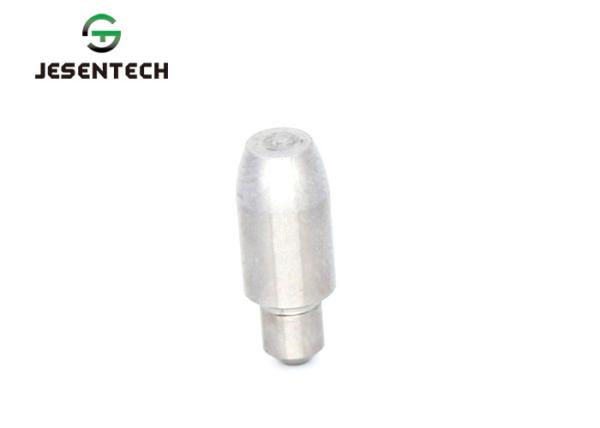

High Precision SUS304 Stainless Steel Dowel Pins Step Cone Type For Test Equipment

D/P D,P Tolerance selection
M P G H S
m6 p6 g6 h7 /
1.50-3.00 +0.008
+0.002		 +0.012
+0.006		 -0.002
-0.008		 0
-0.010		 0
-0.01
3.01-6.00 +0.012
+0.004		 +0.02
+0.012		 -0.004
-0.012		 0
-0.012
6.01-10.00 +0.015
+0.006		 +0.024
+0.015		 -0.005
-0.014		 0
-0.015
10.01-18.00 +0.018
+0.007		 +0.029
+0.018		 -0.006
-0.017		 0
-0.018
18.01-30.00 +0.021
+0.008		 +0.035
+0.022		 -0.007
-0.020		 0
-0.021

High Precision SUS304 Stainless Steel Dowel Pins Step Cone Type For Test Equipment

High Precision SUS304 Stainless Steel Dowel Pins Step Cone Type For Test Equipment
