Small Tolerance Brass Sleeve Bearing , Automatic Winding Machine Custom Metal Fasteners
Small Tolerance Brass Sleeve Bearing , Automatic Winding Machine Custom Metal Fasteners
Small Tolerance Brass Sleeve Bearing , Automatic Winding Machine Custom Metal Fasteners
Small Tolerance Brass Sleeve Bearing , Automatic Winding Machine Custom Metal Fasteners
Specifications
Brand Name :
JESENTECH
Model Number :
Non Standard Customization
Certification :
IATF 16949:2016
Place of Origin :
Shenzhen CHINA
MOQ :
1-5 PIECES
Price :
Negotiated price
Payment Terms :
T/T, L/C, Western Union,Paypal etc.
Supply Ability :
4350000 pieces/Month
Delivery Time :
3-5 days
Packaging Details :
General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)
Application :
Automatic winding machine
Finishing :
as per customer's requirement
Standard :
IATF16949:2016/ISO9001
Size :
As per Customer's request
MOQ :
1 Piece acceptable
Lead Time :
3-5 days
Process :
Automatic Lathe,CNC,BNC
Material :
Brass/Copper/Stainless steel or customized
Description

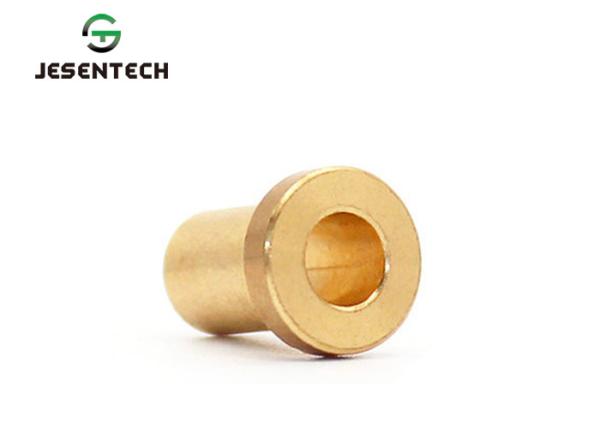

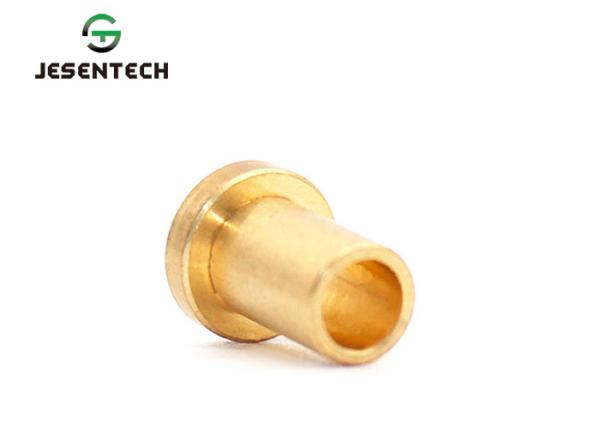

Custom service small tolerance Metal Bushing sleeve by Brass material for Automatic winding machine

Practical application of bushing

Applied to: packaging machinery, textile machine, mining machinery, metallurgical machinery, printing machine, tobacco machinery, forging machine, various machine tools and interchangeable mechanical transmission connections. For example: pulley, chain wheel, gear, propeller, large fan and his various connections, etc. Features: high torque, high precision, convenient operation, simple operation, simple operation, good positioning, reducing the failure rate of the combined shaft and hub, repeatable use and no damage to the surface, is the ideal and economical choice.Installation: the liner is lubricated at the factory and can be installed directly. When installing, the three bolts in the hole of the other flange are twisted in the circumference of the circle, and the inner sleeve and coat are open. Then, put the shell in the hub hole of the design position, and tighten the bolt with the measuring force plate hand, and the method of tightening is that each bolt is unscrewed to the rated moment of 1/44th, the order of the tightening is in the open seam, and the cross-symmetry is tightened in order to ensure the value of the rated moment.

Remove: remove all bolts in a few circles before disassembly. Then twist the bolt in the remove screw and twist the bolt top loose.

Type Material Surface finish Hardness
D size P6 D size m6
BSCPKR BSCMKR SKS3 / 58~61HRC

Small Tolerance Brass Sleeve Bearing , Automatic Winding Machine Custom Metal Fasteners

Type P tolerance (g6) L D H Thickness(E) T R D tolerance
Type P (p6) (m6)
(p6) (m6)
BSCPKR BSCMKR		 2 +0.008
+0.002		 5 6 8 10 12 5 9 1.5 2.5 0.8 +0.02
+0.012		 +0.012
+0.004
3 5 6 8 10 12 7 11 2 2.5 0.8 +0.024
+0.015		 +0.015
+0.006
4 +0.012
+0.004		 5 6 8 10 12 15 16 20 8 12 2 3 1
5 5 6 8 10 12 15 16 20 10 14 2.5 3 1
6 5 6 8 10 12 15 16 20 25 10 14 2 3 1
8 +0.014
+0.005		 5 6 8 10 12 15 16 20 25 12 16 2 4 2 +0.029
+0.018		 +0.018
+0.007
10 6 8 10 12 15 16 20 25 15 19 2.5 4 2
12 +0.017
+0.006		 8 10 12 15 16 20 25 30 18 22 3 4 2
13 10 12 15 16 20 25 30 22 26 4.5 5 2 +0.035
+0.022		 +0.021
+0.008
15 12 15 16 20 25 30 25 30 5 5 2
16 12 15 16 20 25 30 26 30 5 5 2
20 +0.020
+0.007		 12 15 16 20 25 30 30 35 5 6 3
25 16 20 25 30 35 35 40 5 6 3 +0.042
+0.026		 +0.025
+0.009

Small Tolerance Brass Sleeve Bearing , Automatic Winding Machine Custom Metal Fasteners

Small Tolerance Brass Sleeve Bearing , Automatic Winding Machine Custom Metal Fasteners
