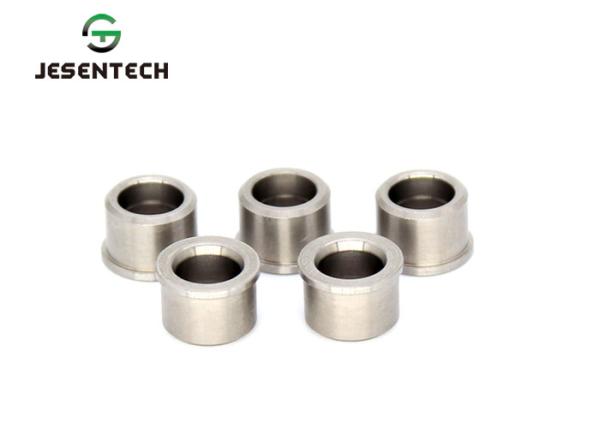

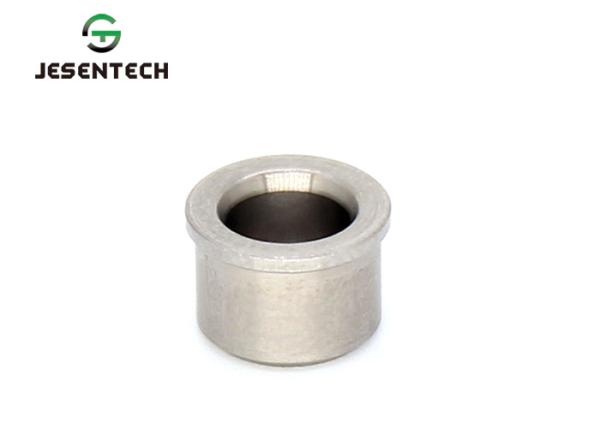

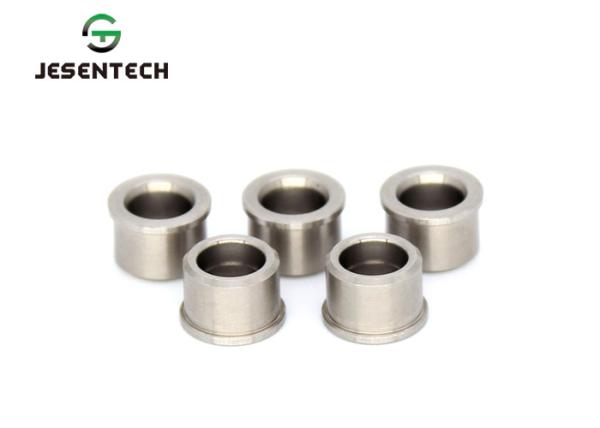

High Precision CNC Turning Metal Sleeve Bearing For Transmission System
High Precision CNC Turning Metal Sleeve Bearing For Transmission System
High Precision CNC Turning Metal Sleeve Bearing For Transmission System
High Precision CNC Turning Metal Sleeve Bearing For Transmission System
High Precision CNC Turning Metal Sleeve Bearing For Transmission System
High Precision CNC Turning Metal Sleeve Bearing For Transmission System
Specifications
Brand Name :
JESENTECH
Model Number :
Non Standard Customization
Certification :
IATF 16949:2016
Place of Origin :
Shenzhen CHINA
MOQ :
1-5 PIECES
Price :
Negotiated price
Payment Terms :
T/T, L/C, Western Union,Paypal etc.
Supply Ability :
3800000 pieces/Month
Delivery Time :
3-5 days
Packaging Details :
General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)
Application :
The transmission system
Material :
Stainless steel / Copper / Brass / Aluminum / Carbon Steel etc. Or Custom service
Finishing :
as customer's requirement
Standard :
IATF16949:2016
Size :
customized
MOQ :
1-5 Pieces
Lead Time :
3-5 days
Description

High precision cnc turning metal Bushing sleeve Short delivery period for The transmission system

Practical application of bushing

Applied to: packaging machinery, textile machine, mining machinery, metallurgical machinery, printing machine, tobacco machinery, forging machine, various machine tools and interchangeable mechanical transmission connections. For example: pulley, chain wheel, gear, propeller, large fan and his various connections, etc. Features: high torque, high precision, convenient operation, simple operation, simple operation, good positioning, reducing the failure rate of the combined shaft and hub, repeatable use and no damage to the surface, is the ideal and economical choice.

Type Material Surface finish Hardness
D size P6 D size m6
BSUFPKRY BSUFMKRY SKS3 Iron oxide protective film 55～60HRC
BSUFPKR BSUFMKR SKS3 / 55～60HRC
BSUFPKRN BSUFMKRN SKS3 Electroless nickel plating 55～60HRC
BSUFPCR BSUFMCR SUS440C / 50～55HRC

High Precision CNC Turning Metal Sleeve Bearing For Transmission System

type D D tolerance P
designated unit is 0.01mm		 L
designated unit is 0.1mm		 Thickness(E) R H T
(p6) (m6)
D size p6 BSUFPKRY BSUFPKR BSUFPKRN BSUFPCR D size m6 BSUFMKRY BSUFMKR BSUFMKRN BSUFMCR 7 +0.024
+0.015		 +0.015
+0.006		 3.51～5.00 3.0～6.0 1.00～1.74 0.5 11 2.5
8 4.51～6.00 3.0～10.0 1.00～1.74 0.5 12 3
9 4.51～6.50 1.25～2.24 0.5 13.5 3
10 6.51～8.00 3.0～15.0 1.00～1.74 0.5 14 3
11 +0.029
+0.018		 +0.018
+0.007		 8.00～9.00 1.00～1.50 0.5 15 3
12 8.51～9.00 1.50～1.74 0.5 16 4
13 8.51～10.00 5.0～35.0 1.50～2.24 0.5 17 4
14 9.00～11.00 1.50～2.50 0.5 18 4
15 10.51～12.00 1.50～2.24 0.5 19 4
17 10.51～13.00 2.00～3.24 1.0 21 5
18 12.51～14.00 2.00～2.74 1.0 22 5
20 +0.035
+0.022		 +0.021
+0.008		 13.51～15.00 2.50～3.24 1.0 26 5
22 13.51～17.00 2.50～4.24 1.0 26 5
25 15.51～19.00 3.00～4.74 1.0 30 5
26 16.51～20.00 3.00～4.74 1.0 30 5
30 20.51～24.00 3.00～4.74 1.5 35 6
35 +0.042
+0.026		 +0.025
+0.009		 25.01～29.00 5.0～50.0 3.00～4.99 1.5 40 6
P≤3.59,L+T≤Px2.5; P≥3.6,L+T≤Px3.0
