51mm Metallic Pipes Bending 1mm / Min UTM Universal Testing Machine
51mm Metallic Pipes Bending 1mm / Min UTM Universal Testing Machine
Specifications
Place of Origin :
CHINA
MOQ :
5 pieces
Price :
USD
Payment Terms :
T/T, L/C
Supply Ability :
100 pieces per day
Delivery Time :
2-5weeks
Packaging Details :
Carton Box
Name :
Metallic Pipes Bending Testing Machine
Test Speed :
1-160mm/min, adjustable
Bending angle :
0-90°
Bending test space :
＞500mm
Description

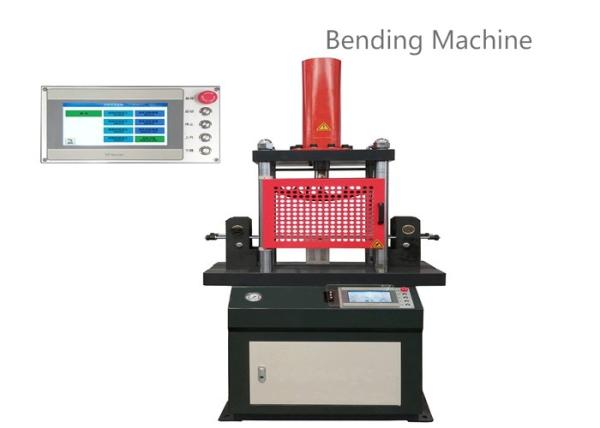

51mm Metallic Pipes Bending Testing Machine

Application & Functions

  • 51mm steel pipes bending testing machine is used to determine the ability of full-section metallic tubes of circular cross-section to undergo plastic deformation in bending. It is intended for tubes with an outside diameter no greater than 51mm.
  • Bend the unfilled test piece of the tube on this machine, ensuring contact between the tube and the tube bend former over the length of bend, until the specified angle of bend is reached to observe whether there is any crack or layer occur in the steel tube.
  • If welded tubes are subjected to the test, the position of the weld shall be at 90º to the plane of bending i.e. the neutral axis, unless otherwise indicated in the relevant product standard.
  • Used in 10° bending test, 30° bending test, 90° bending test for steel-plastic composite pipe with diameter no greater than 40mm.
  • Used in bending test of 6 times diameter and 8 times diameter of steel tubes, with diameter no more than 51mm/48.3mm.

Specifications

HWQ-50G Steel Pipes Bending Testing Machine
1 Max. outside diameter of steel pipe Outside diameter no greater than 51mm/48.3mm
2 Test speed 1-160mm/min, adjustable
3 Bending angle 0-90°
4 Bending test space ＞500mm
5 Distance between support rolls 0-850mm, adjustable
6 Upper bending former Bending former radius=6 times/8 times outside diameter of steel tube
7 Bending support rolls
8 Outside diameter

10.2/13.5/17.2/21.3/26.9/33.7/42.4/48.3/51.0mm

(10.0/12.7/16.0/20.8/26.0/33.0/42.0/48.3mm)

(32.5/41.5/47.5mm)
9 Piston stroke ＞400mm
10 Loading mode Hydraulic loading, HRJ-Test touch screen system, one-button operation
11 Power voltage 380V±10% 50Hz
