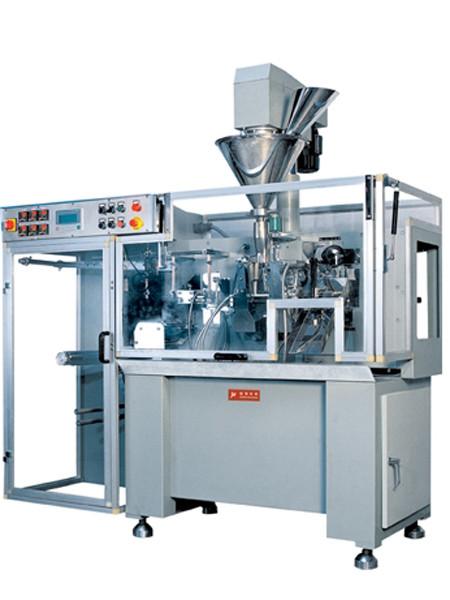

Approved Automatic Flour Powder Bag Seasoning Packing Machine

Description:

This machine is a professional packaging machine designed for powder material automatic filling, this machine adopts the advanced industrial computer control system, through theChinese LCD touch screen can realize the function of setting,make the operation more simple and clear.

The packagingprocess is intuitive, simple operation method, specification adjustment is convenient and fast. According to the need to bechanged at any time three side sealing and sealing four edges of two different forms of sealing, the sealing property is good,beautiful appearance. Measurement device can have a variety of options, such as piston pump for multiple gluing body packaging(P) and hyper pump (H).

Suitable material:

Catsup products applicable to all kinds of seasoning powder,pesticide powder, all kinds of low viscosity, such as tomato paste,all kinds of sauce, cream shampoo, washing liquid, ointment,paste pesticides etc..

The main parameters:

Packing: ≤ 110 bags per minute (depending on package materials, materials and specifications set)

Filling capacity: 2.5~60ml

Bag width: 50~110mm

The bag length: 50~130mm

Packing film width: 100~260mm

Maximum diameter: diameter of 500mm thin films

The film core tube diameter: diameter of 70-80mm

Power: 1.9KW, three-phase 380V (± 5%), 50HZ

Depth: 800mm; width: 1850mm; total height: 2000mm (maximum)

Machine weight: 450kg

are beyond the scope of special customization.

Optional device:

Screw metering device, hot embossing device, printer, piston pump, magnetic pump, multistage pump Hoi PA.

Application:

Seasoning powder + chili powder double bag, seasoning powder + Fried onion double bag.

1. It is suitable for all kinds of powder food packing, like condiment powder, pepper powder, curry powder, corn flour, milk powder, chili powder,coriander powder, cumin powder and so on.

2. Nice packing style for option, normal pillow bag, gusset bag, four sides sealing bag, And for the packing material - film, not only suitable for composite film, like opp/cpp, but also for poly ethylene material. Now poly ethylene material is becoming more and more popular, nice and cost less.
