0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval
0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval
0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval
0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval
0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval
0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval
0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval
0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval
0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval
0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval
Specifications
Brand Name :
HKJ
Model Number :
BCKN150/28 DPA
Certification :
BV,SGS,ISO9000
Place of Origin :
SHANDONG,CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 sets/month
Delivery Time :
30 days
Packaging Details :
Wooden case
Keywords :
Noodle packing machine
PLC :
Omron
Servo motor :
Three servo motor
Warrenty :
One year
Machine type :
Noodle packing machine
Packing type :
Pillow plastic bag
Film :
PE/PP
Description

We are a leading and professional packing machine manufacturer in CHINA for more than ten years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing and packing machine,Noodle and spaghetti bundling and packing machine ,counting and packing machine etc.,if you are interested in our machine,please feel free to contact me.

·Product category:Noodle packing
·Product name:Weighting & Single-stripe Bundling Machine
·Item No.:BCKN150/28 DPA

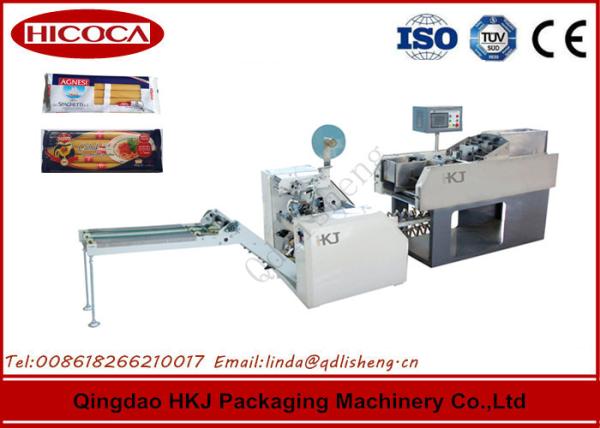

Product name: Single Belt Strapping and Packing Machine for Noodle and Spaghetti

0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval

Packed bag

0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval

Technical Specification of Noodle weighing & single-stripe bundling machine:

Work object Noodle,spaghetti,pasta
Length of noodle (180mm~260mm)±5.0mm
Thickness of noodle 0.6mm~1.4mm
Width of noodle 0.8mm~3.0mm
Diameter of bundle Ø15mm~30mm
Specification of Tape (composite paper width)12mm~24mm
Measurement range 40g~150g
Measurement speed ≤28bars/min
Measurement accuracy ±1.0g(within 97%)
Speed and accuracy of measurement Differs from the quality and the unit weight of noodle
Measurement method Touch screen control two measurement
Setting of measured value Digital input
Display of measured value Accurate to 0.1g
Zero adjustment Automatically or manually
Size 3850mmx1000mmx1350mm
Voltage/power (single-phase)AC220V/50-60HZ/750W


Contains:


1, weighting machine:One set
2, single-stripe bundling machine:One set
3, lifting machine:One set

Applications:

Automatically finish the process of weighting, outputting, filling and single-stripe bundling packing of the Spaghetti and other noodle.

Advantages:


1, Our machine use inported electrical components and inported motor,job stability,measurement speed and high accuracy.
2. All the parts which contact with noodles are made of stainless steel.
3. Only one operator without the reinspction.Using the machine can reduce labor intensity and improve work efficiency.
4. The machine performance is stable ,and can finish one stripe packing one time.

Our Factory

0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval

Production Line

450+ Workers,20000M2 Workshop, 15 Years Experience

0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval

Product List

0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval

Product Certificate and Company Certificate

0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval

Exhibition and Customers

0.6mm~1.4mm Thickness Noodles Packing Machine High Performance BV Approval
