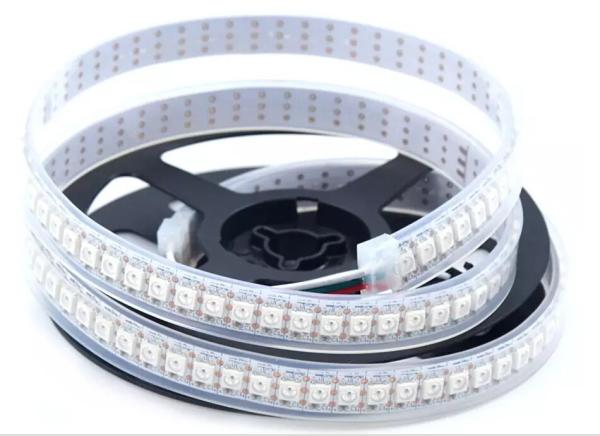

WS2812 WS2812B 144LED m 2811 IC 5050 RGB SMD Built-in Addressable Color Flexi LED Pixel Strip Light White PCB Waterproof
WS2812 WS2812B 144LED m 2811 IC 5050 RGB SMD Built-in Addressable Color Flexi LED Pixel Strip Light White PCB Waterproof
Specifications
Brand Name :
NMD
Model Number :
NMD-WS2812B-144
Certification :
CE,ROHS
Place of Origin :
Shenzhen
MOQ :
5M
Price :
1-13$
Payment Terms :
Paypal,TT,Western Union
Supply Ability :
10000m/day
Delivery Time :
3-5days
Packaging Details :
5m/roll, anti-static bag
Voltage(V) :
5V
Led Qty :
144leds per meter
IC Qty :
144IC per meter
IC Chip :
WS2811 IC
PCB Color :
White /Black Color
Description

WS2812 WS2812B 144LED m 2811 IC 5050 RGB SMD Built-in Addressable Color Flexi LED Pixel Strip Light White PCB Waterproof

Patameter:

Input voltage

DC5V

IC type

WS2811

LED Qty

144pcs/meter

IC Qty

144pcs WS2811 IC chips per meter, ic built inside of led

Wave length(NM):

R-650mcd, G-520mcd,B-460mcd

Power(W/M)

Max 43.2W/M

Pixel

144pcs/meter

View angle

120 degree

Life span

over 50000hrs

Dimension

1000*12*2.2mm

Certification

ce & rohs

WaterProof

IP20/IP65/IP67

Packaging

1M/reel in antistatic bag

Connection:
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier; DAT and GND connect to controller
3) Relative Controller: SPI controller support ws2811; when use DMX decorder, can connect to DMX system
4) Support online control

Color:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video

Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product

Waterproof Level available:

IP40--Non waterproof ,for interior use

IP65---Epoxy coating,easy cut,exterior use

IP67---Silicone tube,need reseal after cut,exterior use

IP68---can work underwater

Detailed Images:

WS2812 WS2812B 144LED m 2811 IC 5050 RGB SMD Built-in Addressable Color Flexi LED Pixel Strip Light White PCB Waterproof

WS2812 WS2812B 144LED m 2811 IC 5050 RGB SMD Built-in Addressable Color Flexi LED Pixel Strip Light White PCB Waterproof

WS2812 WS2812B 144LED m 2811 IC 5050 RGB SMD Built-in Addressable Color Flexi LED Pixel Strip Light White PCB Waterproof

WS2812 WS2812B 144LED m 2811 IC 5050 RGB SMD Built-in Addressable Color Flexi LED Pixel Strip Light White PCB Waterproof

WS2812 WS2812B 144LED m 2811 IC 5050 RGB SMD Built-in Addressable Color Flexi LED Pixel Strip Light White PCB Waterproof

Application:

Widely used in furniture, automotive, advertising, lighting, ships and home decoration industries.
1. city skyline lighting including buildings, advertising wall signs, Christmas landscape decoration.
2, irregular design of body decoration, such as hotels, clubs, KTV places such as polygonal walls, drop ceilings and groove design.
3, home cove trim such as door frames, bar, wine cabinet, wardrobe, TV cabinet.
4, car such as body, vehicle.

WS2812 WS2812B 144LED m 2811 IC 5050 RGB SMD Built-in Addressable Color Flexi LED Pixel Strip Light White PCB Waterproof
