Programmable Dream Color Addressable 5VDC 30/60/72/144LED per meter SK6812 5050SMD RGB LED

SK6812 LED is a newest development of built-in IC,the SK6812 built-in IC SMD LED is good new choice for digital rgb full color led strip and pixel module light.which is lower voltage drop and high brightness.

Patameter

Dimension:

• 5000*10*2.5mm (non-waterproof),

• 5000*10*3.5mm (IP65 waterproof),

• 5000*12.5*4.5mm (IP67/68 waterproof),

• Waterproof IP grade:IP20 Non-waterproof with 3M sticker on the back,
• IP65 waterproof is silicone gel or epoxy on the surface,
• IP67: silicone tube,
• IP68: silcone gel(or epoxy) inside silicone tube.

Features:

• Each led individual controlled,every led cutable.
• Operating Voltage 5 Voltage DC.
• SPI signal control system, DVI video control system,DMX console controllable.
• Madrix Software available (work with some special controllers).
• high intensity video screen,video wall,water running effect,breathing effect,color chasing,ect.
• SK6812 datasheet: http://www.normandled.com/upload/201603/SK6812%20LED%20%20Datasheet.pdf
• Connection:

• 1) Signal wire: DC+, DAT, GND
  2) DC+ and GND connect to power supplier; DAT and GND connect to controller
  3) Relative Controller: SPI controller support sk6812; when use DMX decorder, can connect to DMX system
  4) Support online control

• Color:
  1) Each pixel can be controlled individually
  2) Can show any color
  3) Can be used as flexible led display screen to show image and video

• Installation Notice:
  1) Make sure the connection is correct according to the diagram
  2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
  3) Keep the surface of installation clean and smooth avoid breaking off
  4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product

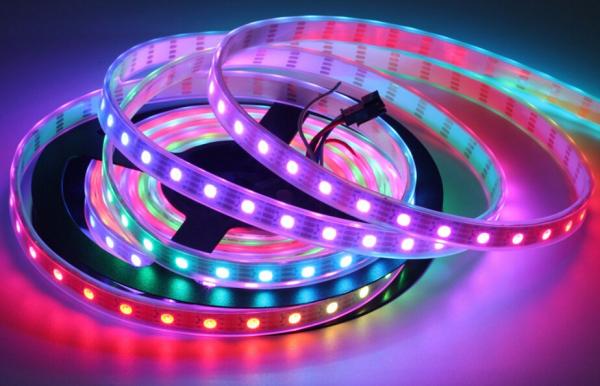

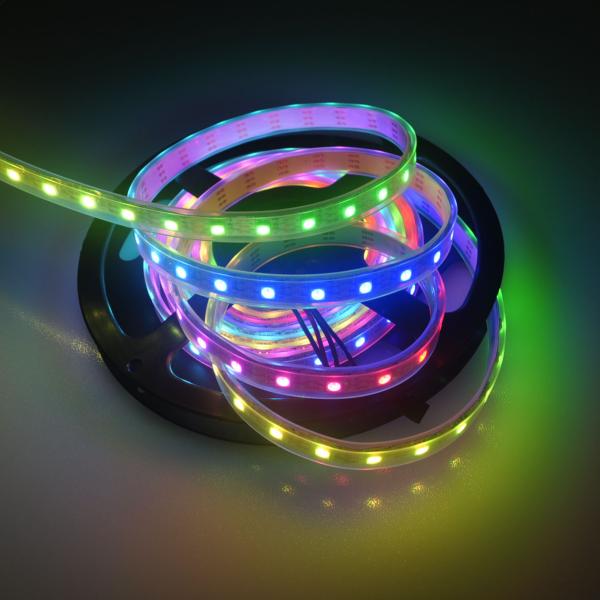

• Pictures:

•
•
•

Connecting Diagram:
