4 in 1 RGBW LED Strip 5050 DC12V Flexible LED Light RGB+White / RGB+Warm White 4 color in 1 LED Chip 60 LED/m 5m/lot
4 in 1 RGBW LED Strip 5050 DC12V Flexible LED Light RGB+White / RGB+Warm White 4 color in 1 LED Chip 60 LED/m 5m/lot
4 in 1 RGBW LED Strip 5050 DC12V Flexible LED Light RGB+White / RGB+Warm White 4 color in 1 LED Chip 60 LED/m 5m/lot
4 in 1 RGBW LED Strip 5050 DC12V Flexible LED Light RGB+White / RGB+Warm White 4 color in 1 LED Chip 60 LED/m 5m/lot
Specifications
Brand Name :
NMD
Model Number :
NMD-5050RGBW-60
Certification :
CE,ROHS
Place of Origin :
Shenzhen
MOQ :
5M
Price :
1-3$
Payment Terms :
Paypal,TT,Western Union
Supply Ability :
10000m/day
Delivery Time :
3-5days
Packaging Details :
5m/roll, anti-static bag
Voltage(V) :
12V
Watt(W) :
14.4W/M
LED QTY :
60LED/M
PCB Color :
White
Description

4 in 1 RGBW LED Strip 5050 DC12V Flexible LED Light RGB+White / RGB+Warm White 4 color in 1 LED Chip 60 LED/m 5m/lot

5050 Rgbw LED strip datasheet:

Product name: RGBW LED STRIP 5050SMD FULL SPECTRUM RGB LED STRIP
LED Quantity 60PCS/M,300PCS/Reel
Lumens/m 1200LM/m
Wattage 19.2W/M
LED Type SMD5050
PCB Width 12mm
Length/Reel 5M
LED Lumens 18-20LM/LED
Working Voltage DC12v&DC24V
Light Color RGBW 4 color in one LED
IP Grade IP20:Non waterproof)
IP65:Soft glue waterproof
IP66:Soft tube waterproof
IP68:Soft tube+glue waterproof
Glue Type Expoy:Non-anti-UV,Stay clean for short time,smell
Silicone:Anti-UV,Stay clean,soft,smell-less
PU: Anti-UV,Stay clean,soft,smell-less
PCB Color White,Yellow,Black
Certification CE RoHS
Cut size DC12V (every 3LED per cut),
DC24V (every 6LED per cut)
30LED/M with 100mm per cut,
60LED/m with 50mm per cut
Installation IP20 with 3M Adhesive tape on the back of PCB
IP65 with 3M Adhesive tape on the back of PCB
IP66 with plastic clip and screw
IP68 with plastic clip and screw
Remark We accept customization size

Product Description

1. LED chip——SMD5050 R, G, B, W(WW/CW) 4 in 1 LED chip.

2. Standard Reel Length: 5meter/roll, also can be customized.

3. Cutted: you can cut this stuff pretty easily with wire cutters,

Solder to the 0.1'' copper pads and you're good to go.

DC12V: cutted per 3LED, there are cut-lines every 5cm.

DC24V: cutted per 6LED, there are cut-lines every 10cm.

4. Power: the theory power is 19.2W/M, but the really power just about 12W/M.

5. Power supply:

DC12V led strip: you must use a 12V DC power supply to power this strip, do not use higher than 13V,

DC24V led strip: please use 24V DC power supply, or you can destroy the entire strip.

6. Sticky: non-waterproof: with 3M adhesive on back side for sticky;

waterproof: screw+silicon clip, or 3M adhesive back side.

7. Type: RGBW, RGBCW, RGBWW——60LEDs/m, White PCB

Waterproof——DC12V; Waterproof——DC24V

Non-waterproof ——DC12V; Non-waterproof——DC24V

8. Color temperature: RGBWW: RGB+3000K;

RGBW: RGB+6000K;

RGBCW: RGB+10000K

Product Features:
1. Super bright 5050 SMD LED, high intensity and reliability.
2. Long life span 50,000 hours
3. Continuous length, packed with 5 meter.
4. Flexible ribbon for curving around bends
5.Completely smooth and even light spread, solving the uneven luminous problem
6.Ultra-bright but running at low temperature
7.Low power consumption
Application:
1.Ideal for decoration of building outlines, landscape illumination, amusement themes,
2.Holiday light sculpture, decorative figure, active signs, displays, shop windows
3.And storefronts, bar, nightclub, street, sidewalk, deck, park, porch, staircase, railing, ceiling, or driveway.

4 in 1 RGBW LED Strip 5050 DC12V Flexible LED Light RGB+White / RGB+Warm White 4 color in 1 LED Chip 60 LED/m 5m/lot

4 in 1 RGBW LED Strip 5050 DC12V Flexible LED Light RGB+White / RGB+Warm White 4 color in 1 LED Chip 60 LED/m 5m/lot

4 in 1 RGBW LED Strip 5050 DC12V Flexible LED Light RGB+White / RGB+Warm White 4 color in 1 LED Chip 60 LED/m 5m/lot

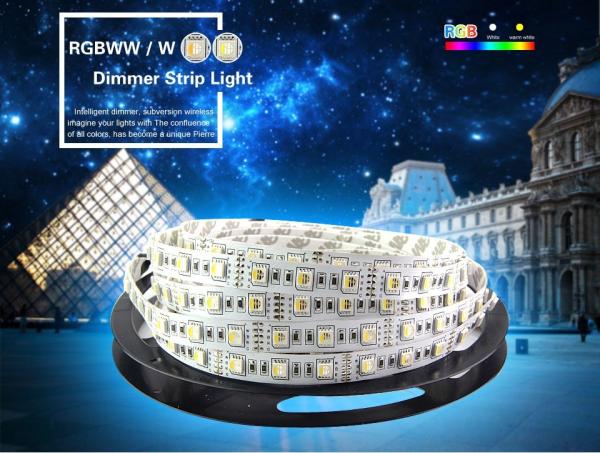

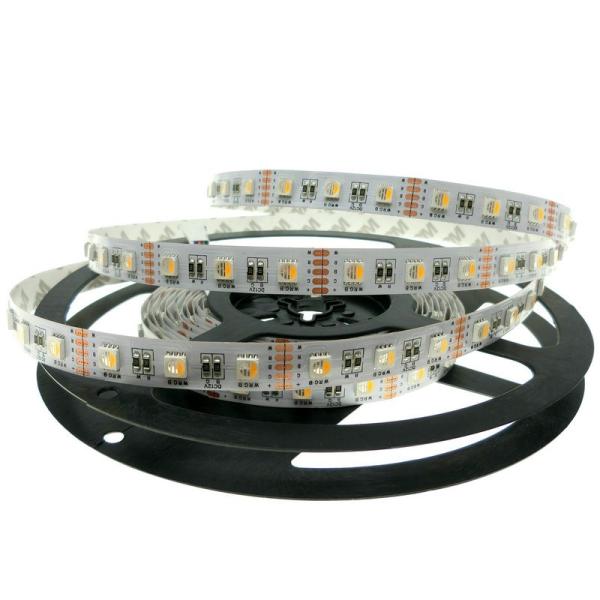

Product Show:

4 in 1 RGBW LED Strip 5050 DC12V Flexible LED Light RGB+White / RGB+Warm White 4 color in 1 LED Chip 60 LED/m 5m/lot4 in 1 RGBW LED Strip 5050 DC12V Flexible LED Light RGB+White / RGB+Warm White 4 color in 1 LED Chip 60 LED/m 5m/lot

4 in 1 RGBW LED Strip 5050 DC12V Flexible LED Light RGB+White / RGB+Warm White 4 color in 1 LED Chip 60 LED/m 5m/lot4 in 1 RGBW LED Strip 5050 DC12V Flexible LED Light RGB+White / RGB+Warm White 4 color in 1 LED Chip 60 LED/m 5m/lot
