Specifications
Certification :
CE ISO SGS
Brand Name :
N PACK
Place of Origin :
China
MOQ :
1
Price :
9000USD/set to 50000USD/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000-2500unit/Hour, Adjustable
Delivery Time :
40 working days
Packaging Details :
Wooden box
Feed Cylinder Structure :
Multi-Room Feeding
Dosing Device :
Plunger
Filling Principle :
Pressure
Packaging Container Lifting Structure :
Pneumatic Lifting
Structure :
Rotary
Packaging :
Soft Tube
Packaging Material :
Plastic
Appliaction :
Soft/Test/Aluminum Tube
Control :
PLC Control
Suitable Product :
Paste/Sauce/Cream
Transport Package :
Wood
Specification :
2m*1.4m*2m
Trademark :
Npack
Origin :
China
HS Code :
8422309090
After-sales Service :
Online Instruction
Warranty :
1 Year
Type :
Tube Filling Machine
Automatic Grade :
Fully Automatic
Material Type :
Paste
Filling Valve Head :
Multi-Head
Description

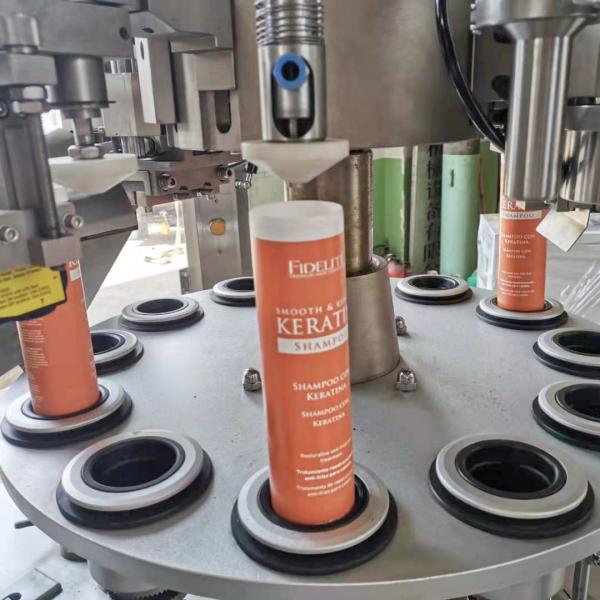

Automatic Paste/Cream Tube Filling and Sealing Machine

Customized Soft / Test Aluminum Tube Filling And Sealing Machine With Multi-Head Valve

The tube filling and sealing machine utilizes both closed and semi-closed systems for filling pastes and liquids, ensuring leak-proof seals and consistent filling weight and capacity. The processes of filling, sealing, and printing are completed in one operation. This machine is widely used in the cosmetics industry, light industry (daily-use chemical industry), pharmaceutical industry, food industry, and other sectors. It is ideal for products packaged in tubes. The equipment fills materials such as ointments, creams, gels, or high-viscosity fluids into tubes, then folds and seals the tube's tail, and prints the code on the tube to produce the finished product.

Product Parameters

Filling volume 30-125g /unit (Adjustable)
Filling accuracy <=±1%
Capacity 2000-2500unit/hour, Adjustable
Tube diameter Φ10-50 mm
Tube length 50-200mm
Hopper volume 30L
Power 380V/220V (Optional)
Air pressure 0.4-0.6 MPa
Equipped motor 1.1KW
Machine power 5kw
Inner wind motor 0.37kw
Convulsions motor 0.37kw

Product Details
