Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil
Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil
Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil
Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil
Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil
Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil
Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil
Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil
Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil
Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil
Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil
Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil
Specifications
Certification :
CE ISO SGS
Brand Name :
N PACK
Model Number :
NP-RL
Place of Origin :
China
MOQ :
1
Price :
5000USD/set to 20000USD/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80-200bpm
Delivery Time :
40 working days
Packaging Details :
Wooden box
Model NO. :
NP-RL
Classification :
Automatic Vertical Round Bottle Labeling Machine
Packaging Material :
Plastic
Packaging :
Bottles
Bottle Type :
Plastic Pet Glass Round Bottle
Control :
PLC Control
Suitable Product :
Liquid/Sauce/Oil/Paste
Keywords :
Automatic Labeling Machine
Labeling Speed (PCS/Min) :
40-150
Material :
Stainless Steel 304/316
Transport Package :
Wood
Specification :
1.8m*1.5m*1.6m
Trademark :
Npack
Origin :
China
HS Code :
8422303090
After-sales Service :
Online Instruction
Warranty :
1 Year
Automatic Grade :
Automatic
Application :
Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Seasoning, Dairy Products
Type :
Sticker Labeling Machine
Driven Type :
Electric
Description

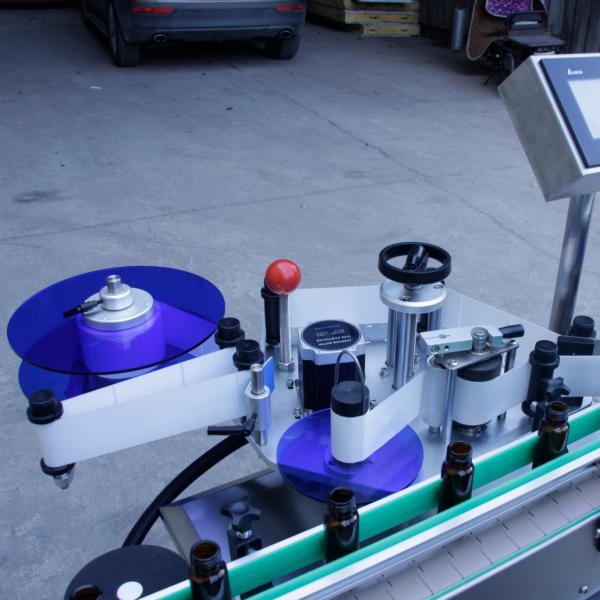

Automatic Round Bottle Labeling Machine

Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil

The automatic round bottle labeling machine can label various containers made of different materials, such as plastic, glass, and metal. This machine is designed for single-side labeling or full-circle labeling on the round surfaces of differently shaped containers, including skin cream, hair cream, shoe polish, toothpaste, and other liquids, lotions, and creams.

Main Feature

1. It is suitable for circular objects in the pharmaceutical, daily chemical, and other industries.

2. The machine's standout feature is its roller rubbing device, which offers high speed and high accuracy.

3. Previous labeling machines used a belt rubbing labels device, which often led to deflection and affected labeling accuracy. The roller rubbing labels device completely eliminates this inaccuracy.

4. The machine's structure is simple and compact, making it easy to operate and maintain. Changing the bottle diameter does not require replacing any spare parts, as the separation kit is versatile.

5. The labeling head can be equipped with a well-known brand servo motor, with a maximum labeling speed of up to 150 pcs/min.

Product Parameters

Model / technical parameters NP-RL
Labeling speed (pcs/min) 40-150
(relate to material and label size)
Labeling accuracy(mm) ±1.0mm
(material and label sizes are not counted in)
Label size(mm) (L)20-280mm (H)30-144mm
Material size (mm) Φ20-φ100mm (H)40-200mm
Roll inside(mm) φ76mm
Roll outer diameter(mm) Max:Φ350mm
Machine size (mm) (L)2000*(W)850*(H)1450(mm)
Power supply AC220V 50Hz/60Hz 1500W

Product Details

Automatic PLC Control Round Bottles Cans Jars Labeling Machine For Liquid Sauce Oil

Work Process:

1. Manually place the pasted products (connected to the bottle unscrambler turntable).
2. The products are automatically aligned and transported separately.
3. Product inspection.
4. Product labeling.
5. Collect the labeled products (move to the next process).
6. Remove the products.
