Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Specifications
Certification :
CE ISO SGS
Brand Name :
N PACK
Model Number :
NP-LC
Place of Origin :
China
MOQ :
1
Price :
9000USD/set to 50000USD/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60-80bpm
Delivery Time :
40 working days
Packaging Details :
Wooden box
Model NO. :
NP-LC
Usage :
Inner Packing
Type :
Cap Sealing Machine
Packaging Material Mechanical Properties :
Flexible Container Sealing
Material Type :
Plastic/Iron/Aluminum
Bottle Type :
Plastic/Pet/Squre/Flat Bottle
Cap Type :
Pupm/Trigger/Sprayer Cap
Control :
PLC Control
Keywords :
Bottle Capping Machine
Transport Package :
Wood
Specification :
1.1m*0.89m*1.9m
Trademark :
Npack
Origin :
China
HS Code :
8422303090
After-sales Service :
Online Instruction
Warranty :
1 Year
Packaging :
Bottles
Automatic Grade :
Automatic
Packaging Material :
Plastic
Application :
Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products
Description

Automatic Linear Spray trigger Capping Machine

Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control

The NP-LC automatic capper machine is specifically designed for capping trigger pump spray caps with long and soft tubes . This advanced linear type machine incorporates a spindle screw mechanism and features a cap elevator that ensures the timely supply of trigger pump caps. It is capable of accurately passing trigger pump caps and placing them into bottles with precision. Additionally, the NP-LC automatic capper machine is equipped with a CE Certificate, ensuring compliance with European safety standards. This machine is particularly suitable for packaging liquid detergent in the daily chemical industries, providing a reliable and efficient solution for various bottling needs.

MAIN FEATURE

1. The machine is equipped with variable speed AC motors, allowing for precise control and adjustment to meet different production requirements.
2. It features spindle wheels adjustment knobs, along with lock nut hand wheels, ensuring easy and secure adjustments for optimal performance.
3. A meter index is included for easy mechanical adjustment, enabling quick and accurate setup changes without the need for specialized tools.
4. The design eliminates the need for change parts for a wide range of containers, enhancing versatility and reducing operational costs.
5. The comprehensive universal cap chute and escapement system is designed to handle various cap types efficiently, ensuring reliable and consistent capping.
6. With a 2-layer bottle clamping belt, the machine is suitable for containers of various shapes and sizes, providing stability and accuracy during the capping process.

Product Parameters

Name/Model NP-LC Automatic linear spindle capping machine
Capacity 0-200b/min (Subject to bottle and cap)
Cap Diameter Φ20-120mm
Bottle Height 40-460mm
Demensions 1060*896*1620mm
Voltage AC220V 50/60Hz
Power 1600W
weight 500KG
Cap Feeding System Elevator Feeder

Product Details

Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
6 Wheels
1. Each wheels speed is indivadually adjustable, requency controlling
2. The wheels can run in opposite direction to make cap fitting the bottles well if necessary
3. Wheels are made of soft material to prevent caps from damage
4. Wheels are horizontally adjustable for different sizes of caps
5. Wheels are vertically adjustable for bottles of different height
6. Each wheels driven by one motor

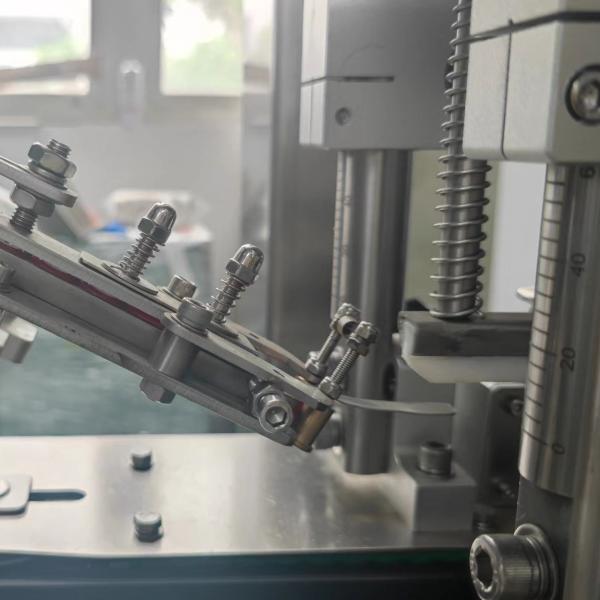

Two-layer Bottle Clamp Belt
The double belts height is adjustable to fit differnet sizes bottles.and the angle is adjustable according to the bottle shape, more stable. Speed is frenquecy contolled to match the conveyor and capping speed
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
Motors

1. There are 6 motors for the 6 capping wheels, and the motors can be changed to servo motors for adjustable torque if the customer needs.
2. There are 2 motors for the bottle clamping belt.
3. There is 1 motor for adjusting the machine height up and down.
4. The capping torque is adjustable as an option.


Product Application

Npack Full Automatic Wine Liquor Spray Perfume Bottle Capping Machine with PLC Control
