Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling
Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling
Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling
Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling
Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling
Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling
Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling
Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling
Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling
Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling
Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling
Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling
Specifications
Certification :
CE ISO SGS
Brand Name :
N PACK
Model Number :
NP-TS
Place of Origin :
China
MOQ :
1
Price :
9000USD/set to 50000USD/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80-200bpm
Delivery Time :
40 working days
Packaging Details :
Wooden box
Model NO. :
NP-TS
Classification :
Bilateral Pneumatic Labeling Machine
Packaging Material :
Plastic
Packaging :
Bottles
Bottle Type :
Plastic Pet Glass Round Square Bottle
Control :
PLC Control
Suitable Product :
Liquid/Sauce/Oil/Paste
Keywords :
Automatic Labeling Machine
Labeling Speed (PCS/Min) :
40-150
Material :
Stainless Steel 304/316
Transport Package :
Wood
Specification :
1.8m*1.5m*1.6m
Trademark :
Npack
Origin :
China
HS Code :
8422303090
After-sales Service :
Online Instruction
Warranty :
1 Year
Automatic Grade :
Automatic
Application :
Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Seasoning, Dairy Products
Type :
Sticker Labeling Machine
Driven Type :
Electric
Description

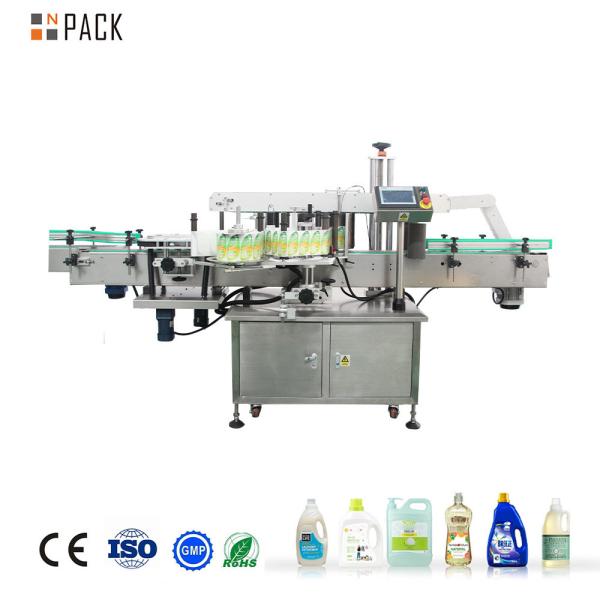

Automatic Sticker Double Sides Labeling Machine

Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling

The automatic double side adhesive labeling machine is designed to apply sticker labels on the front and back sides of bottles, jars, and similar containers that are round, flat, oval, rectangular, or square in shape. The labeling speed depends on the stable motion of the product on the conveyor, especially at higher speeds.

Main Features:

1. The machine primarily uses SUS304 stainless steel and aluminum alloy materials.
2. The main unit is driven by an advanced servo system, ensuring high speed and high positioning accuracy.
3. It incorporates world-famous electrical components, ensuring stable quality, wrinkle-free sticky labels, and precise sticker application.
4. The equipment can operate independently or be integrated into a production line.

Product Parameters

Technical Parameters
Labeling Speed
60-350pcs/min (Depending on label length and bottle thickness)
Height of Object
30-350mm
Thickness of Object
20-120mm
Height of Label
15-140mm
Length of Label
25-300mm
Label Roller Inside Diameter
76mm
Label Roller Outside Diameter
420mm
Accuracy of Labeling
±1mm
Power Supply
220V 50/60HZ 3.5KW Single-phase
Gas Consumption of Printer
5Kg/cm^2
Size of Labeling Machine
2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine
450Kg

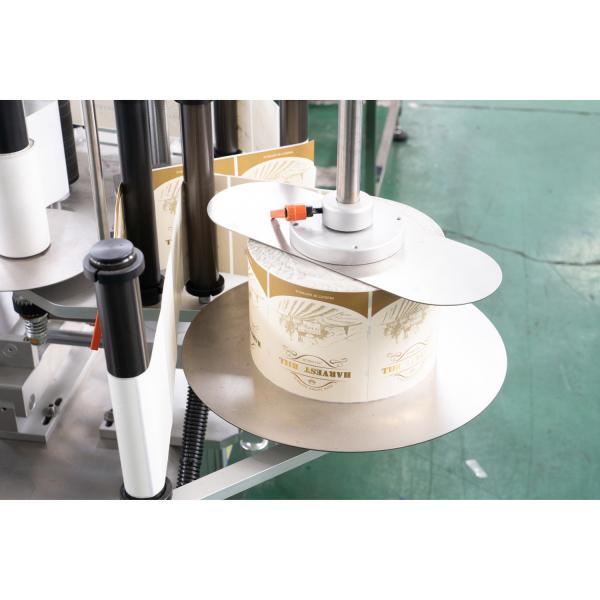

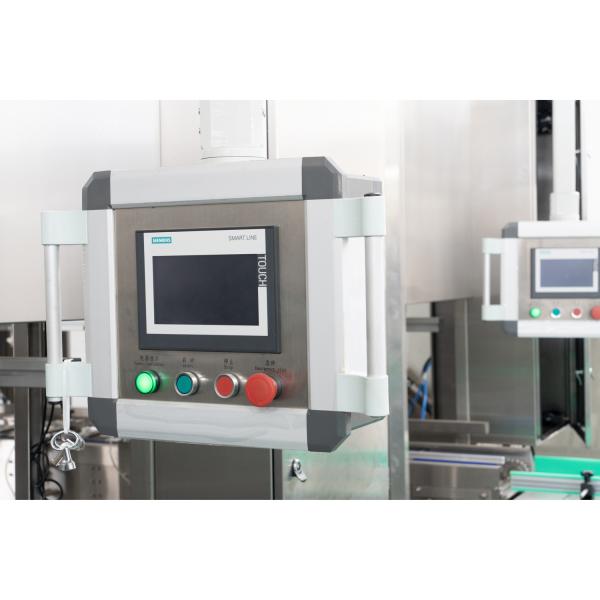

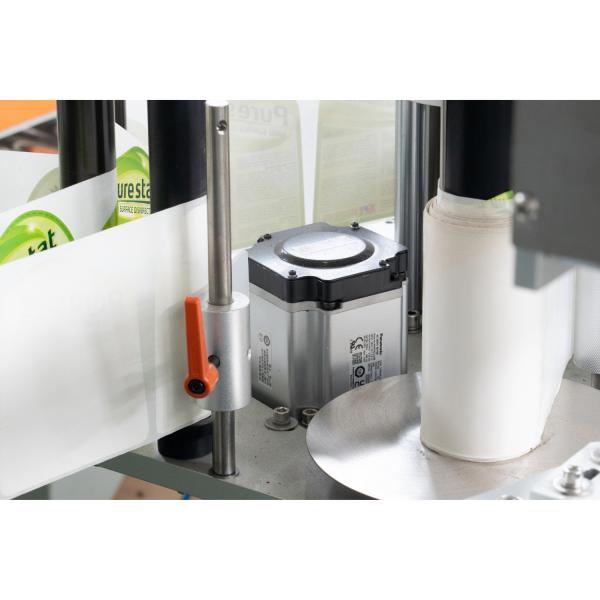

Product Details

Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling

Product Application

Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling

Related Products

1.NP-VF Automatic Liquid Filling Machine

Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling

The NP-VF automatic servo piston filling machine is extremely flexible filler, is capable of filling accurately and rapidly any viscous material,such as detergent liquid,shampoo, hand soap,dishwashing liquid, shower gel and so on.

2.NP-LC Automatic Spindle Screw Capping Machine

Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling

The NP-LC automatic spindle screw capping machine is extremely flexible , is capable of capping accurately and rapidly any cap,such as trigger cap, metal cap, flip cap and so on.

3.NP-RL Round Bottle Vertical Self-adhesive Labeling Machine

Npack Shanghai Bilateral Pneumatic Labeling Machine for Front Back Two Sides Labeling NP-RL Automatic round bottle labeling machine also called vertical labeling machine, it is application for labelling a range of round bottles.The machine is used for full/partial wrap around labeling on different size of round container.
