NPK compound fertilizer granulation equipment powder double roller extrusion granulator

Product Description:

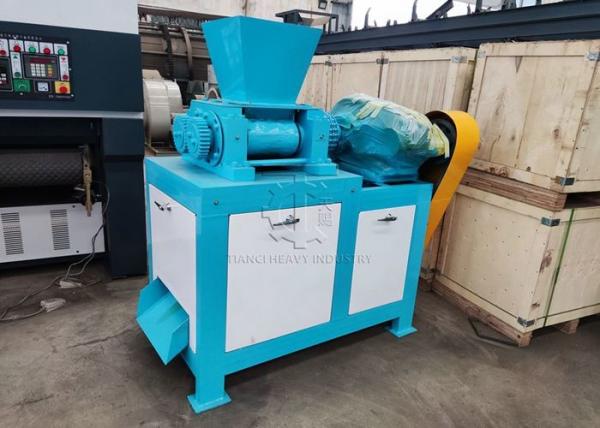

The roller extrusion granulator is driven by a motor belt and a pulley, which is transmitted to the driving shaft through a reducer and works synchronously with the driven shaft through split gears. After die extrusion molding, demoulding granulation, crushing and separation, uniform granulation is achieved. The extrusion die is carefully forged with excellent corrosion-resistant and wear-resistant materials. The shape and size of the ball socket on the roller skin can be selected according to user needs. The roller extrusion granulator has a wide range of choices. The ball pressing shapes include pillow, semi-circular particle, rod, tablet pill, walnut, flat ball and square strip. The roller extrusion granulator is produced by a non-drying normal temperature process and is formed in one time.

Features:

1. A stirring device is installed at the feed port to effectively ensure uniform feeding.
2. The main frame of the box is equipped with an oiling and self-cleaning device to prevent textile materials from sticking to the roller skin.
3. The roller skin gap adjustment adopts step-by-step gear adjustment to ensure uniform gap and easy operation.
4. The roller skin alignment adopts gear internal spline adjustment to ensure neat alignment without misalignment.
5. The ball formation rate is as high as 95% or more, and the particle size is good.
6. The finished particles do not require secondary drying, are produced at room temperature, and have low moisture content.
7. One-time extrusion molding, high production efficiency.
8. The product particles are available in a variety of shapes and sizes.

Parameter:

Model	DZJ-Ⅰ1.0	DZJ-Ⅰ2.0	DZJ-Ⅰ3.0	DZJ-Ⅰ4.0	DZJ-Ⅱ1.0	DZJ-Ⅱ2.0
Production Capacity(t/h)	1~1.5	1.5~2.5	2~3	3~4	1~2	1.5~2.5
Power (kw)	15kw	18.5kw	22kw	30kw	15kw	18.5kw
Roller size	Φ150x220	Φ150x300	Φ186x300	Φ300x300	Φ150x220	Φ150x300
Feeding size	≦0.5mm	≦0.5mm	≦0.5mm	≦0.5mm	≦0.5mm	≦0.5mm
Finished granules size	Φ2.5~Φ10	Φ2.5~Φ10	Φ2.5~Φ10	Φ2.5~Φ20	Φ2.5~Φ20	Φ2.5~Φ20
Material moisture	2％~5％	2％~5％	2％~5％	2％~5％	2％~5％	2％~5％

Applications:

The roller extrusion granulator is mainly used to produce high, medium and low-concentration compound fertilizers (including ammonium chloride, ammonium sulfate, organic fertilizers, biological fertilizers) for various crops, especially rare earth, potash fertilizers, carbon fertilizers, etc. The granulation of ammonium and other series of compound fertilizers.

Packing and Shipping:

Wooden package or full 20GP/40HQ container；

The cooler is packaged in sturdy wooden crates to provide maximum protection during transportation. Each crate is designed to fit the specific dimensions of the machine and is lined with shock-absorbing materials to prevent any damages during handling and shipping.

The crates are also sealed tightly to prevent any dust or moisture from entering and potentially affecting the quality of the product. We take extra care to package the granulator in a way that it can withstand rough handling and long-distance transportation.

We ship our machine through reliable and trusted shipping companies to ensure timely and safe delivery. Our team works closely with these companies to track and monitor the shipment to make sure it reaches its destination without any delays or damages.

FAQ:

Q: What are your company's advantage ?

A: We are professional fertilizer equipment manufacturer with more than 20 years production experience and 10 years exports experience. We have own factory which can produce high quality equipment with competitive prices.

Q: Can i visit your factory to test the quality ?

A: Sure, we sincerely welcome to your visiting. We can arrange the equipment testing according to your production needs.

Q: Do you have customer reviews or case studies available ?

A: Yes, we have many successful overseas cases and customers feedback, such as Uzbekistan, Malaysia, Vietnam, India, Philippines and so on. If you need, you can add my whatsapp number and I will send them to you.
