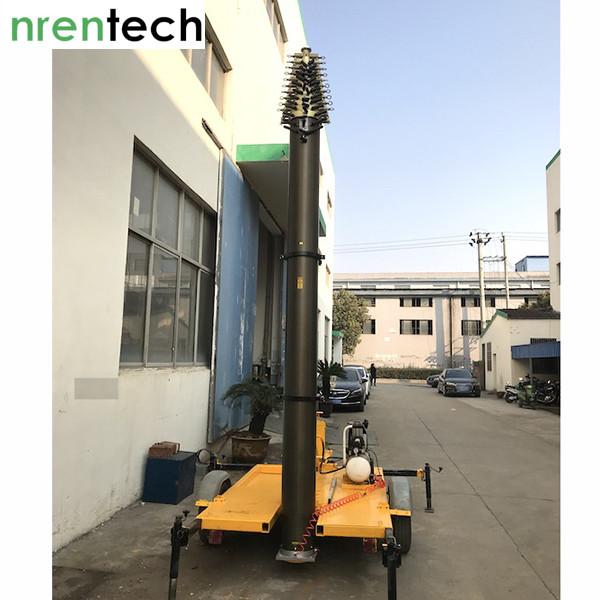

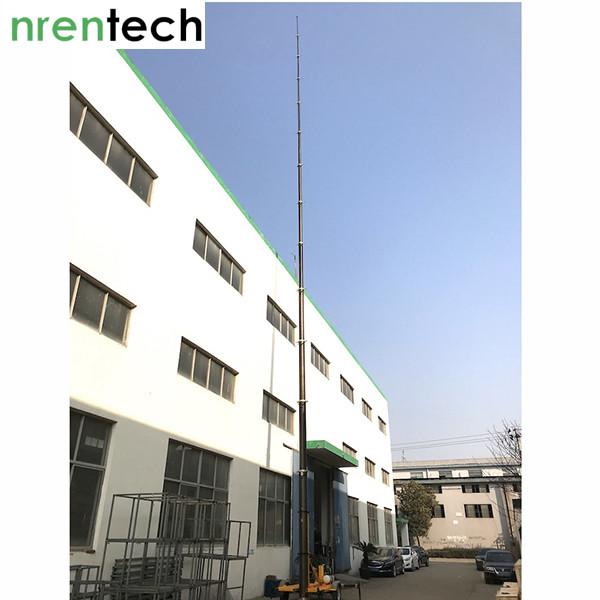

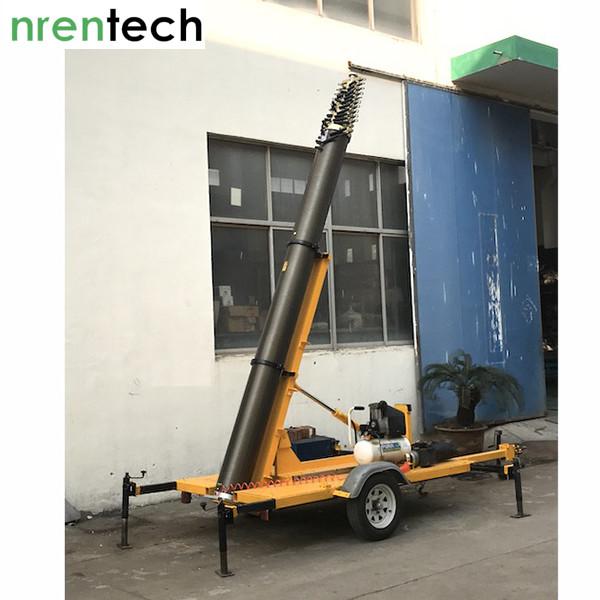

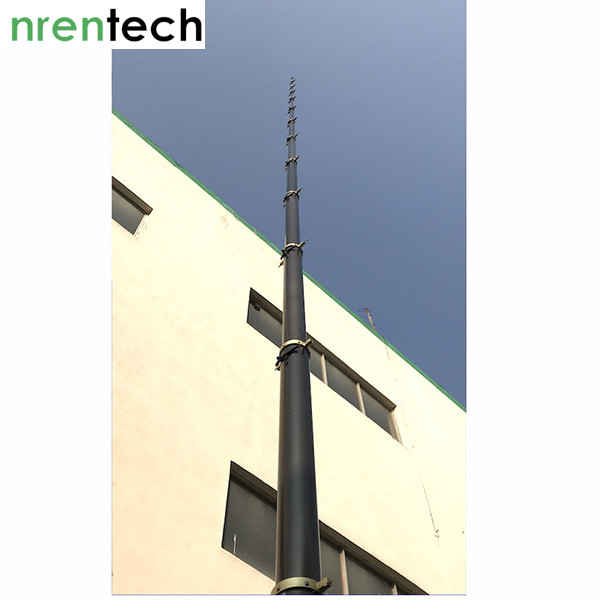

30m Lockable Pneumatic Telescopic Mast-15kg payload for mobile antenna/mobile radio broadcasting

Specifications

Brand Name :

NRENTECH

Model Number :

NR-4.4-30-15L-13S-36-279

Certification :

ISO/CE

Place of Origin :

CHINA

MOQ :

Price :

USD 20000/unit FOB Shanghai

Payment Terms :

T/T, Western Union

Supply Ability :

200 units/month

Delivery Time :

20 working days

Packaging Details :

wooden box.

extended height :

30m

retracted height :

4.4m

payloads :

15kg

working air pressure :

0.2Mpa/29PSI

working temperature :

-15~85℃

collar style :

locking collar

number of sections :

13 sections

section dia. :

36mm~279mm

default accessories :

1x top flange, 1xbottom flange, 1x air hose pipe

optional accessories :

side mounting brackets, guying lines, electric air compressor

unit weight :

380kg approx.

guarantee :

5 years

Description

30m Lockable Pneumatic Telescopic Mast 15kg Payloads, 4.4m closed height

Item #: NR-4.4-30-15L-13S-36-279
1> Extended Height: 30m
2> Retracted Height: 4.4m
3> Payloads: maximum 15kg@0.25Mpa/36PSI
4> Number of sections: 13 sections
5> Section diameter: 36~279mm
6> Materials: aluminum alloy 6063T5
7> Mast weight: 380kg
8> Working pressure: 0.25Mpa/36PSI recommended
9> Working temperature: -25~55 Celsius Degrees
10> Default accessories: top flange, bottom flange, air hose pipe, air control manual, retraction operating tool, eyebolts for guying ropes mounting

Charging accessories: electric air compressor, wireless remote control kit DC12V, guying ropes kits for 120km/h, quadpod ground mounting brackets, steel side mounting brackets

Data was updated on 2024-10-11

30m Lockable Pneumatic Telescopic Mast-15kg payload for mobile antenna/mobile radio broadcasting

30m Lockable Pneumatic Telescopic Mast-15kg Payload
NR-4.4-30-15L-13S-36-279

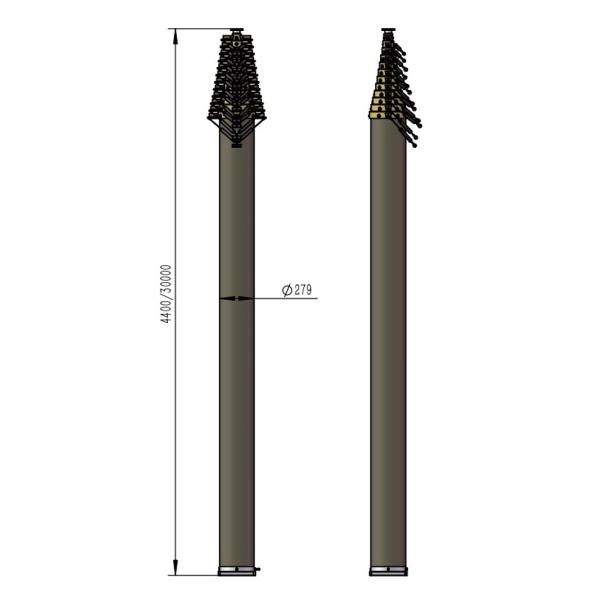

Extended Height	:	30	m	98.4	ft
Retracted Height	:	4.4	m	14.4	ft
Vertical Payload	:	15	kg	33	lb
Working air pressure	:	0.25	Mpa	37	PSI
Collar Type	:	Locking (Automatic Extention, Manual Retraction)
Inside Electric Wires	:
Number of sections	:	13
Top section diameter	:	36	mm	1.4	in
Basement section diameter	:	279	mm	11.0	in
Mast Weight	:	380	kg	836	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
		Retraction operation tool
Optional Accessories	:	Electric air compressor			AC220V/50hz
		Guying Rope Kits			5x4 (5 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 30m)
		Side Mounting Bracket			Steel Materials
		Ground mounting Quadpod			Stainless Materials
		Rotation Basement			Manual Rotation
		Remote control kit			12VDC
data update on 20241011
