Specifications
Brand Name :
NRENTECH
Model Number :
NR-3.3-15-300L-7S-140-279
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 10000/unit EXW
Payment Terms :
T/T
Supply Ability :
200 units per month
Delivery Time :
4 weeks
Packaging Details :
standard plywood shipping boxes
Extended Height :
15m (12m, 18m available)
Closed Height :
3.3m
Vertical Payloads :
300kg
Type :
lockable (automatic extension, manual retraction)
Sections :
7 section dia. 140~279mm
Materials :
Aluminum alloy 6063T5
Mast weight :
300kg approx.
Wind speed :
more than 120km/h with guide wires kits
Description

15m heavy duty pneumatic telescopic mast for mobile antenna tower 300kg payloads- lockable mast

15m Pneumatic Telescopic Mast 300kg payloads NR-3.3-15-300L-7S-140-279

15m Pneumatic Telescopic Mast-300kg payloads
Item #: NR-3.3-15-300L-7S-140-279
1> Extend height: 15m
2> Retract height: 3.3m
3> Vertical Payloads: 300kg @0.2Mpa/29PSI
4> Collar type: Manual Locking collar (automatic extension, manual retraction)
5> Number of sections: 7 sections/ section dia. 140mm~279mm
6> Material: aluminum alloy 6063T5
7> Net Weight: 280kg approx.

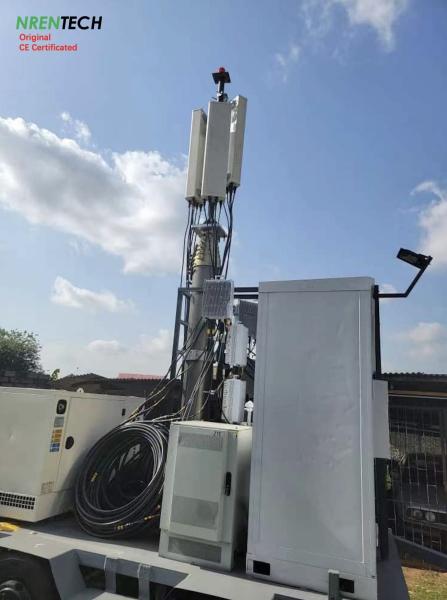

mast application for mobile telecommunication vehicle
Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual, 1x manual operation tool
Optional accessoires:
Vehicle side mounting brackets
AC220V/50Hz electric air compressor
Ground mounting tripods or quadpod
Wireless remote control
120km/h wind speed guying ropes mounting kits (3 layers x 4 directions, mounting radius 15m)

Leading time: within 20 days
data update on 20231005

15m heavy duty pneumatic telescopic mast for mobile antenna tower 300kg payloads- lockable mast

15m Lockable Pneumatic Telescopic Mast-300kg Payloads
1> Item #: 　NR-3.3-15-300L-7S-140-279
2> Extended Height: 　15m
3> Retracted Height: 　3.3m
4> Maximum Payloads: 　300kg
5> Type: T-Lockable, Anti-rotation
6> Inside Electric Wires 　Non
7> Number of Sections: 　7
8> Sections’ diameter*Thickness: 　140*5mm, 160*5mm, 180*5mm, 202*6mm, 227*6mm, 252*6mm, 279*7mm
9> Materials: Aluminum Alloy, Stainless steel fasteners
10> Working Air Pressure: 0.2Mpa/29PSI
11> Working Temperature: -25~55 Degrees Celsius
12> Mast Weight: 　280kg
13> Wind Loads: 　120km/h (3x4 guide ropes)
14> Default accessories: 1x top flange
1x bottom flange
1x air hose pipe
1x air controller
15> Optional Accessories: Ground Mounting Tripods/quadpod
Guying Rope Kits with Mounting Spikes
AC220V/50Hz Electric Air Compressor
Vehicle Side Mounting Bracket

Remote Controller Kit
