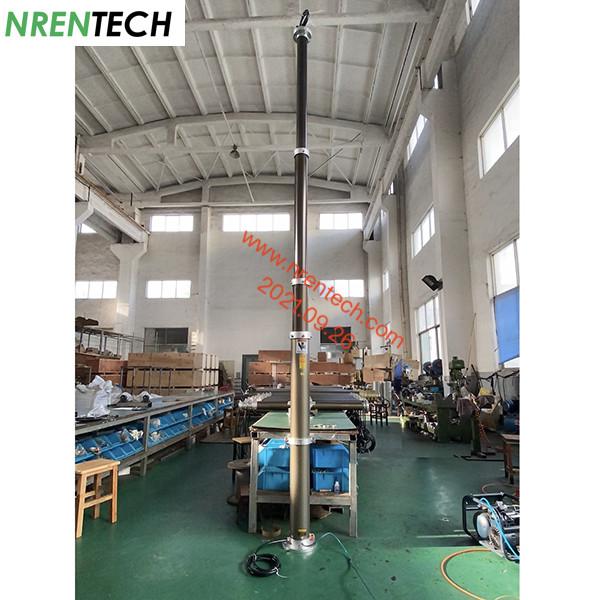

4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires
4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires
4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires
4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires
4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires
4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires
4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires
4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires
4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires
4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires
4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires
4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires
Specifications
Brand Name :
Nrentech
Model Number :
NR-1600-4500-50C
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD 1100~3500/unit FOB Shanghai
Payment Terms :
T/T, Western Union
Supply Ability :
200 units/month
Delivery Time :
5~8 working days
Packaging Details :
one unit per carton 190cmL x 30cmW x 30cmH
Extended Height :
4.5m
Retracted Height :
1.6m
Payloads :
50kg Max.
Inner spiral cables :
6x1.5mm^2 + 2xCAT5E
Working air pressure :
0.2Mpa/29PSI
Working temperature :
-15~85 ℃
Number of sections :
4
Section diameter range :
82mm~140mm
Materials :
aluminum alloy 6063T5
Accessories :
1x top flange, 1x bottom flange, 1x air hose pipe
Mast Weight :
35kg approx.
Packing :
one unit per carton 180cmL x 32cmW x 32cmH
Optional Accessories :
DC12V electric air compressor, air control
Other Height :
4.5m, 6m, 7.5m, 9m available
Description

4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires4.5m mobile pneumatic telescoping mast for CCTV vehicle-inside CCTV wires

Mast Data bellowed:


4.5m CCTV Pneumatic Telescopic Mast-50kg Payloads-inside CCTV wires
1> Item #: NR-1600-4500-50C　
2> Extended Height: 4.5m
3> Retracted Height: 1.6m
4> Maximum Payloads: 70kg
5> Type: Anti-rotation
6> Inside Electric Wires 2xCAT5E+6x1.5mm^2
7> Number of Sections: 4
8> Sections diameter*Thickness: 82*4mm, 98*4mm, 118*4mm, 140mm*5
9> Materials: Aluminum Alloy, Stainless steel fastners
10> Working Air Pressure: 0.2Mpa/29PSI
11> Working Temperature: -25~55 Degrees Celsius
12> Mast Weight: 35kg
13> Wind Loads: 80km/h
14> Default accessories: 1x top flange
1x bottom flange
1x air hose pipe
1x air controller
15> Optional Accessories:
DC12V or DC24V Electric Air Compressor
AC220V/50Hz Electric Air Compressor
Vehicle Side Mounting Brackets 2 pieces per set
