Specifications
Brand Name :
Nrentech
Model Number :
NR-3.4-15-400N-7S-160-316
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 10000/unit FOB Shanghai
Payment Terms :
T/T
Supply Ability :
200 units per month
Delivery Time :
30 days
Packaging Details :
Standard Plywood Cases, Free fumigation
Extended Height :
15m
Closed height :
3.4m
Vertical Payloads :
400kg @ 0.25Mpa/36PSI
Collar type :
non-lockable type (automatic extension and retraction)
Number of sections :
7
Materials :
aluminum alloy 6063T5
Mast weight :
380kg
Description

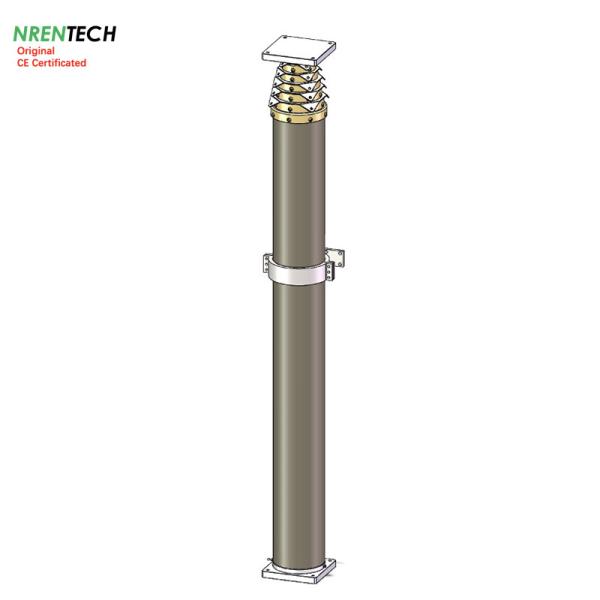

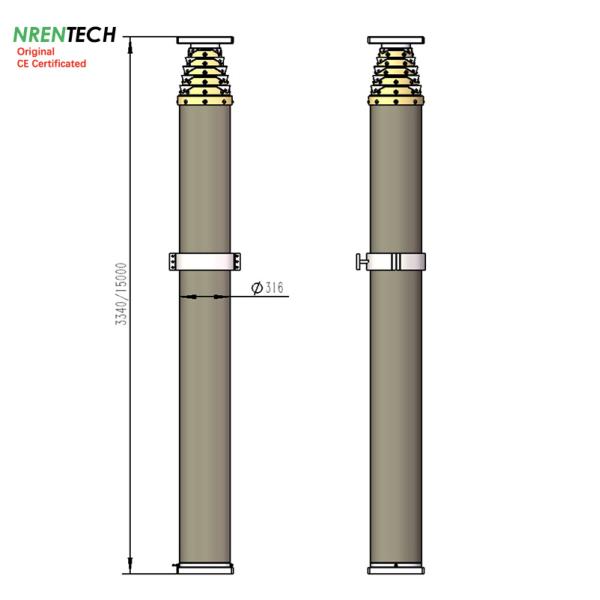

15m Pneumatic Telescopic Mast-400kg Payloads-3.4m closed height

15m Pneumatic Telescopic Mast-400kg payloads
3.4m closed height


1> Item #: NR-3.4-15-400N-7S-160-316
2> Extended Height: 15m
3> Retracted height: 3.4m
4> Payloads: 400kg @0.25Mpa/26 PSI
5> Collar type: non-lockable type, suitable for automatic extension /retraction for remote control
6> Working temperature:-15~85 ℃
7> Number of sections: 7 sections
8> Section dia. 140mm~316mm
9> Collar style: non-locking collar
10> Materials: aluminum alloy 6063T5
11> Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve panel, 4x4 guying ropes/wires mounting plate.
12> Mast Weight: 380kg approx.


Optional accessories:
Electric air compressor
steel side mounting bracket
ground mounting quadpod bracket
remote control kit
guying rope kits with mounting spikes


Leading time: 30 days
last updated on 2024-10-15

15m Non-Lockable Pneumatic Telescopic Mast-400kg Payload
NR-3.3-15-400N-7S-160-316
15m pneumatic telescopic mast 400kg payloads NR-3.4-15-400N-7S-160-316
Extended Height : 15 m 49.2 ft 　
Retracted Height : 3.4 m 11.2 ft 　
Vertical Payload : 400 kg 880 lb 　
Working air pressure : 0.25 Mpa 37 PSI 　
Collar Type : Non-Locking (Automatic Extention, Automatic Retraction)
Inside Electric Wires : 　 　 　 　
Number of sections : 7 　 　 　 　
Top section diameter : 160 mm 6.3 in 　
Basement section diameter : 316 mm 12.4 in 　
Mast Weight : 378 kg 832 lb 　
Working temperature : -25~65 Celsius Degree
Materials : Aluminum alloy 6063T5
Default accessories : top flange
bottom flange
air hose pipe
air control manual
Optional Accessories : Electric air compressor AC220~240V/50hz/60Hz
Guying Rope Kits 4x4 (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 15m)
Side Mounting Bracket Steel Materials
Ground mounting Quadpod Stainless Materials
Rotation Basement
Remote control kit DC12V
data update on 20240928
