Specifications
Brand Name :
NRENTECH
Model Number :
NR-2.4-12-150N-9S-98-279
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 20000/unit FOB Shanghai
Payment Terms :
T/T
Supply Ability :
200 units per month
Delivery Time :
30 days
Packaging Details :
Standard Plywood Cases for ocean or air shipment, Free fumigation
Extended Height :
12m
Closed Height :
2.4m
Payloads :
150kg @0.2Mpa/29PSI working air pressure
Collar Type :
non lockable type for remote control (automatic extension/ retraction)
Materials :
Aluminum alloy 6063T5
Mast weight :
213kg approx.
Default accessories :
top flange, bottom flange, air hose pipe, air control valve
Charging accessories :
electric air compressor, quadpod bracket, side mounting bracket, remote control kit.
Description

12m Non Lockable Pneumatic Telescopic Mast 150kg Payload 2.4m Closed Height NR-2.4-12-150N-9S-98-279

12m Non Lockable Pneumatic Telescopic Mast 150kg Payload 2.4m Closed Height
Item Code: NR-2.4-12-150N-9S-98-279


1> Extended Height: 12m
2> Retracted Height: 2.4m
3> Vertial Payload: 150kg @0.2Mpa/29PSI air pressure
4> Collars type: non lockable (automatic extension, automatic retraction)
5> Number of sections: 9 sections
6> Sections diameter range: 98~279mm
7> Materials: aluminum alloy6063T5
8> Mast weight: 213kg approx.
9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, guying mounting plate
10> Working air pressure: 0.2Mpa/29PSI recommend
10> Mast working temperature: -25~55 Celsius Degrees


11> Charging accessories:
AC220V/50hz compressor, 1500W approx.
vehicle side mounting brackets available NR-S279
ground mounting tripod bracket or quadpod bracket available
guying ropes kits: 1 layers, 4 ropes each layer, mounting radius 10m


Leading time: 30 days
One year guarantee
the lastest data has been updated on 20250415

Parameter:

12m Non-Lockable Pneumatic Telescopic Mast-150kg Payload
NR-2.4-12-150N-9S-98-279
12m Non-Lockable Pneumatic Telescopic Mast 150kg payload For Mobile Telecommunication Antenna Tower
Extended Height : 12 m 39.36 ft
Retracted Height : 2.4 m 7.9 ft
Vertical Payload : 150 kg 330 lb
Working air pressure : 0.2 Mpa 29 PSI
Collar Type : Non-Locking (Automatic Extension, Automatic Retraction)
Inside Electric Wires :
Number of sections : 9
Top section diameter : 98 mm 3.9 in
Basement section diameter : 279 mm 11.0 in
Mast Weight : 213 kg 469 lb
Working temperature : -25~65 Celsius Degree
Materials : Aluminum alloy 6063T5
Default accessories : top flange
bottom flange
air hose pipe
air control manual valve
guying ropes/wires mounting plates
Optional Accessories : Electric air compressor AC220~240V/50hz/60Hz, 1500W
Guying Rope Kits 1x4 (1 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 12m)
Side Mounting Bracket Steel Materials, 28kg approx.
Ground mounting Quadpod Stainless Materials, 60kg approx.
Rotation Basement
Remote control kit DC12V
data update on 20250415

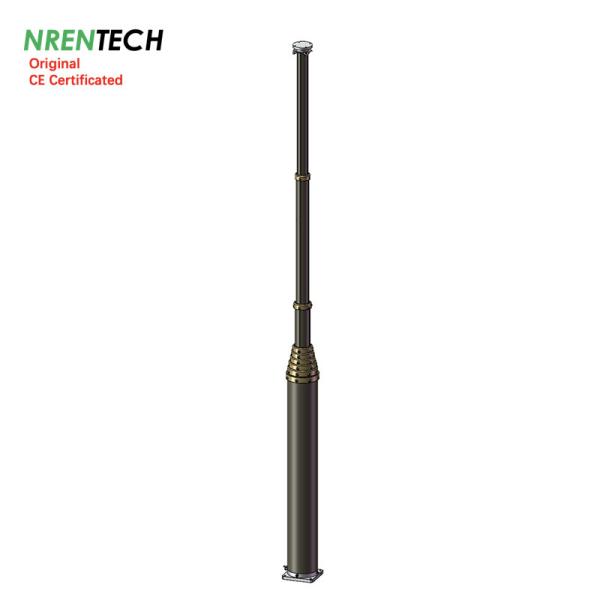

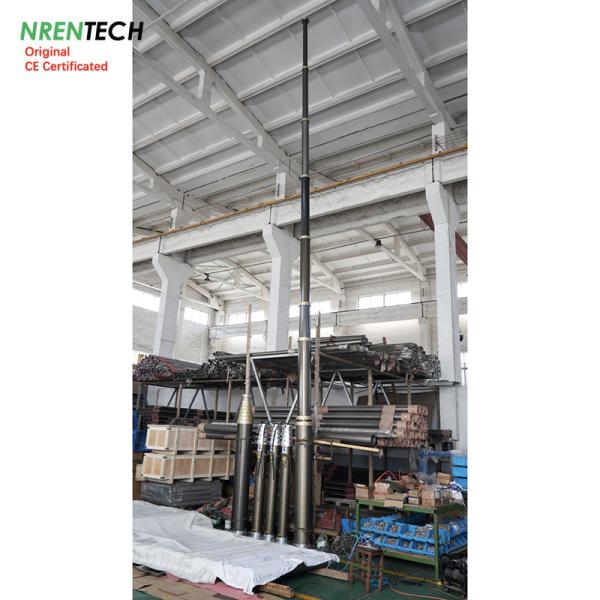

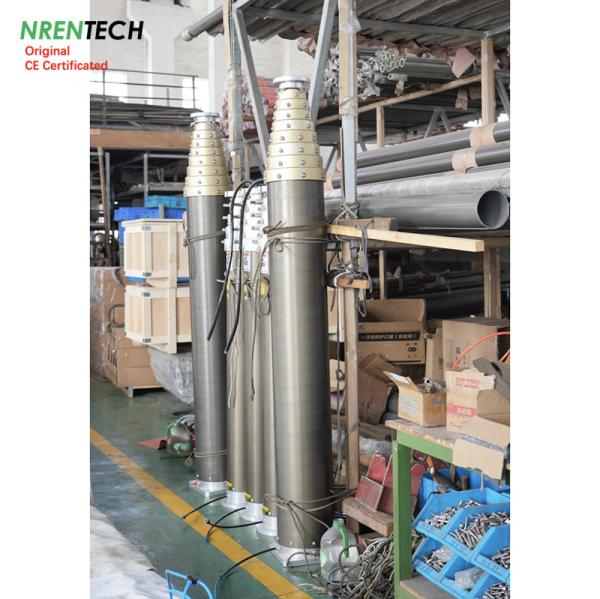

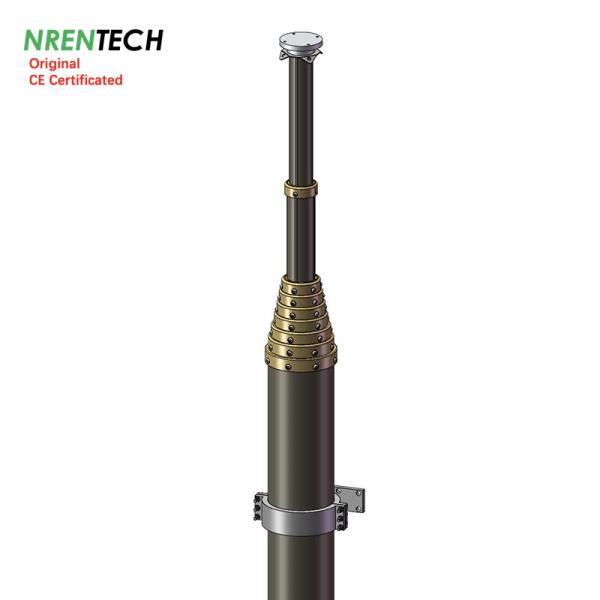

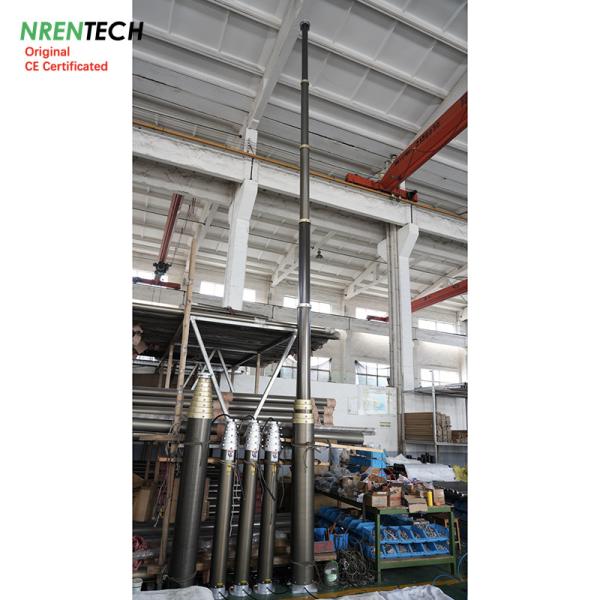

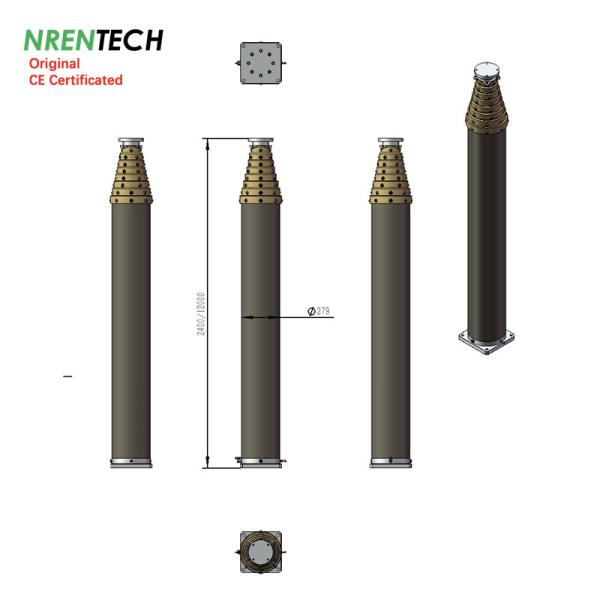

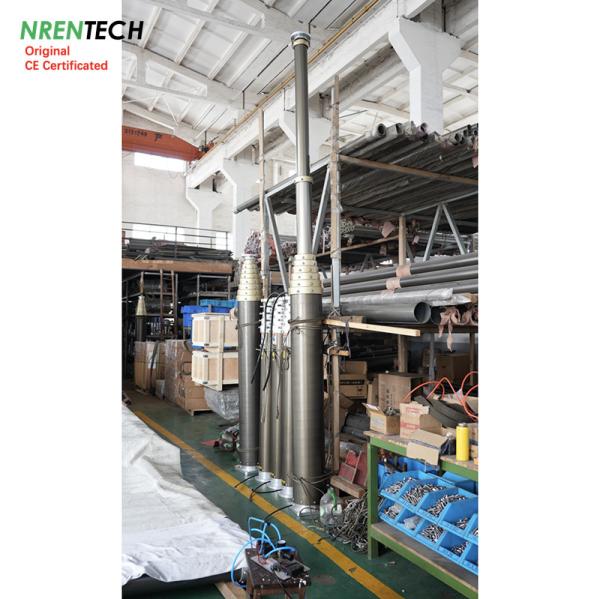

Reference Pictures:

12m Non-Lockable Pneumatic Telescopic Mast 150kg payload For Mobile Telecommunication Antenna Tower12m Non-Lockable Pneumatic Telescopic Mast 150kg payload For Mobile Telecommunication Antenna Tower12m Non-Lockable Pneumatic Telescopic Mast 150kg payload For Mobile Telecommunication Antenna Tower12m Non-Lockable Pneumatic Telescopic Mast 150kg payload For Mobile Telecommunication Antenna Tower12m Non-Lockable Pneumatic Telescopic Mast 150kg payload For Mobile Telecommunication Antenna Tower12m Non-Lockable Pneumatic Telescopic Mast 150kg payload For Mobile Telecommunication Antenna Tower
