NTC Epoxy Coated Thermistors MF5A-3B Series For Temperature Sensing
NTC Epoxy Coated Thermistors MF5A-3B Series For Temperature Sensing
NTC Epoxy Coated Thermistors MF5A-3B Series For Temperature Sensing
NTC Epoxy Coated Thermistors MF5A-3B Series For Temperature Sensing
NTC Epoxy Coated Thermistors MF5A-3B Series For Temperature Sensing
NTC Epoxy Coated Thermistors MF5A-3B Series For Temperature Sensing
Specifications
Brand Name :
XIXITRONICS
Model Number :
MF5A-3B Series
Certification :
RoHS , REACH
Place of Origin :
China
MOQ :
500pcs
Payment Terms :
T/T
Supply Ability :
3 Million pcs / Month
Delivery Time :
3-7 work days
Packaging Details :
In Bulk , Plastic Bag Vacuum
R 25℃ :
2KΩ-2.3 MΩ
B Value :
3200-4200K
R Tolerance :
0.5% , 1% , 2% , 3% , 5%
B Tolerance :
0.5% , 1% , 2% , 3%
Description

Epoxy Coated NTC Thermistors MF5A-3B Series

Features:
■ Low cost , Small size
■ Long term Stability and Reliability ■ High accuracy and Interchangeability
■ High Sensitivity and Fast thermal response ■ Thermally Conductive Epoxy coated

Applications:
■ Temperature sensing , control and compensation
■ Assembly into various probes of Temperature sensors
■ General Instrumentation applications

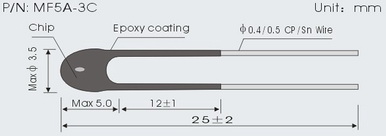

Dimensions:

NTC Epoxy Coated Thermistors MF5A-3B Series For Temperature Sensing NTC Epoxy Coated Thermistors MF5A-3B Series For Temperature Sensing

NTC Epoxy Coated Thermistors MF5A-3B Series For Temperature Sensing NTC Epoxy Coated Thermistors MF5A-3B Series For Temperature Sensing

Product specification:

Specification
R25℃
(KΩ)
B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMF5A-3-310-102□ 1 3200
0.75 - 3.0 typical in still air at 25℃
1 - 1.5 typical in liquids
-30～150
XXMF5A-3-338/350-202□
2
 3380/3500
XXMF5A-3-327/338-502□ 5 3270/3380/3470
XXMF5A-3-327/338-103□
10
 3270/3380
XXMF5A-3-347/395-103□ 10 3470/3950
XXMF5A-3-395-203□
20
 3950
XXMF5A-3-395/399-473□ 47 3950/3990
XXMF5A-3-395/399/400-503□
50
 3950/3990/4000
XXMF5A-3-395/405/420-104□ 100 3950/4050/4200
XXMF5A-3-420/425-204□ 200 4200/4250
XXMF5A-3-425/428-474□
470
 4250/4280
XXMF5A-3-440-504□ 500 4400
XXMF5A-3-445/453-145□ 1400 4450/4530
