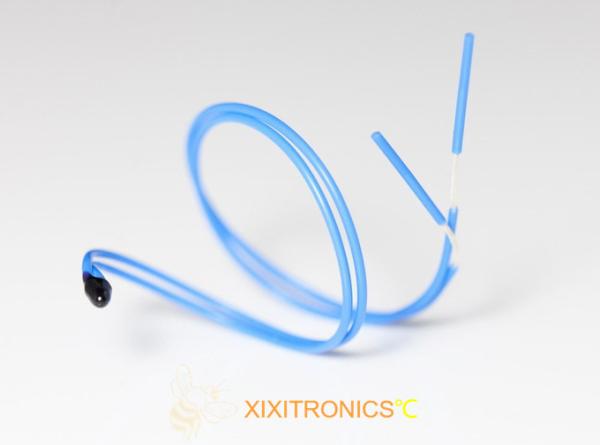

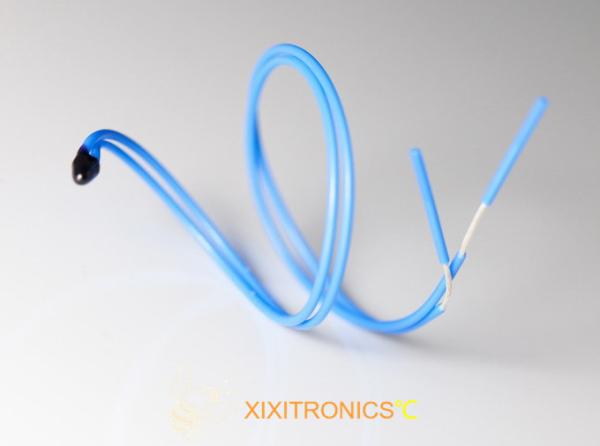

BMS car seat heat sensor Telfon Wire Epoxy Coated Thermistor MF5A-5 Series
BMS car seat heat sensor Telfon Wire Epoxy Coated Thermistor MF5A-5 Series
BMS car seat heat sensor Telfon Wire Epoxy Coated Thermistor MF5A-5 Series
BMS car seat heat sensor Telfon Wire Epoxy Coated Thermistor MF5A-5 Series
BMS car seat heat sensor Telfon Wire Epoxy Coated Thermistor MF5A-5 Series
BMS car seat heat sensor Telfon Wire Epoxy Coated Thermistor MF5A-5 Series
BMS car seat heat sensor Telfon Wire Epoxy Coated Thermistor MF5A-5 Series
BMS car seat heat sensor Telfon Wire Epoxy Coated Thermistor MF5A-5 Series
BMS car seat heat sensor Telfon Wire Epoxy Coated Thermistor MF5A-5 Series
BMS car seat heat sensor Telfon Wire Epoxy Coated Thermistor MF5A-5 Series
Specifications
Brand Name :
XIXITRONICS
Model Number :
MF5A-5 Series
Certification :
RoHS , REACH
Place of Origin :
China
MOQ :
500pcs
Payment Terms :
T/T
Supply Ability :
2 million pcs / month
Delivery Time :
5-8 work days
Packaging Details :
50pcs / bundle , 100pcs / bundle
R 25℃ :
0.5KΩ-2 MΩ
B Value :
3200-4200K
R Tolerance :
0.2% , 0.5%, 1% , 2% , 3% , 5%
B Tolerance :
0.5% , 1% , 2% , 3%
Description

Telfon Insulated Epoxy Coated Thermistors Car Seat Heating Sensor MF5A-5 Series

Features:
■ Low cost , Small size
■ Proven long term Stability and Reliability
■ High Sensitivity and Fast thermal response
■ High accuracy and Interchangeability, Thermally Conductive Epoxy coated

Applications:

■ Automotive car seat heater control and engine management

■ Steering Wheel Heating, Rearview Mirror Heating

■ Battery Management System(BMS),Battery chargers,Battery Pack

■ Temperature sensing , control and compensation

■ P.C. board mounting for over temperature protection
■ General Instrumentation applications

Dimensions:

BMS car seat heat sensor Telfon Wire Epoxy Coated Thermistor MF5A-5 Series BMS car seat heat sensor Telfon Wire Epoxy Coated Thermistor MF5A-5 Series

Product specification:

Specification
R25℃
(KΩ)
B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMF5A-2-310-102□ 1 3200
0.75 - 3.0 typical in still air at 25℃
1 - 2 typical in liquids
-30～150
XXMF5A-2-338/350-202□
2
 3380/3500
XXMF5A-2-327/338-502□ 5 3270/3380/3470
XXMF5A-2-327/338-103□
10
 3270/3380
XXMF5A-2-347/395-103□ 10 3470/3950
XXMF5A-2-395-203□
20
 3950
XXMF5A-2-395/399-473□ 47 3950/3990
XXMF5A-2-395/399/400-503□
50
 3950/3990/4000
XXMF5A-2-395/405/420-104□ 100 3950/4050/4200
XXMF5A-2-420/425-204□ 200 4200/4250
XXMF5A-2-425/428-474□
470
 4250/4280
XXMF5A-2-440-504□ 500 4400
XXMF5A-2-445/453-145□ 1400 4450/4530
