Specifications
Brand Name :
XIXITRONICS
Model Number :
MFT Series
Certification :
RoHS , REACH
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T
Supply Ability :
6 Million Pieces Per Year
Delivery Time :
5-10 work days
Packaging Details :
50pcs / bundle , 100pcs / bundle
R 25℃ :
2KΩ-2.3 MΩ
B Value :
3200-4200K
R Tolerance :
0.5% , 1% , 2% , 3% , 5%
B Tolerance :
0.5% , 1% , 2% , 3%
Description

Straight Probe Temperature Sensors For Refrigerator Freezer Heating Floor MFT Series

Features:
■ A glass-encapsulated thermistor / epoxy-cotated thermistor is sealed in a ABS,Nylon,Cu/ni ,SUS housing.
■ Proven long term Stability and Reliability

■ Insulation voltage is 1800VAC,2sec.

■ Insulation resistance is 500VDC ≥100MΩ
■ Various protection tube are available ( Plastic housings have excellent performance of being cold and heat resistant.)

■ PVC or TPE sleeved cable is recommended

■ PH,XH,SM,5264 or other connectors is recommended

Applications:
■ Air-conditioners (room and outdoor air) / Automobile air conditioners
■ Refrigerators , Freezers, Heating Floor . Recommendation as follows:
R25℃=10KΩ±1% B25/85℃=3435K±1% or
R0℃=16.33KΩ±2% B25/100℃=3980K±1.5% or
R25℃=100KΩ±1% B25/85℃=4066K±1%
■ Dehumidifiers and dishwashers (solid inside/surface)
■ Washer dryers, Radiators and showcase.

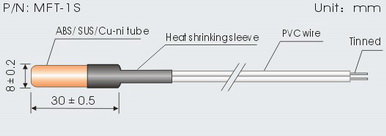

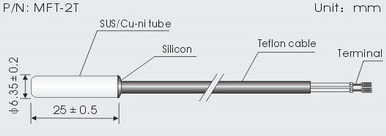

Dimensions:

Straight Probe Temperature Sensors For Refrigerator Freezer Heating Floor MFT Series Straight Probe Temperature Sensors For Refrigerator Freezer Heating Floor MFT Series

Straight Probe Temperature Sensors For Refrigerator Freezer Heating Floor MFT Series Straight Probe Temperature Sensors For Refrigerator Freezer Heating Floor MFT Series

Product specification:

Specification
R25℃
(KΩ)
B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFT-10-102□ 1 3200
2.5 - 5.5 typical in still air at 25℃
7 - 20
typical in stirred water
-30～80
-30～105
-30～125
-30～150
-30～180
XXMFT-338/350-202□
2
 3380/3500
XXMFT-327/338-502□ 5 3270/3380/3470
XXMFT-327/338-103□
10
 3270/3380
XXMFT-347/395-103□ 10 3470/3950
XXMFT-395-203□
20
 3950
XXMFT-395/399-473□ 47 3950/3990
XXMFT-395/399/400-503□
50
 3950/3990/4000
XXMFT-395/405/420-104□ 100 3950/4050/4200
XXMFT-420/425-204□ 200 4200/4250
XXMFT-425/428-474□
470
 4250/4280
XXMFT-440-504□ 500 4400
XXMFT-445/453-145□ 1400 4450/4530
