50K Commercial Coffee Machine NTC Threaded Temperature Probe For Boiler Tanks Water Heater
50K Commercial Coffee Machine NTC Threaded Temperature Probe For Boiler Tanks Water Heater
Specifications
Brand Name :
XIXITRONICS
Model Number :
MFP-S16 Series
Certification :
RoHS , REACH
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T
Supply Ability :
3 Million Pieces Per Year
Delivery Time :
7-12 work days
Packaging Details :
20pcs / bundle
R 25℃ :
2KΩ-2.3 MΩ
B Value :
3200-4200K
R Tolerance :
0.5% , 1% , 2% , 3% , 5%
B Tolerance :
0.5% , 1% , 2% , 3%
Description

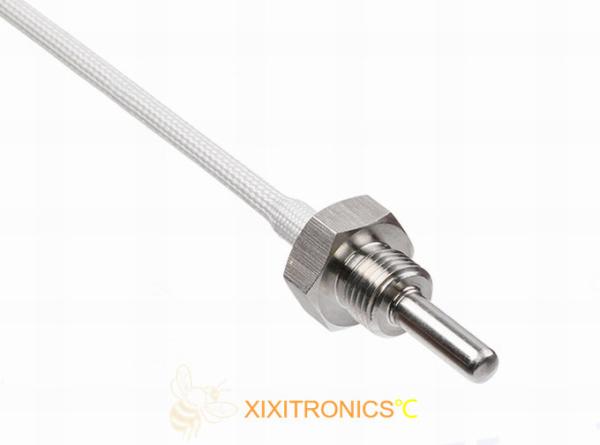

50K Commercial Coffee Machine Threaded Temperature Probe For Boiler Tanks, Water Heater, Coffee Maker

Brief Introduction:

MFP-S16 series adopts food-safety SS304 housing and uses epoxy resin for encapsulation cooperated with mature manufacture technology, make products have high accuracy, sensitivity, stability and reliability.It can be customized according to customer requirements,such as dimensions, materials, appearance, characteristics and so on. This series products can comply with environmental requirements and export requirements.

Features:
■ To install and fixed by screw thread , easy to install, size can be customized

■ A glass thermistor is sealed with epoxy resin, moisture and high temperature resistance.
■ Proven long term Stability and Reliability ,wide range of applications
■ Excellent performance of voltage resistance.

■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

■ Products are in accordance with the RoHS, REACH certification.


Applications:

■ Commercial coffee machine, Air Fryer and Baking Oven

■ Hot water boiler tanks, Water Heater
■ Automobile engines (solid), engine oil (oil), radiators (water)
■ Soybean milk machine
■ Power system

Characteristics:

1. Recommendation as follows:
R25℃=50KΩ±1% B25/50℃=3950K±1% or
R25℃=100KΩ±1% B25/50℃=3950K±1%
2. Working temperature range: -30℃～+105℃ or -30℃～+150℃ or -30℃～+180℃
3. Thermal time constant: MAX.10sec.

4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Teflon cable or XLPE cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized

Dimensions:

50K Commercial Coffee Machine NTC Threaded Temperature Probe For Boiler Tanks Water Heater 50K Commercial Coffee Machine NTC Threaded Temperature Probe For Boiler Tanks Water Heater

50K Commercial Coffee Machine NTC Threaded Temperature Probe For Boiler Tanks Water Heater

Product specification:

Specification
R25℃
(KΩ)
B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFP-S-10-102□ 1 3200
approx. 2.2 typical in still air at 25℃
Max10 typical in stirred water
-30～105
-30～150
-30～180
XXMFP-S-338/350-202□
2
 3380/3500
XXMFP-S-327/338-502□ 5 3270/3380/3470
XXMFP-S-327/338-103□
10
 3270/3380
XXMFP-S-347/395-103□ 10 3470/3950
XXMFP-S-395-203□
20
 3950
XXMFP-S-395/399-473□ 47 3950/3990
XXMFP-S-395/399/400-503□
50
 3950/3990/4000
XXMFP-S-395/405/420-104□ 100 3950/4050/4200
XXMFP-S-420/425-204□ 200 4200/4250
XXMFP-S-425/428-474□
470
 4250/4280
XXMFP-S-440-504□ 500 4400
XXMFP-S-445/453-145□ 1400 4450/4530
