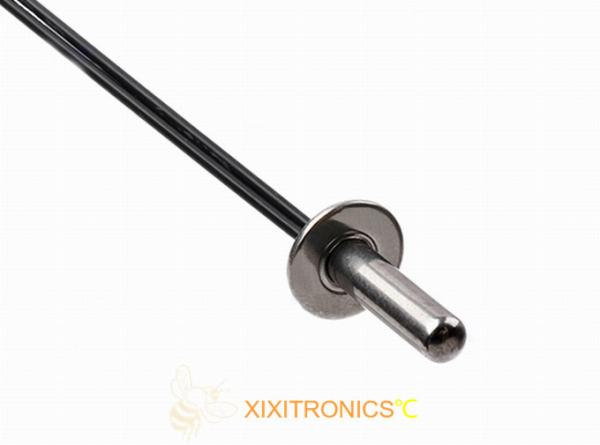

Food Safety SS304 Temperature Sensor for Electric Kettle, Coffee Machine, Milk Foam Machine, Milk Warmer MFP-13 Series

Brief Introduction:

MFP-13 series, with characteristics of simple constructure and cost-effective, uses epoxy resin with excellent performance of moisture-resistant for sealing.

It can be customized according to every customer requirements such as dimensions, appearance, characteristics and so on. Simply constructure and customizations can help customer install easily.

This series have stable and reliable performance, high sensitivity of measuring temperature.

The housing uses food safety SS304 tube, can contact food or drink directly, meet FDA and LFGB Certifications.

Features:
■ Easy installation, and the products can be customized according to your every single requirement.

■ A glass thermistor is sealed with epoxy resin. Good resistance of moisture and high temperature.
■ Proven long term Stability and Reliability ,wide range of applications

■ High sensitivity of measuring temperature
■ Excellent performance of voltage resistance.

■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

■ Products are in accordance with the RoHS, REACH certification.

Applications:

■ Electric Kettle, Coffee Machine

■ Milk Foam Machine, Milk Warmer

■ Electric oven, Electric Baked Plate

■ Hot water boiler tanks, Water Heater
■ Automobile engines (solid), engine oil (oil), radiators (water)

Characteristics:

1. Recommendation as follows:
R25℃=50KΩ±1% B25/50℃=3950K±1% or
R25℃=100KΩ±3% B25/50℃=3950K±1%
2. Working temperature range:
-30℃～+105℃ or
-30℃～+150℃ or
-30℃～+180℃

3. Thermal time constant: MAX.10sec.
4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Teflon cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized

Dimensions:

Product specification:
