Threaded Drill Bit with Semi-Ballistic Buttons T38 Diameter 76mm for Underground
Threaded Drill Bit with Semi-Ballistic Buttons T38 Diameter 76mm for Underground
Threaded Drill Bit with Semi-Ballistic Buttons T38 Diameter 76mm for Underground
Threaded Drill Bit with Semi-Ballistic Buttons T38 Diameter 76mm for Underground
Threaded Drill Bit with Semi-Ballistic Buttons T38 Diameter 76mm for Underground
Threaded Drill Bit with Semi-Ballistic Buttons T38 Diameter 76mm for Underground
Threaded Drill Bit with Semi-Ballistic Buttons T38 Diameter 76mm for Underground
Threaded Drill Bit with Semi-Ballistic Buttons T38 Diameter 76mm for Underground
Specifications
Brand Name :
OED/OEM
Model Number :
Threaded Drill Bit with Semi-Ballistic Buttons T38
Certification :
ISO 9001 2008
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Delivery Time :
20 days
Packaging Details :
Wooden Box
Color :
Yellow/Golden/Red/Black/Customized
Material :
Tungsten Carbide
Diameter :
76m
Length :
155mm
Weight :
3.5kgs
Skirt Design :
Retrac
Face Design :
Flat
Description

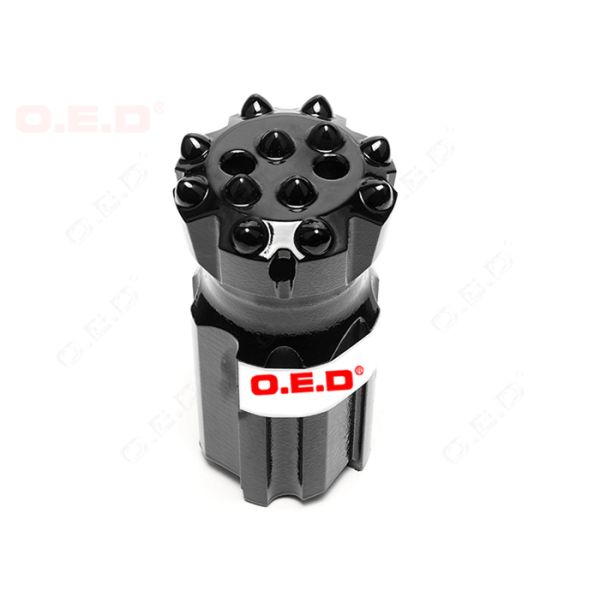

Threaded Drill Bit with Semi-Ballistic Buttons T38 Diameter 76mm for Underground

Diameter: 76mm
Length: 155mm
Gauge Buttons: 12mm*8
Front Buttons: 12mm*4
Skirt Design: Retrac
Carbide Design: Dome
Face Design: Flat
Water Holes: 2 on front
Weight: 3.50kg

12 Semi-Ballistic carbide inserts T38 threaded drill bits with flat face design, 76mm diameter and retrac skirt body for bench drilling and underground long hole drilling.

Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year, Offers industry-leading strength and penetration rates for more productivity,Excellent straightness and hole clean quality,Get max.drilling performance for rock drills with long life to save up fuel cost rate.

Threaded Drill Bit with Semi-Ballistic Buttons T38 Diameter 76mm for Underground

T38 Drill Bits for Bench Drilling, Long Hole Drilling Underground

Name Code No. Thread Diameter Gauge Front Skirt Design Weight

Threaded Button Bits

 Q9-57-T38 T38 57 6*10mm 3*10mm Standard 1.3 KGS
Q9-64-T38 T38 64 6*12mm 3*11mm Standard 1.7 KGS
Q9-64-T38-RC T38 64 6*12mm 3*11mm Retrac 1.8 KGS
Q9-70-T38 T38 70 6*12mm 3*11mm Standard 2.0 KGS
Q9-70-T38-RC T38 70 6*12mm 3*11mm Retrac 2.5 KGS
Q9-76-T38 T38 76 6*13mm 3*13mm Standard 2.4 KGS
Q9-76-T38-RC T38 76 6*13mm 3*13mm Retrac 2.5 KGS
Q9-89-T38 T38 89 6*14mm 3*13mm Standard 3.4 KGS
Q9-89-T38-RC T38 89 6*14mm 3*13mm Retrac 4.9 KGS
Q10-89-T38 T38 89 6*14mm 4*14mm Standard 3.3 KGS
Q10-89-T38-RC T38 89 6*14mm 4*14mm Retrac 3.0 KGS
Q12-64-T38 T38 64 8*10 mm 4*10mm Standard 1.6 KGS
Q12-64-T38-RC T38 64 8*10mm 4*10mm Retrac 1.8 KGS
Q12-89-T38 T38 89 8*11mm 4*11mm Standard 3.3 KGS
Q12-89-T38-RC T38 89 8*11mm 4*11mm Retrac 4.8 KGS
Q12-102-T38 T38 102 8*14mm 4*13mm Standard 4.6 KGS
Q12-102-T38-RC T38 102 8*14mm 4*13mm Retrac 6.7 KGS
Q13-76-T38 T38 76 8*11mm 5*11mm Standard 2.4 KGS
Q13-76-T38-RC T38 76 8*11mm 5*10 Retrac 2.9 KGS
Q14-76-T38 T38 76 8*11mm 6*11mm Standard 2.4 KGS
Q14-76-T38-RC T38 76 8*11mm 6*11mm Retrac 3.0 KGS
Q14-89-T38 T38 89 8*13mm 6*13mm Standard 3.3 KGS
Q14-89-T38-RC T38 89 8*13mm 6*13mm Retrac 5.5 KGS
Q14-102-T38 T38 102 8*14mm 6*14mm Standard 4.5 KGS
Q14-102-T38-RC T38 102 8*14mm 6*14mm Retrac 6.9 KGS
Q14-115-T38 T38 115 8*16mm 6*14mm Standard 5.3 KGS
Q17-89-T38 T38 89 9*11mm 8*10mm Standard 3.3 KGS
Q17-102-T38 T38 102 9*13mm 8*13mm Standard 4.4 KGS
Q18-115-T38 T38 115 9*14mm 9*13mm Standard 5.3 KGS

Cross Bits

 CB-64-T38 T38 64 12*20.6 Standard 1.7 KGS
CB-70-T38 T38 70 12.7*25 Standard 2.0 KGS
CB-76-T38 T38 76 12.7*25 Standard 2.4 KGS
CB-89-T89 T38 89 12.7*25 Standard 3.4 KGS
CB-102-T38 T38 102 16*25 Standard 4.6 KGS

Remarks: Other specifications are available according to customers' requirements
