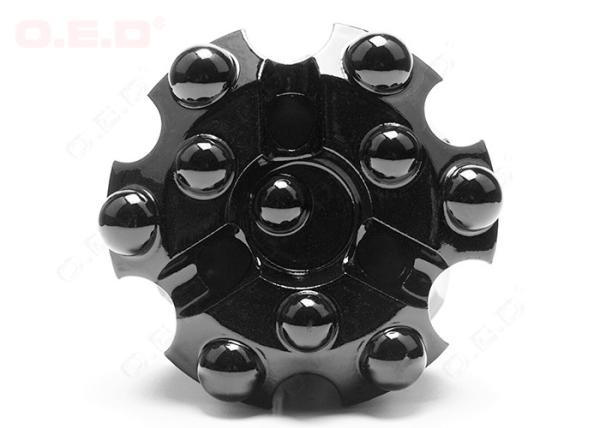

Retrac Threaded Button Bit Diameter T38 76mm for Unground Mining sites and Hard Granite
Retrac Threaded Button Bit Diameter T38 76mm for Unground Mining sites and Hard Granite
Retrac Threaded Button Bit Diameter T38 76mm for Unground Mining sites and Hard Granite
Retrac Threaded Button Bit Diameter T38 76mm for Unground Mining sites and Hard Granite
Specifications
Brand Name :
OED/OEM
Model Number :
T38-76
Certification :
ISO 9001 2008
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiable
Delivery Time :
15 days
Packaging Details :
Wooden Box
Skirt material :
42CrMo/YK05
Button bit diameter :
76mm
Thread :
T38
Carbide Material :
Tungsten Carbide YK05
Application :
rock drilling
Type :
Thread button bit
Gauge Buttons :
6
Front Buttons :
4
Description

Retrac Threaded Button Bit Diameter T38 76mm for Unground Mining sites and Hard Granite

Specification of T38-76 Retrac Drill Bit:

Diameter of drill bit Ø76mm

Thread type:T38

Weight:3kgs
Skirt Design: Straightrac
Face Design: Drop Center

Button Figuration

Gauge Buttons: 6pcs diameter:Ø13mm
Front Buttons: 4pcs diameter:Ø11mm

For benching and long-hole drilling underground, T38-76mm thread button bit is the important drill bit.


10 Dome carbide inserts T38 threaded drill bit with flat face,76mm diameter, straightrac skirt body to match extensio rods for bench drilling, underground long hole drilling.

Our T38-76 Drill Bits:

Diameter available: 64mm 76mm, 89mm

Skirt body: retrac type or normal(straight),
Face type: flat or uniface,
Carbide shape: Dome or ballistic

Please let us know your requirment of the drill bit, then we'll recommend the suitable one for you.

Following are the similar specification of the drill bit FYI.

T38 Drill Bits for Bench Drilling, Long Hole Drilling Underground

Name Code No. Thread Diameter Gauge Front Skirt Design Weight

Threaded Button Bits

 Q9-57-T38 T38 57 6*10mm 3*10mm Standard 1.3 KGS
Q9-64-T38 T38 64 6*12mm 3*11mm Standard 1.7 KGS
Q9-64-T38-RC T38 64 6*12mm 3*11mm Retrac 1.8 KGS
Q9-70-T38 T38 70 6*12mm 3*11mm Standard 2.0 KGS
Q9-70-T38-RC T38 70 6*12mm 3*11mm Retrac 2.5 KGS
Q9-76-T38 T38 76 6*13mm 3*13mm Standard 2.4 KGS
Q9-76-T38-RC T38 76 6*13mm 3*13mm Retrac 2.5 KGS
Q9-89-T38 T38 89 6*14mm 3*13mm Standard 3.4 KGS
Q9-89-T38-RC T38 89 6*14mm 3*13mm Retrac 4.9 KGS
Q10-89-T38 T38 89 6*14mm 4*14mm Standard 3.3 KGS
Q10-89-T38-RC T38 89 6*14mm 4*14mm Retrac 3.0 KGS
Q12-64-T38 T38 64 8*10 mm 4*10mm Standard 1.6 KGS
Q12-64-T38-RC T38 64 8*10mm 4*10mm Retrac 1.8 KGS
Q12-89-T38 T38 89 8*11mm 4*11mm Standard 3.3 KGS
Q12-89-T38-RC T38 89 8*11mm 4*11mm Retrac 4.8 KGS
Q12-102-T38 T38 102 8*14mm 4*13mm Standard 4.6 KGS
Q12-102-T38-RC T38 102 8*14mm 4*13mm Retrac 6.7 KGS
Q13-76-T38 T38 76 8*11mm 5*11mm Standard 2.4 KGS
Q13-76-T38-RC T38 76 8*11mm 5*10 Retrac 2.9 KGS
Q14-76-T38 T38 76 8*11mm 6*11mm Standard 2.4 KGS
Q14-76-T38-RC T38 76 8*11mm 6*11mm Retrac 3.0 KGS
Q14-89-T38 T38 89 8*13mm 6*13mm Standard 3.3 KGS
Q14-89-T38-RC T38 89 8*13mm 6*13mm Retrac 5.5 KGS
Q14-102-T38 T38 102 8*14mm 6*14mm Standard 4.5 KGS
Q14-102-T38-RC T38 102 8*14mm 6*14mm Retrac 6.9 KGS
Q14-115-T38 T38 115 8*16mm 6*14mm Standard 5.3 KGS
Q17-89-T38 T38 89 9*11mm 8*10mm Standard 3.3 KGS
Q17-102-T38 T38 102 9*13mm 8*13mm Standard 4.4 KGS
Q18-115-T38 T38 115 9*14mm 9*13mm Standard 5.3 KGS

Retrac Threaded Button Bit Diameter T38 76mm for Unground Mining sites and Hard Granite

Advantages:
1.Entire CNC processing procedure ensure the quality consistency

2.Military grade requirements of heat-treatment guarantee durability

3.Fast penetration rates, and straight and clean hole quality. Long life of drilling holes.
