R32-102mm Thread Button Bit Bench Drilling , Hard Rock Tools Long Life Time
R32-102mm Thread Button Bit Bench Drilling , Hard Rock Tools Long Life Time
Specifications
Brand Name :
OED/OEM
Model Number :
102MM (R32)
Certification :
ISO 9001 2008
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Delivery Time :
15 days
Packaging Details :
Wooden Box
Steel material :
42CrMo/YK05
Button bit diameter :
102mm
Thread :
R32
Material :
Tungsten Carbide
Use :
rock drilling
Type :
Thread button bit
Description

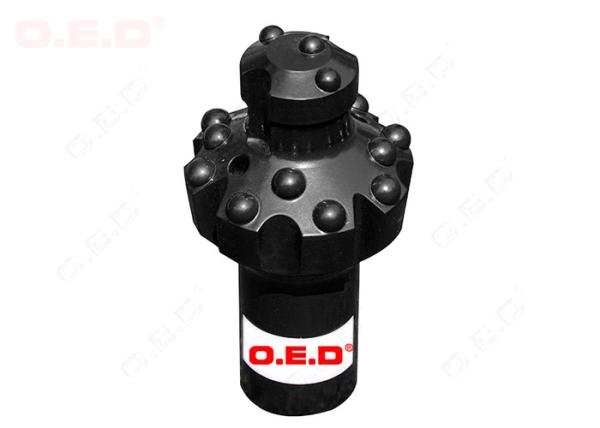

Integral Reaming Bit R32-102mm Thread Button Bit Bench Drilling Bit

Integral Reaming Bit R32-102mm specification:

Drill bit diameter Ø102mm

Thread type:R32

Weight:2.7kg

Advantages:
1.Entire CNC processing procedure ensure the quality consistency

2.Military grade requirements of heat-treatment guarantee durability

3.Fast penetration rates, and straight and clean hole quality. Long life of drilling holes.

Button Bit figuration

Carbide Buttons:15pcs

Button on the top:3pcs

R32-102mm Thread Button Bit Bench Drilling , Hard Rock Tools Long Life Time

We are professional in selecting the type of bits, such as button configuration, tapered degree, diameter, and so on. Please let us know the details of the application, in this case we will let you get the most appropriate products.

Polit Adaptors with T.C. Tipped head and Reaming Button Bits with diameters 64mm to 102mm(2 1/2”-4”). Other Reaming Equipment is available for larger hole size requirements.

Following are some similar reaming tools, FYI

Reaming Tools

6° Taper

Reaming bit

 Carbide dimension D Weight

Code No.
Gauge Front [mm] [in] [kg]
[No.] [mm] [No.] [mm]

8 9.5 4 8 64 2 1/2 0.90 43030
6 11 3 11 76 3 1.25 43031
8 12.7 4 11 89 3 1/2 1.80 43014
Pilot adapter Thread L D Weight Code No.
[mm] [in] [mm] [in] [kg]

R25 300 11 19/64'' 26 1 1/32'' 3.35 53089
R28 300 11 19/64'' 26 1 1/32'' 3.25 53085
R32 300 11 19/64'' 26 1 1/32'' 3.15 53083

12° Taper

Reaming bit

 Carbide dimension D Weight

Code No.
Gauge Front [mm] [in] [kg]
[No.] [mm] [No.] [mm]

8 12.7 4 9.5 89 3 1/2 2.00 43011
8 12.7 4 12.7 102 4 2.30 43012
8 14 4 14 115 4 1/2 2.68 43017
8 14 4 12.7 127 5 3.50 43013
Pilot adapter Thread L D Weight Code No.
[mm] [in] [mm] [in] [kg]

R32 255 10 3/64'' 40 1 37/64'' 2.4 53082
R38 265 10 25/64'' 40 1 37/64'' 2 53092

12° Taper
Reaming bit(Locking thread T12) Carbide dimension D Weight

Code No.
Gauge Front [mm] [in] [kg]
[No.] [mm] [No.] [mm]

8 12.7 4 11 102 4'' 3.50 43000
8 12.7 4 12.7 115 4 1/2'' 4.30 43002
8 14 4 12.7 127 5'' 5.10 43001

Reaming bit

Thread

 Carbide dimension D d Weight

Code No.
Gauge Front [mm] [in] [mm] [in]
[No.] [mm] [No.] [mm] [kg]

Hole Opener

 T38 8 14 7 11 102 4'' 51 2'' 4.00 63043
T38 8 14 7 12.7 127 5'' 67 2 5/8'' 8.80 63044
T45 8 14 7 12.7 127 5'' 73 2 7/8'' 8.30 63045
T38 8 16 7 14 152 6'' 102 4'' 15.4 63046
ST58 8 16 8 14 152 6'' 89 3 1/2'' 13.6 63047
T32 10 16 9 14 178 7'' 76 3'' 15.9 63048
T38 10 16 10 14 203 8'' 152 6'' 34.5 63049
