Metallized Film Fan Motor Run Capacitor Light Weight High Insulation Resistance
Metallized Film Fan Motor Run Capacitor Light Weight High Insulation Resistance
Metallized Film Fan Motor Run Capacitor Light Weight High Insulation Resistance
Metallized Film Fan Motor Run Capacitor Light Weight High Insulation Resistance
Metallized Film Fan Motor Run Capacitor Light Weight High Insulation Resistance
Metallized Film Fan Motor Run Capacitor Light Weight High Insulation Resistance
Metallized Film Fan Motor Run Capacitor Light Weight High Insulation Resistance
Metallized Film Fan Motor Run Capacitor Light Weight High Insulation Resistance
Metallized Film Fan Motor Run Capacitor Light Weight High Insulation Resistance
Metallized Film Fan Motor Run Capacitor Light Weight High Insulation Resistance
Specifications
Brand Name :
BSD
Model Number :
CBB61
Certification :
UL , CE , TUV
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
0.15usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs/month
Delivery Time :
20days after received payment
Packaging Details :
100pcs in one carton
Class of operation :
Class B ( 10000h) , Class C (3000h)
Reference standards :
IEC60252
Class of safety protection :
P0
Voltage range :
200~500VAC
Capacotance tolerance :
0.5uf~25uf
Description

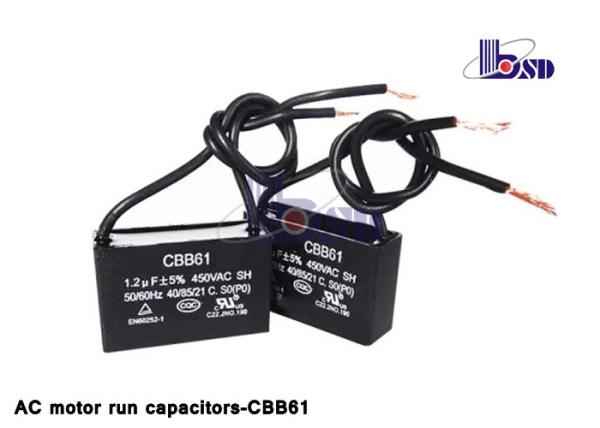

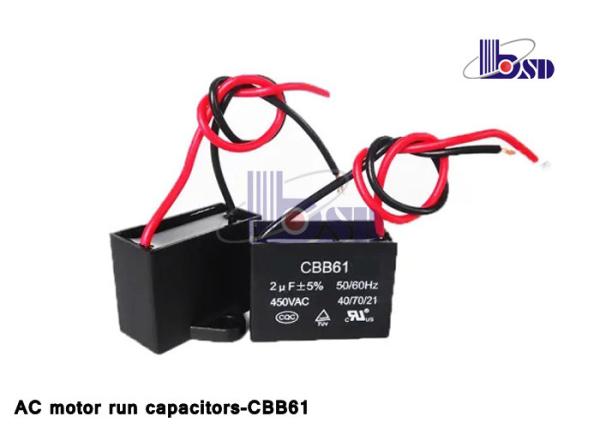

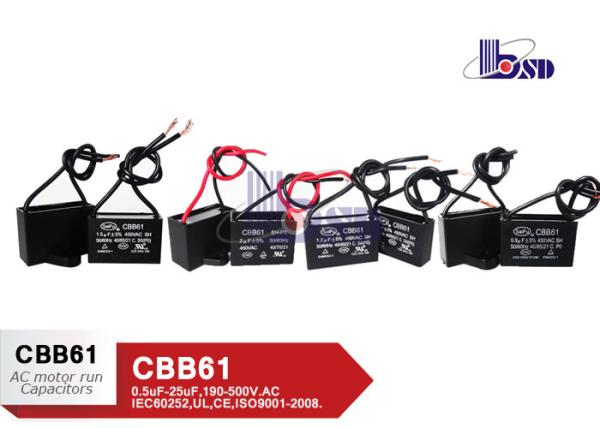

CBB61 Metallized film Ac Motor run capacitor for fan

Introduction:

Use of plastic shell insulation, epoxy resin sealed; Product with light weight ,high insulation resistance, high withstand voltage,low dissipation factor, good self healing , stable performance.

Capacitance (UF) 250VAC 350VAC 450VAC
L*W*H L*W*H L*W*H
1uf 31*9*17 32*10*19.5 36*10.5*20
1.5uf 31*9*17 32*11*21 36*12.5*24
2uf 31*10*19 36*12.5*24 36*15*25
2.5uf 32*11*21 36*15*25 38*17*28
3uf 36*12*22 36*16*28 38*19.5*31
3.5uf 36*12*22 38*17*28 47*17*28
4uf 36*12.5*24 38*18.5*29 48*19*28
4.5uf 36*12.5*24 38*19.5*31 47*20*31
5uf 37*13.5*24 48*17*28 47*20*31
6uf 38*16*27 38*19.5*31 47*23*35
6.5uf 38*16*27 47*19*31 47*23*35
8uf 48*17*28 47*23*32 47*27*37
10uf 47*20*31 47*24*37 58*26*38
12uf 48*19*28 48*28*40 58*28*40

Voltage range 110Vac~450Vac, 50/60HZ
Capacitance range 0.1uf~80uf
Capacitance tolerance ±5% , ±10 %
Withstand voltage T-T 2Un/60s
T-C 2Un+1000Vac/60s(≥2200V)
Dissipation factor ≤0.004, 1000Hz
Altitude ≤2000m
Reference standard GB/T3667.1, IEC/EN60252.1 , UL810, VDE0560-8

Product show :

Metallized Film Fan Motor Run Capacitor Light Weight High Insulation Resistance

Metallized Film Fan Motor Run Capacitor Light Weight High Insulation ResistanceMetallized Film Fan Motor Run Capacitor Light Weight High Insulation ResistanceMetallized Film Fan Motor Run Capacitor Light Weight High Insulation Resistance
