GC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera Application
GC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera Application
GC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera Application
GC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera Application
GC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera Application
GC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera Application
GC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera Application
GC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera Application
GC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera Application
GC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera Application
Specifications
Brand Name :
Sinoseen
Model Number :
SNS51619-V1.1
Certification :
RoHS
Place of Origin :
Shenzhen,China
MOQ :
3
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3weeks
Packaging Details :
Tray+Anti-static bag in carton box
Type :
5mp camera module
Sensor :
1/5 inch
Resolution :
5MP 2592(H) x 1944(V)
Dimensions :
(customizable)
Lens FOV :
80°(optional)
Focus Type :
Auto focus
Interface :
mipi camera module
Feature :
high-definition
Description

GC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera Application

GC5035 5MP mipi camera module

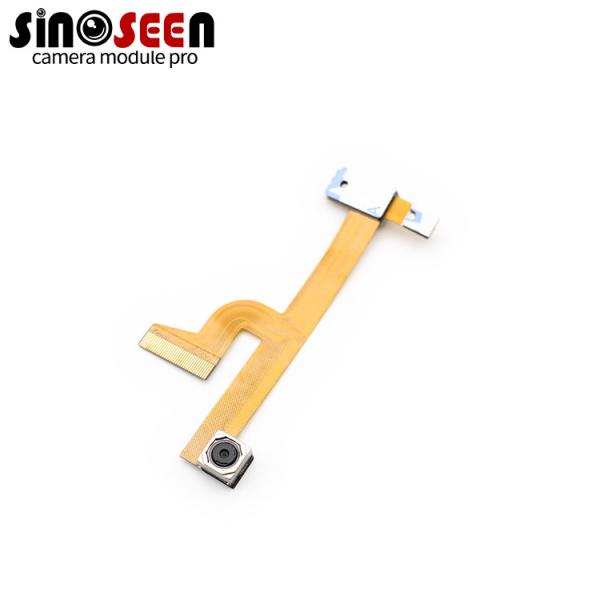

This is a 5MP dual-lens camera module, often used in mobile camera applications. It has an auto-focus mechanism that allows the camera module to automatically adjust the focus to capture clear images of objects at different distances. With its dual-lens configuration, the camera module offers enhanced depth sensing capabilities and other advanced imaging features. A dual-lens setup can enable features like portrait mode, in which the camera captures images with a shallow depth of field, creating the effect of a blurred background while keeping the subject in focus. This mod is suitable for capturing high quality photos and videos for mobile camera applications.

Specification
Model No

SNS51619-V1.1
Sensor 1/5’’ inch
Pixel 5 Mega Pixel
Most effective pixels 2592(H) x 1944(V)
Pixel Size 1.2µm x 1.2µm
Resolution & Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Fixed focus
S/N ratio 36dB
Dynamic range 72 dB @ 8x gain
Sensitivity 690mV / lux-sec
Adjustable parameter Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure
Lens TTL: 23.89MM
Lens Size: 1/3 inch
DFOV: 80°
Thread Size: M12*P0.5
Audio frequency Optional
Power supply USB BUS POWER
Power consumption DC 5V, 200mW
Main chip DSP/SENSOR/FLASH
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Support
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
USB cable length Default
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

GC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera ApplicationGC5035 5MP Dual Lens Camera Module Autofocus MIPI Interface Mobile Camera Application

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Camera Module Application Areas

Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
