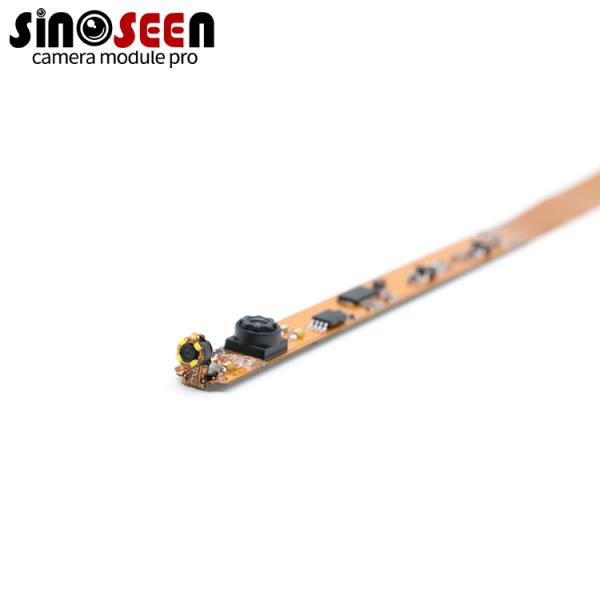

Ultra Small 1MP Mipi Camera Module OV9734 Low Power Consumption Medical Endoscope
Ultra Small 1MP Mipi Camera Module OV9734 Low Power Consumption Medical Endoscope
Ultra Small 1MP Mipi Camera Module OV9734 Low Power Consumption Medical Endoscope
Ultra Small 1MP Mipi Camera Module OV9734 Low Power Consumption Medical Endoscope
Ultra Small 1MP Mipi Camera Module OV9734 Low Power Consumption Medical Endoscope
Ultra Small 1MP Mipi Camera Module OV9734 Low Power Consumption Medical Endoscope
Ultra Small 1MP Mipi Camera Module OV9734 Low Power Consumption Medical Endoscope
Ultra Small 1MP Mipi Camera Module OV9734 Low Power Consumption Medical Endoscope
Specifications
Brand Name :
Sinoseen
Model Number :
SNS-DZ996-V2.0
Certification :
RoHS
Place of Origin :
Shenzhen,China
MOQ :
3
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3weeks
Packaging Details :
Tray+Anti-static bag in carton box
Type :
camera module
Sensor :
1/9" Omnivision OV9734
Resolution :
1MP 1280(H) x 720(V)
Dimensions :
Customizable
Lens FOV :
(optional)
Focus Type :
Fixed focus
Interface :
MIPI
Feature :
Endoscope camera module
Description

Ultra Small Binocular 1MP OV9734 sensor Ultra Low Power MIPI Camera Module for Medical Endoscopes

OEM Customizable Medical Endoscope Camera Module Vision Solution

1MP Camera Module

This OV9734 camera module is a small camera module specially designed for medical endoscope use. It has 1 MEGAPIXEL (MP) resolution and uses MIPI interface for data transfer. Known for its low power consumption and high image quality, the OV9734 camera module is ideal for battery-powered applications. This enables it to capture high-quality images with low noise and excellent low-light performance.
The camera module also features a low-power mode to further reduce power consumption. This makes it ideal for battery-operated medical endoscopes, where power consumption is a key factor.
Its small size and low power consumption make it ideal for battery-powered applications, while its high image quality and low-light performance ensure detailed images are captured even in challenging lighting conditions.

Specification
Module No SNS-DZ996-V2.0
Pixel Size 1.4μm x 1.4μm
Effective Pixels 1MP 1280(H) x 720(V)
Video output Raw Bayer10bit/8bit
Active Array Size Video Rate 30FPS
Image Sensor 1/9"
Sensor Type Omnivision OV9734
Lens view (optional)
TV Distortion <1%
AEC Support
AEB Support
AGC Support
Operating voltage AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature -20～70℃
Storage temperature 0～50℃
Dimensions Customizable
