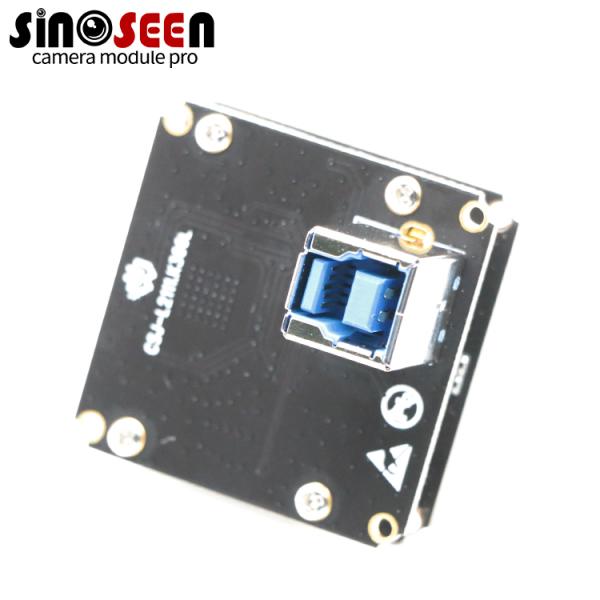

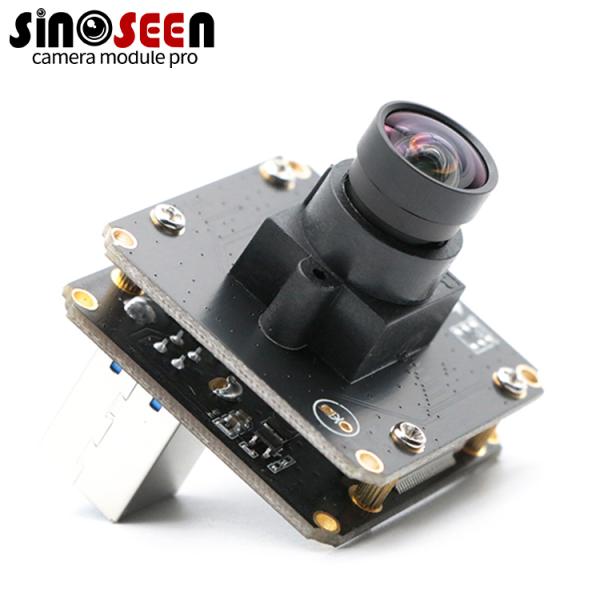

Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module
Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module
Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module
Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module
Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module
Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module
Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module
Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module
Specifications
Brand Name :
Sinoseen
Model Number :
SNS-IMX577-V1.0
Certification :
RoHS
Place of Origin :
Shenzhen,China
MOQ :
200
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3weeks
Packaging Details :
Tray+Anti-static bag in carton box
Type :
12mp camera module
Sensor :
IMX577/377
Resolution :
12MP 4072 (H) x3064 (V)
Dimensions :
(customizable)
Unit cell size :
1.55 um (H) x 1.55 um (V)
Focus Type :
Fixed focus
Interface :
USB3.0
Feature :
FHD
Description

sony IMX577/377sensor 12MP FHD/HDR 4K USB3.0 camera module

camera module HDR

This is a new product developed by us, using Sony IMX577 sensor, the interface is USB3.0, and it can also be compatible with USB2.0. It uses Sony's stacked CMOS image sensor technology to achieve high speed and is equipped with an electronic shutter with variable integration time.
This product has 12MP high pixel, high frame rate, high resolution. It is characterized by low power consumption.
It can be used in monitoring, such as security surveillance cameras, 360 panoramic driving recorders, consumer cameras, high-definition video, drones, sports DV and other imaging fields. Suitable for indoor and outdoor use, industrial cameras, video conferencing.
We can adjust the size and shape according to your requirements, besides, we have various FOVs from 40° to 200°, you can define the pinout/FOV/size by yourself.

Specification
Effective Pixels 4072 (H) x3064 (V)
Image Sensor
(Type 1/2.3)12.3 Mega-pixel CMOS
Sensor Type Sony IMX577
Chip size 7.564 mm (H) × 5.476 mm (V)
Substrate material
Silicon
operating temperature
-20 to +75 ˚C
storage temperature
-30 to +80 ˚C
Input frequency range
27.0 MHz
Dimensions

Customizable

​​

Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module

Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Camera Module Application Areas

Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
