MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters
MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters
MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters
MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters
MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters
MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters
MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters
MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters
Specifications
Brand Name :
Sinoseen
Model Number :
SNS-DualOV9732-M1.0
Certification :
RoHS
Place of Origin :
Shenzhen,China
MOQ :
3
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3weeks
Packaging Details :
Tray+Anti-static bag in carton box
Type :
USB camera module
Sensor :
Omnivision OV9732
Resolution :
2x1MP 1280x720x2
Dimensions :
customizable
Lens FOV :
60°(optional)
Focus Type :
Fixed focus
Interface :
MIPI
Feature :
Dual lens
Description

MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters

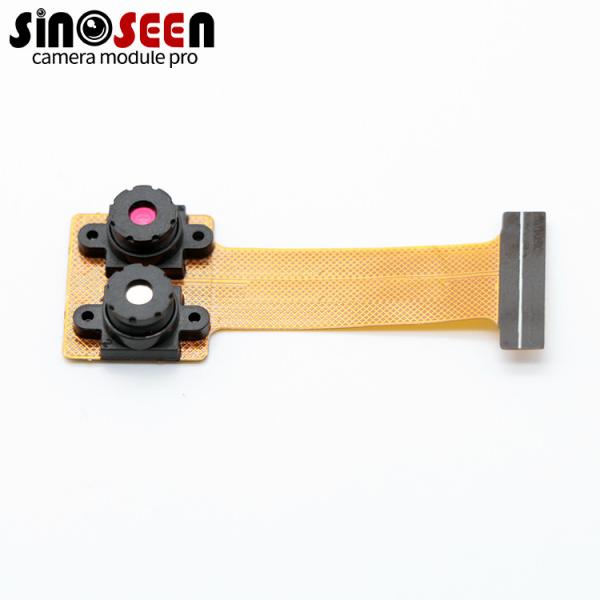

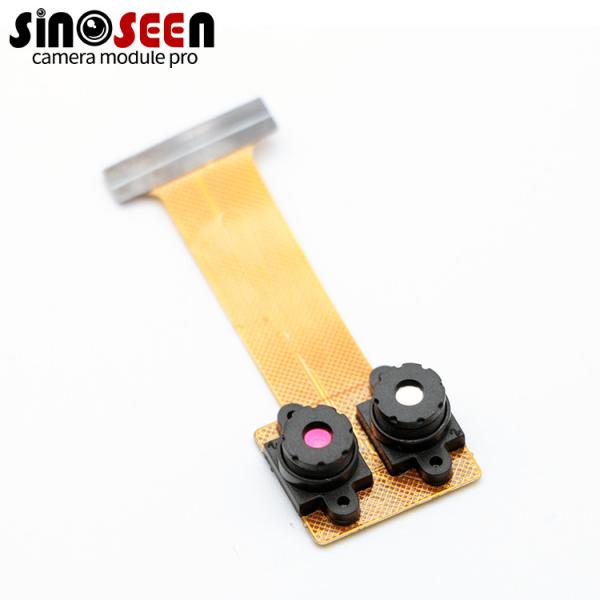

Dual Lens MIPI CSI2 Interface Flexible FPC 1MP 720P Camera Module With Omnivision OV9732 CMOS Sensor

This is our newly developed MIPI binocular camera module. It uses the OV9732 chip. The two lenses use different filters, 650nm and 850nm. You can choose different according to your actual needs. The filter, such as 940nm.


OV9732 is a 1/4 inch chip, 720P HD, and outputs color images. It has the following features:

support for image sizes:full size(1280x720),VGA(640x480),2x2 RGB binning (640x360)

support for output formats:10-bit RAW output with 1-lane MIPI and DVP

on-chip phase loch loop(PLL)

programmable controls for frame rate,mirror and flip,gain/expourse,and windowing

support for horizontal and vertical sub-sampling

low power module(LMP) function

capable of maintaining register values at software power down

standard SCCB interface

GPIO tri-state configurability and programmable polarity

FSIN

image quality control:defect pixel correction(DPC) and automatic black level calibration(ABLC)

Main applications: IP camera,life style camera,surveillance,motion camera

Specification

Model No

SNS-DualOV9732-M1.0

Sensor

1/4’’ Omnivision OV9732 CMOS

Pixel

1 Mega Pixel

Most effective pixels

2560(H) x 720(V)

Pixel Size

3.0µm x 3.0µm

Image area

3888µm x 2208µm

Compression format

MJPG / YUY2

Resolution

See above

Frame Rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus/Manually Adjustable

S/N ratio

39dB

Dynamic range

72dB

Sensitivity

2066mV / lux-sec

CRA (Chief Ray Angle)

9 degree

Lens

Lens Size: 1/4 inch

FOV: 60°

Thread Size: M12*P0.5

Audio frequency

Optional

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Not Supported

Dimension

Customizable

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

MIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm FiltersMIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm FiltersMIPI CSI2 Flexible FPC Dual Camera Module 1MP 720P 650nm 850nm Filters
