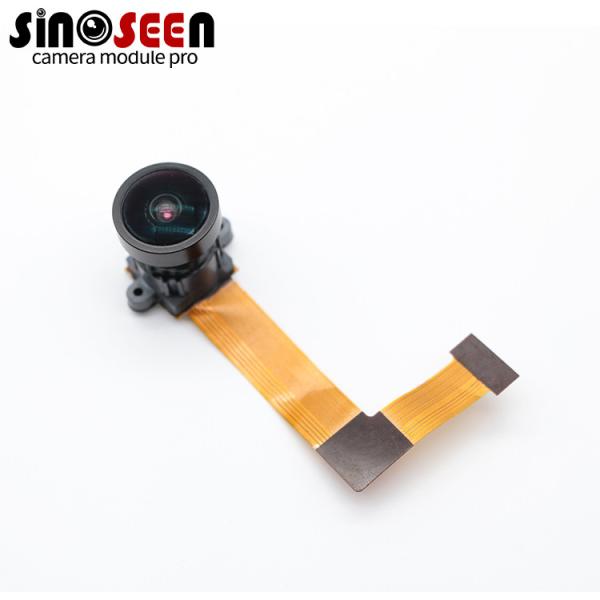

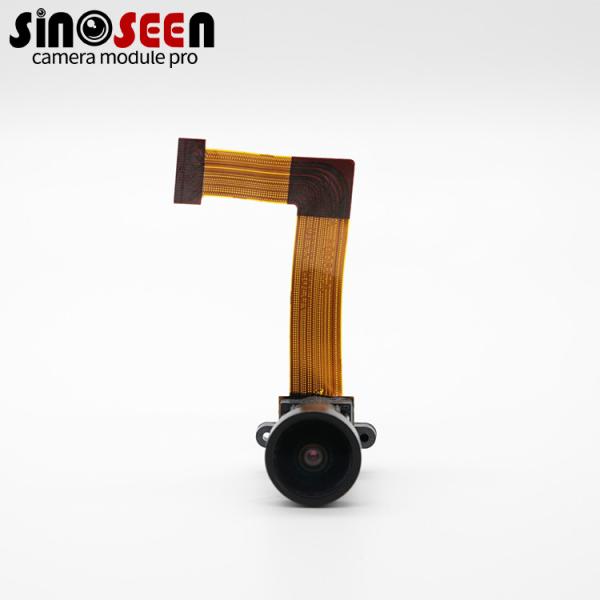

High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635
High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635
High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635
High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635
High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635
High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635
High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635
High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635
Specifications
Brand Name :
Sinoseen
Model Number :
SNS-1MP-OV10635-M1.0
Certification :
RoHS
Place of Origin :
Shenzhen,China
MOQ :
3
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3weeks
Packaging Details :
Tray+Anti-static bag in carton box
Type :
MIPI camera module
Sensor :
1/2.7" Omnivision OV10635
Resolution :
1MP 1280Hx800V
Dimensions :
customizable
Lens FOV :
90°(optional)
Focus Type :
Fixed focus
Interface :
MIPI
Feature :
HDR
Description

High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635
Customizable 1MP WXGA High Dynamic Range HD MIPI Camera Module With Omnivision OV10635

MIPI Camera Module
This is a 1MP MIPI camera module with Omnivision sensor OV10635,OV10653 is a 1/2.7" CMOS WXGA (1280x800) high dynamic range (HDR) high definition (HD) image sensor.It support for image sizes:WXGA (1280x800),HD 720p (1280x720),WVGA (752x480),VGA (640x480),600x400,CIF (352x288),QVGA (320x240).
It's high sensitivity and has HDR fuction,also its operating temperature range is -40 to 105°C.


Specification

Module No

SNS-1MP-OV10635-M1.0

Pixel Size

4.2μm x 4.2μm

Effective Pixels

1280H×800H

Video output

Raw Bayer10bit/8bit

Active Array Size Video Rate

30FPS

Image Sensor

1/2.7"

Sensor Type

Omnivision OV10635

Lens view

FOV90°(optional),F/N(optional)

TV Distortion

<1%

AEC

Support

AEB

Support

AGC

Support

Operating voltage

AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V

Operating temperature

-40～105℃

Storage temperature

0～70℃

Dimensions

Customizable

High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

FAQ:


Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.


Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
