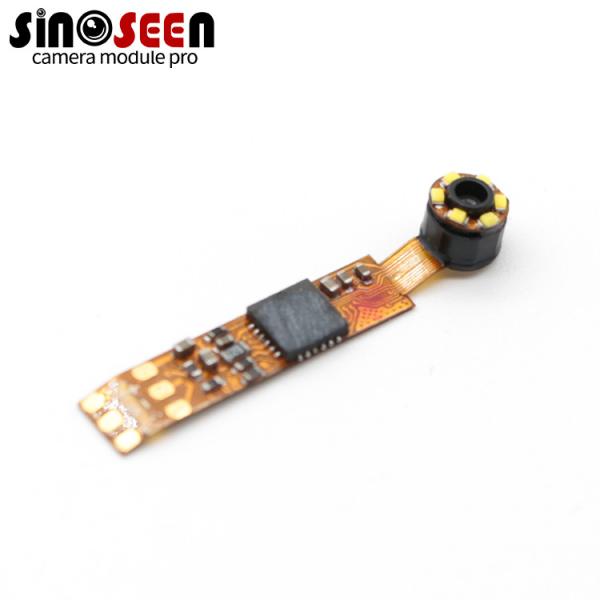

Visual Ear Picker Tiny Camera Module 1/10 Inch Flexible PCB With 6 LEDs
Visual Ear Picker Tiny Camera Module 1/10 Inch Flexible PCB With 6 LEDs
Visual Ear Picker Tiny Camera Module 1/10 Inch Flexible PCB With 6 LEDs
Visual Ear Picker Tiny Camera Module 1/10 Inch Flexible PCB With 6 LEDs
Visual Ear Picker Tiny Camera Module 1/10 Inch Flexible PCB With 6 LEDs
Visual Ear Picker Tiny Camera Module 1/10 Inch Flexible PCB With 6 LEDs
Visual Ear Picker Tiny Camera Module 1/10 Inch Flexible PCB With 6 LEDs
Visual Ear Picker Tiny Camera Module 1/10 Inch Flexible PCB With 6 LEDs
Specifications
Brand Name :
Sinoseen
Model Number :
SNS-0.3MP-GC0312-E1
Certification :
RoHS
Place of Origin :
Shenzhen,China
MOQ :
3
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3weeks
Packaging Details :
Tray+Anti-static bag in carton box
Name :
Tiny Camera Module
Sensor :
1/10" GalaxyCore GC0312
Resolution :
0.3MP 640(H) x 480(V)
Dimensions :
customizable
Lens FOV :
40°(optional)
Focus Type :
Fixed focus
Interface :
USB2.0
Feature :
Endoscope camera module
Description

Visual Ear Picker Tiny Camera Module 1/10 Inch Flexible PCB With 6 LEDs

1/10 Inch Super Tiny Flexible PCB USB Camera Module With 6 LEDs For Visual Ear Picker

Camera Module

Tiny Camera Module is one of our smallest USB camera modules, customized by the customer for his visual ear pick. The chip is GalaxyCore's GC0312, the chip size is only 1/10 inch, which makes your module can be made very small and very flexible. In addition, in order to increase the light intensity, we added a group of 6 LED lights around the lens, so that the ear pick can be seen very clearly after entering the ear.
The following is part of GC0312's datasheet for your reference:
The GC0312 features 640V x 480H resolution with 1/10-inch optical format, and 4-transistor pixel structure for high image quality and low noise variations. It delivers superior image quality by powerful on-chip design of a 10-bit ADC, and embedded image signal processor. The full scale integration of high-performance and low-power functions
makes the GC0312 best fit the design, reduce implementation process, and extend the battery life of cell phones, PDAs, and a wide variety of mobile applications. The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB(Auto White Balance) control. It provides various data formats, such as Bayer RGB, RGB565, YCbCr 4:2:2. It has a commonly used two-wire serial interface for host to control the operation of the whole sensor.

Specification

Module No

SNS-0.3MP-GC0312-E1

Pixel Size

2.25μm x 2.25μm

Effective Pixels

0.3MP 640(H) x 480(V)

Video output

Raw Bayer10bit/8bit

Active Array Size Video Rate

30FPS

Image Sensor

1/10"

Sensor Type

GalaxyCore GC0312

Lens view

FOV40°(optional),F/N(optional)

TV Distortion

<1%

AEC

Support

AEB

Support

AGC

Support

Operating voltage

AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V

Operating temperature

-20～70℃

Storage temperature

0～50℃

Dimensions

Customizable

Visual Ear Picker Tiny Camera Module 1/10 Inch Flexible PCB With 6 LEDsVisual Ear Picker Tiny Camera Module 1/10 Inch Flexible PCB With 6 LEDs

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Current available USB solution

0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)

1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)

2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)

5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)

8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)

13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)

USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268

H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
