1.5KVA 1.2KW Off Grid Hybrid Solar Energy System Pure Sine Ware Output
1.5KVA 1.2KW Off Grid Hybrid Solar Energy System Pure Sine Ware Output
Specifications
Brand Name :
LEEHO
Model Number :
LHE1524R
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000
Delivery Time :
15-20working days
Name :
Off Grid Hybrid Solar Energy System
INPUT VOLTAGE(DC) :
24V
MPPT/PWM :
PWM
MAX SOLAR CHARING CURRENT :
30A
SOLAR PANEL BRAND :
LDK
Warranty :
2 years
Description

1.5KVA 1.2KW Low Frequency Pure Sine Wave Off Gride For House Gel Battery

* Low frequency INVERTER & CONTROLLER 1.5kva 1200w 12v OFF GRIDE SYSTEM
NO. Dscreption Model Price$ Amount$
0730 * Low frequency INVERTER & CONTROLLER 1.5kva 1200w 12v PWM SET 1
0691 * SOLAR PANEl 360w 120cells mono 34v PCS 2
0668 * 12v200ah 530*248*265 pc 2
Totally 5

DETAILS:

CARGO QTY L W H CBM weight totally
CBM		 totally
weight
*Low frequency INVERTER & CONTROLLER 1.5kva 1200w 12v 1 378 317 200 0.02 10.40 0.02 10.40
*12v200ah 2 530 248 265 0.03 0.00 0.07 0.00
*SOLAR PANEl 360w 2 1650 996 35 0.06 18.00 0.12 36.00
TOTALLY: 0.21 46.40

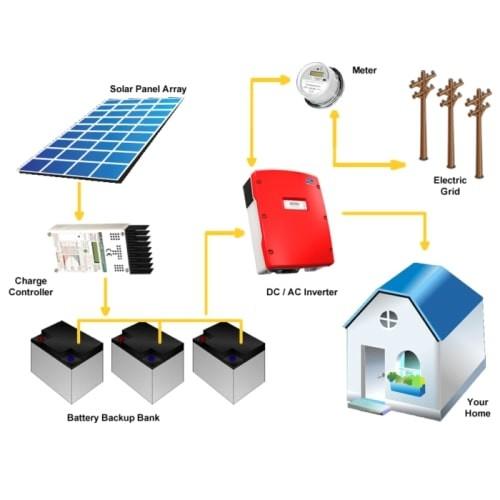

SYSTEM:

1.5KVA 1.2KW Off Grid Hybrid Solar Energy System Pure Sine Ware Output

INVERTER:

1.5KVA 1.2KW Off Grid Hybrid Solar Energy System Pure Sine Ware Output

Smart Inverter LHE series
Features:
Pure sine ware output
Powerful Charge Rate Up to 90AMP
Optional PWM solar charge controller 30A
DC Start & Automatic Self-Diagnostic Function
High Efficiency Design & ”Power Saving Mode” to Conserve Energy
Auto restart when Ac in recovering
Smart battery charger design for optimized battery performance
Selectable charging current based on applications
AC input/DC input/Solar input optional priority
Built-in Transformer
Wall-Mounted
Model LHE0512R LHE0812R LHE1012R LHE1512R LHE1524R
Capacity(VA) 500VA 800VA 1000VA 1500VA 1500VA
Input Voltage(DC) 12V 12V 12V 12V 24V
Nominal Voltage 220VAC(Standard)
Voltage Range 154-275VAC ± 5V (Normal Mode)
Frequency 50/60Hz±5%
Power Factor 0.8
Rated Power 300W 500W 800W 1200W 1200W
Output Voltage(AC) 220VAC±10%(With AVR function)
Output Frequency (AC) The output voltage frequency under AC is the same as the input frequency
Output Voltage(DC) 220VAC±3%
Output Frequency (DC) 50/60Hz±1%
Waveform Pure Sine Wave
Battery Type External lead acid battery or water battery
Battery voltage 12VDC 12VDC 12VDC 12VDC 24VDC
Battery Charging Voltage 13.75VDC 13.75VDC 13.75VDC 13.75VDC 27VDC
Maximum pv array power 12V:400W
24V:800W
PV Input Voltage Range (PWM Controller) 12V:PWM 15V-30VDC
24V:PWM 30V-60VDC
Maximum photovoltaic display open circuit voltage 12V:PWM 30VDC
24V:PWM 60VDC
Maximum solar charging current 30A
Maximum AC charging current 8A 15A 20A 30A 18A
Battery charging voltage range 154-275VAC ± 5V
Transfer Time ≤10ms load
Load peak ratio (MAX)3:1
Protections Inverter: overload protection, short circuit protection, low voltage protection, (can be with the battery anti-back plate)
LCD indicator status AC input voltage, AC input frequency, PV voltage, PV current , Output Voltage, Output Frequency, Battery voltage, Load current etc.
Audible alarm Low battery protection-continuous beeping
Low battery protection-1 second beeping
Overload-continuous beeping
Overload less than 130%-1 second beeping and shutdown the output after 30 seconds; Overload more than 150%,shutdown the output after 300ms
Malfunction-continuous beeping
Working temperature 0-40℃
Storage temperature —15℃~45℃
Relative humidity —10℃~90℃ Non condensing
Accoustic Noise(db) >55dB
Dimension(L*W*H)mm 325*263*123
Weight (kg) 6 7.5 8 9.2 9.2
Packaging Dimension(L*W*H)mm 378*317*200
PackagingWeight (kg) 6.5 8.5 9 10.5 10.5

SOLAR PANEL:


1.5KVA 1.2KW Off Grid Hybrid Solar Energy System Pure Sine Ware Output1.5KVA 1.2KW Off Grid Hybrid Solar Energy System Pure Sine Ware Output1.5KVA 1.2KW Off Grid Hybrid Solar Energy System Pure Sine Ware Output1.5KVA 1.2KW Off Grid Hybrid Solar Energy System Pure Sine Ware Output

1.5KVA 1.2KW Off Grid Hybrid Solar Energy System Pure Sine Ware Output

.

BATTERY:

Nominal Voltage 12v
Capacity(25℃) 100HR(10.8V) 200AH
5HR(10.5V) 175AH
1HR(9.60V) 125AH
Dimension Length 522 ± 2mm(20.55inch)
Width 238 ± 2mm(9.37inch)
Height 218 ± 2mm(8.58inch)
Total Height T5:238 ± 2mm(9.37inch)
T11:211 ± 2mm(8.70inch)
Approx.Weight 61Kg(134.5lbs) ± 4%
Terminal type T5/T11
Internal resistance Approx.3m Ω
(Fully charged,25℃)
Capacity affected 40℃ 102%
by temperature(10HR) 25℃ 100%
0℃ 85%
-15℃ 65%
Self-discharge 3 month Remaining Capacity:91%
6 month Remaining Capacity :82%
12 month Remaining Capacity :65%
Nominal operating 25℃ ± 3℃(77 ℉ ± 5 ℉ )
Operating temperature range Discharge -15℃~50℃(5 ℉ ~122 ℉ )
Charge -10℃~50℃(14 ℉ ~122 ℉ )
Storage -20℃~50℃(-4 ℉ ~122 ℉ )
Float charging voltage(25℃) 13.50 to 13.80V Temperature compensation:-18mV/℃
Cyclic charging voltage(25℃) 14.50 to 14.90V Temperature compensation:-30mV/℃
Maximum charging current 60A
Terminal material copper
Maximum discharge current 1600A(5 sec.)
Designed floating life(20℃) 7~10 years

Warranty
FULL SETS SYSTEM 1years
Solar

12years products on materials

25years liner power performance
Inverter 1year
GEL battery 1year
LI battery 3years
GRAPHENE battery 5years
