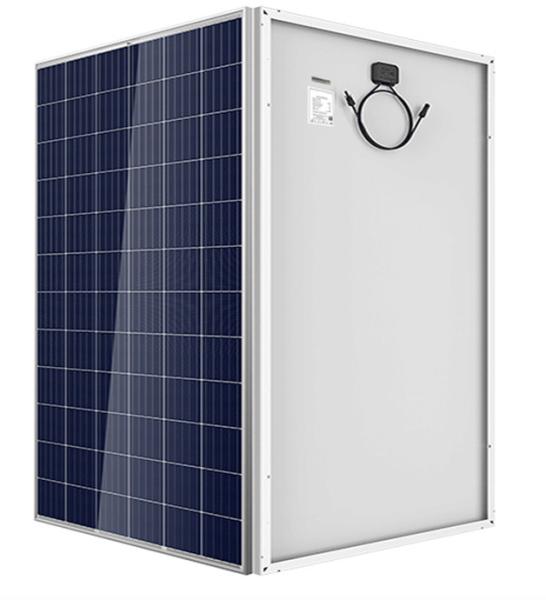

IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel
IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel
IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel
IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel
IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel
IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel
IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel
IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel
Specifications
Brand Name :
LEEHO
Model Number :
LH-60
Certification :
IEC61215/IEC61730/TUV/CQC/ISO
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000
Delivery Time :
5-8working days
Packaging Details :
pallet loading
Pmax :
340
Maximum power votage(vmp) :
33.24
maximum power urrent(imp) :
10.23
open circuit voltage(voc) :
40.32
short circuit(isc) :
10.80
cells efficient(%) :
20.67
module efficiency(%) :
18.71
cell type :
166*166 mono
No.of cells :
60(6*10)
dime sions :
1730*1050*35
weight :
19.5kgs
front glass :
3.2mm
Description

Poly Crystalline Solar Panel Polycrystalline Pv Solar Panel Polycrystalline Solar Cells

Polycrystalline solar panels are also referred to as “multi-crystalline,” or many-crystal silicon. Because there are many crystals in each cell, there is to less freedom for the electrons to move. As a result, polycrystalline solar panels have lower efficiency ratings than monocrystalline panels.

Model
LH340P-72
LH345P-72
LH350P-72
LH355P-72
LH360P-72
Rated Maximum Power at STC
340W
345W
350W
355W
360W
Open Circuit Voltage(Voc)
46.39
46.68
46.97
47.26
47.55
Maximum Power Voltage(Vmp)
37.74
38.04
38.34
38.64
38.93
Short Circuit Current(Isc)
9.48
9.55
9.62
9.69
9.76
Maximum Power Current(Imp)
9.01
9.07
9.13
9.19
9.25
Module Efficiency(%)
17.5
17.8
18.0
18.3
18.6
Standard Test Condition(STC)
Irradiance 1000w/m2, Cell Temperature 25°C, Air Mass 1.5
ELECTRICAL DATA(NMOT)
Maximum Power-PMAX (Wp)
252
256
260
264
268
Maximum Power Voltage(VMPP)
35.81
36.03
36.25
36.47
36.69
Maximum Power Current(Imp)
7.04
7.11
7.18
7.25
7.32
Open Circuit Voltage-VOC (V)
43.96
44.16
44.36
44.56
4.76
Short Circuit Current-ISC (A)
7.55
7.62
7.69
7.76
7.83
NOCT:Irradiance 800W/m2,Ambient Temperature 20°C,Wind Speed 1m/s.
Detail

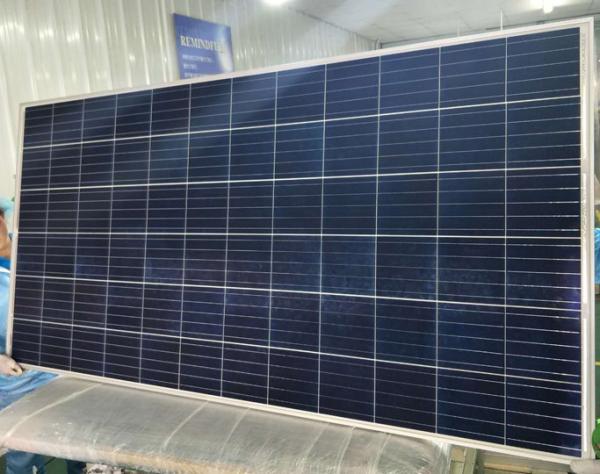

IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel

Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

Solar Cell

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

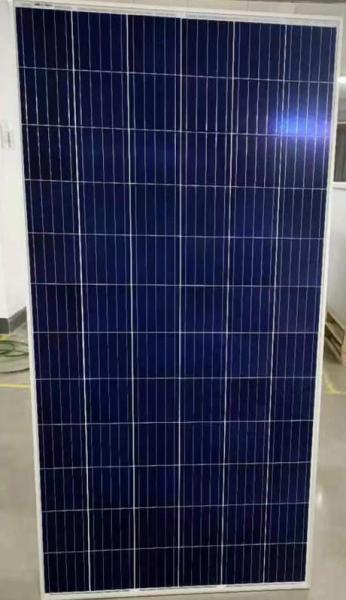

IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel

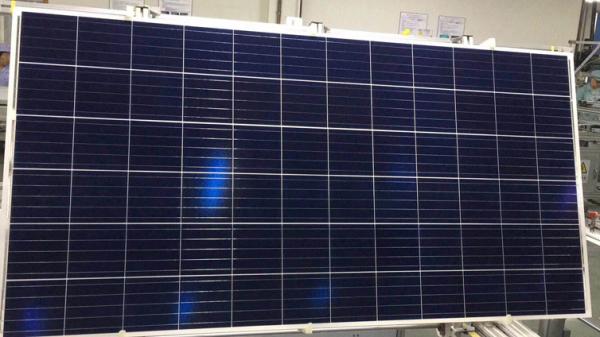

IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel

Frame

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

Junction box

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
